21199 - Toro 30" TimeMaster Walk-Behind Mower (SN: 400000000 - 402081999) HANDLE AND ELECTRICAL ASSEMBLY Parts Diagram

30" TimeMaster Walk-Behind Mower

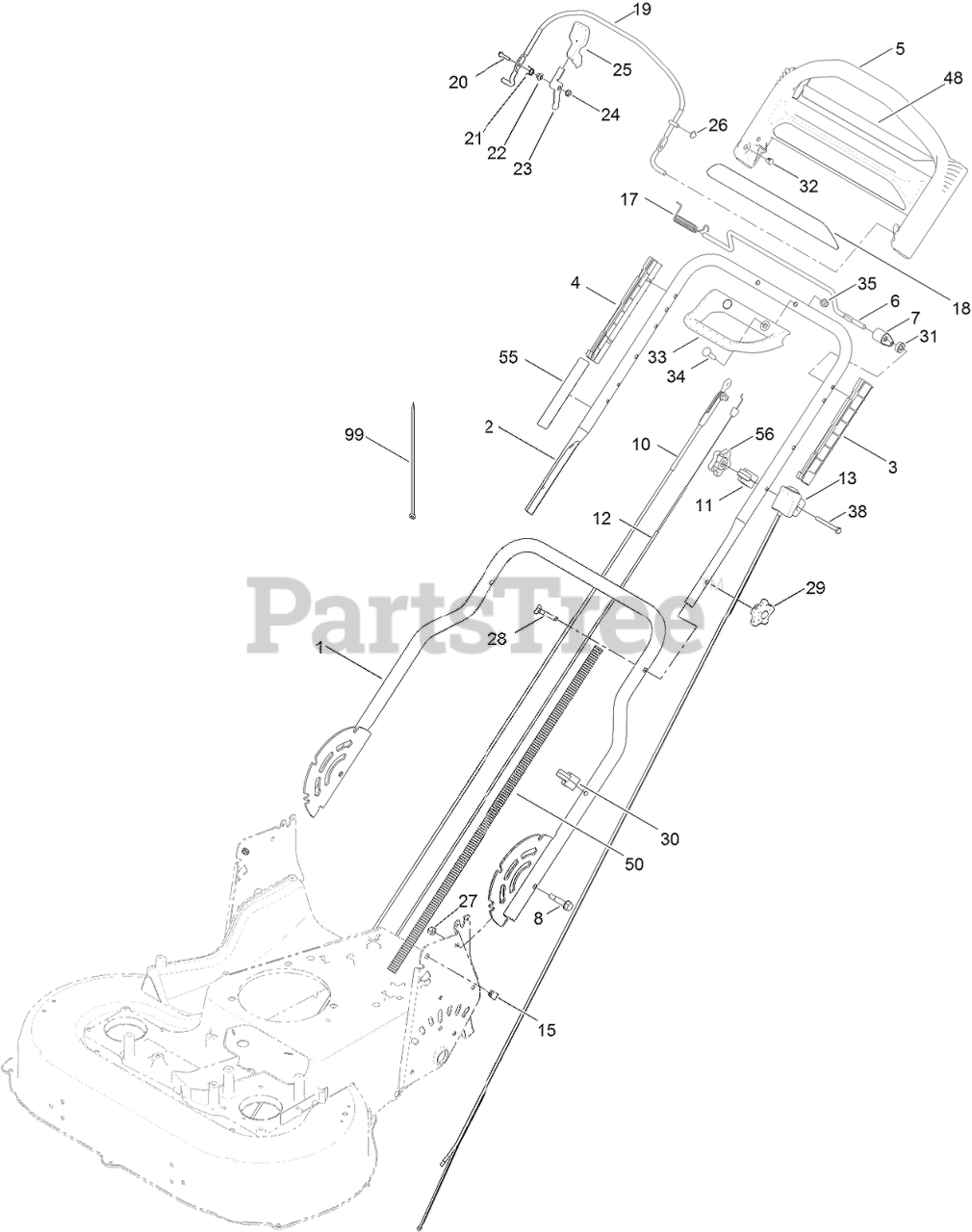

HANDLE AND ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 120-5204-05

HANDLE-LOWER

$95.99

$

In Stock, Qty 9

0

2

Toro 132-4484-05

HANDLE-UPPER

$52.99

$

In Stock, only 4 left!

0

3

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 1 left!

0

4

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, Qty 8

0

5

Toro 104-8678

HANDLE-CONTROL

$81.99

$

In Stock, only 2 left!

0

6

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$16.99

$

In Stock, Qty 7

0

7

Toro 127-6842

LEVER-TRACTION

$4.49

$

In Stock, Qty 20+

0

8

Toro 120-7025

BOLT-SHOULDER, HHF

$3.99

$

In Stock, only 1 left!

0

10

Toro 133-1998

CABLE-BRAKE

$41.99

$

In Stock, Qty 20+

0

11

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 16

0

12

Toro 127-6867

CABLE-TRACTION

$25.99

$

In Stock, Qty 20+

0

13

Toro 117-5975

SWITCH HOUSING ASM

$19.99

$

In Stock, Qty 19

0

15

Toro 132-4516

PLUG-SQUARE

$0.99

$

Usually ships in 3-6 days

0

17

Toro 121-9118

Spring-Torsion
(Superseded to 136-7166)

$2.99

$

In Stock, Qty 20+

0

18

Toro 117-1019

DECAL

$8.99

$

In Stock, only 1 left!

0

19

Toro 108-3788-03

BAIL-BRAKE

$42.99

$

In Stock, only 3 left!

0

20

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, Qty 10

0

21

Toro 107-7462

SPRING-TORSION

$8.49

$

In Stock, Qty 8

0

22

Toro 107-7463

SPACER

$5.49

$

In Stock, Qty 20+

0

23

Toro 106-6802

LEVER
(Superseded to 138-3220)

$2.99

$

In Stock, Qty 18

0

24

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 20+

0

25

Toro 112-8884

KNOB

$6.49

$

In Stock, Qty 18

0

26

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 20+

0

29

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

30

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

31

Toro 130-2343

SPACER

$1.49

$

In Stock, Qty 20+

0

32

Toro 104-9368

Plug-Dome

$0.99

$

In Stock, only 4 left!

0

33

Toro 131-0847

HANDLE-ASSIST, TRACTION

$14.99

$

In Stock, only 1 left!

0

34

Toro 99-6005

BOLT-CARRIAGE

$4.99

$

In Stock, only 2 left!

0

35

Toro 131-4535

NUT-ACORN
(Superseded to 137-4808)

$1.99

$

In Stock, Qty 20+

0

38

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 5

0

48

Toro 121-2399

DECAL-ASSIST, TRACTION

$6.99

$

Usually ships in 3-6 days

0

50

Toro 121-5801

CONDUIT-CONVOLUTED

$4.99

$

Usually ships in 3-6 days

0

55

Toro 132-4470

DECAL-TRACTION, ADJUST

$1.99

$

In Stock, only 3 left!

0

56

Toro 131-0897

KNOB-HANDLE, LOCKING

$4.49

$

In Stock, Qty 7

0

99

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0
