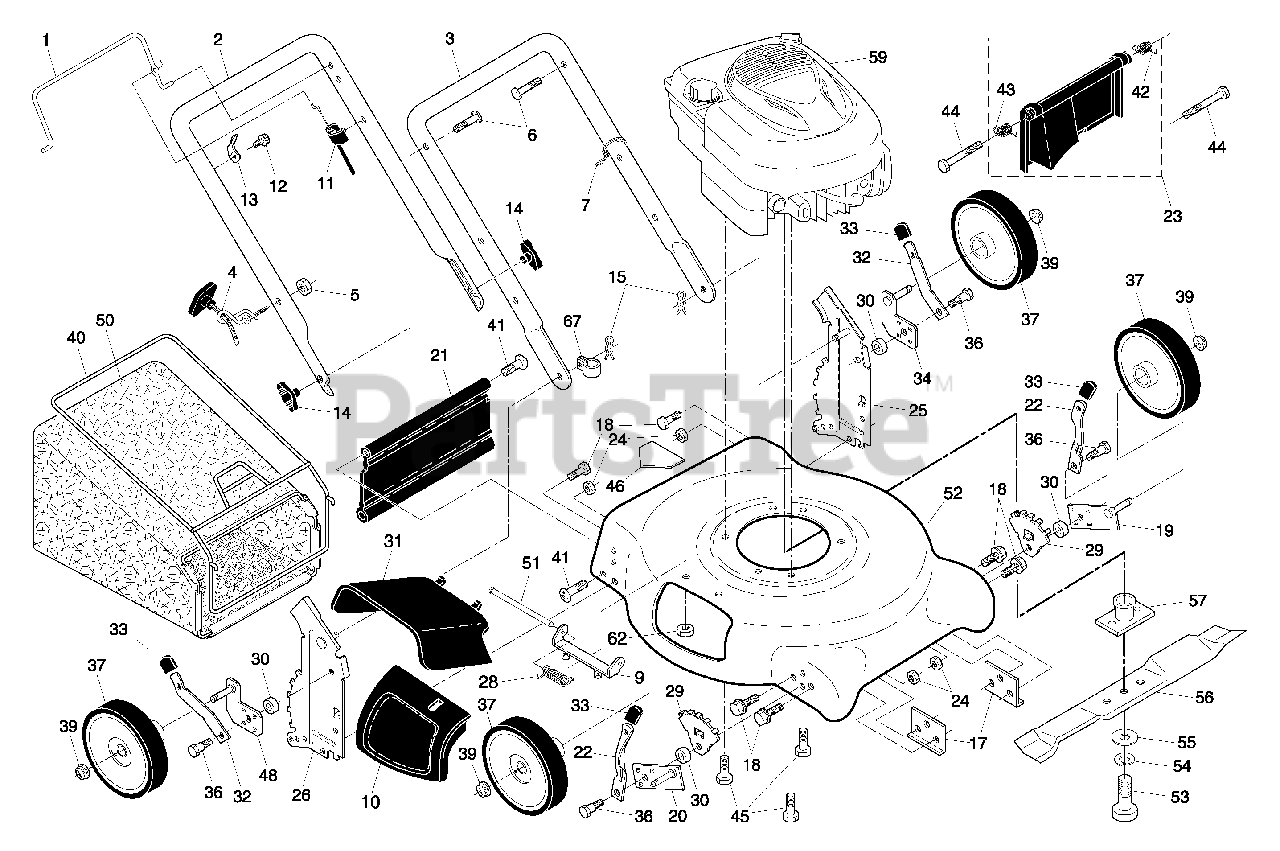

212310X83E (961370001-00) - Electrolux/AYP Walk-Behind Mower (2006) Handle & Deck Assembly Parts Diagram

Walk-Behind Mower

Handle & Deck Assembly Parts Diagram

  • Title

1

Electrolux/AYP 194177X428

Control Bar
(Superseded to 532194177)

$12.99

$

In Stock, only 4 left!

0

2

Electrolux/AYP 194179X479

Upper Handle
(Superseded to 532194179)

$27.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 169708X479

Lower Handle
(Superseded to 532174291)

$

$

Not available

4

Electrolux/AYP 194788

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 8

0

5

Electrolux/AYP 132004

Nut, Hex

$

$

Not available

6

Electrolux/AYP 191574

Handle Bolt
(Superseded to 532191574)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 66426

Wire Tie
(Superseded to 532007192)

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 154132

Hinge Bracket
(Superseded to 532154132)

$

$

Not available

10

Electrolux/AYP 165754

Mulcher Door
(Superseded to 532165754)

$9.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 183281

Cable, Engine Zone Control
(Superseded to 532183281)

$12.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 750634

Hex Washer Head Screw
(Superseded to 532750634)

$6.49

$

In Stock, Qty 6

0

13

Electrolux/AYP 86899X004

Up-Stop Bracket
(Superseded to 532430034)

$6.49

$

In Stock, Qty 8

0

14

Electrolux/AYP 189713X428

Knob, Handle
(Superseded to 532185577)

$3.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 165946X479

Support Bracket
(Superseded to 532165946)

$8.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 17600406

Screw
(Superseded to 817600406)

$6.49

$

In Stock, Qty 5

0

19

Electrolux/AYP 186577X004

Axle Arm Assembly, Front, LH
(Superseded to 532186577)

$

$

Not available

20

Electrolux/AYP 186578X004

Axle Arm Assembly, Front, RH
(Superseded to 532186578)

$

$

Not available

21

Electrolux/AYP 188987

Rear Skirt
(Superseded to 532413160)

$12.99

$

In Stock, Qty 8

0

22

Electrolux/AYP 168360X004

Selector Spring, Front
(Superseded to 532168360)

$

$

Not available

23

Electrolux/AYP 186612

Kit, Rear Door Assembly
(Superseded to 532186612)

Note: (Includes Springs)

$

$

Not available

24

Electrolux/AYP 73930500

Locknut, Hex 5/16-18
(Superseded to 873930500)

$7.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 166111X479

Handle Bracket Assembly, LH

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 166112X479

Handle Bracket Assembly, RH

$4.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 152124

Spring, Hinge
(Superseded to 532152124)

$7.49

$

In Stock, Qty 12

0

29

Electrolux/AYP 160835X007

Wheel Adjusting Bracket, Front
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 183901

Spacer
(Superseded to 532183901)

$7.49

$

In Stock, only 1 left!

0

31

Electrolux/AYP 165760

Discharge Deflector
(Superseded to 589482402)

$6.49

$

In Stock, Qty 20+

0

32

Electrolux/AYP 169421X004

Selector Spring, Rear
(Superseded to 584371801)

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 87877

Selector Knob
(Superseded to 532087877)

$6.49

$

In Stock, only 3 left!

0

34

Electrolux/AYP 186576X004

Axle Arm Assembly, Rear, LH

$

$

Not available

36

Electrolux/AYP 160828

Shoulder Bolt 5/16-18
(Superseded to 532160828)

$

$

Not available

37

Electrolux/AYP 193905X460

Wheel & Tire Assembly
(Superseded to 532442640)

$18.99

$

In Stock, Qty 6

0

39

Electrolux/AYP 83923

Flanged Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 194642

Frame, Grassbag
(Superseded to 532194642)

$

$

Not available

41

Electrolux/AYP 88652

Hinge Screw
(Superseded to 532088652)

$7.49

$

In Stock, only 4 left!

0

42

Electrolux/AYP 165766

Spring, Rear Door, LH
(Superseded to 532165766)

$7.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 165767

Spring, Rear Door, RH
(Superseded to 532165767)

$

$

Not available

44

Electrolux/AYP 184193

Bolt, Rear Door
(Superseded to 532184193)

$

$

Not available

45

Electrolux/AYP 150406

Hex Head Thread Rolling Screw 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

In Stock, Qty 10

0

46

Electrolux/AYP 107339

Danger Decal

$

$

Not available

48

Electrolux/AYP 186575X004

Axle Arm Assembly, Rear, RH

$

$

Not available

50

Electrolux/AYP 402024

Grassbag
(Superseded to 532410666)

$80.99

$

In Stock, only 1 left!

0

51

Electrolux/AYP 147286

Rod, Hinge
(Superseded to 532147286)

$8.99

$

In Stock, Qty 12

0

52

Electrolux/AYP 403749

Kit, Lawn Mower Housing

Note: (Includes Key Numbers 17, 18 and 46)

$86.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 851084

Hex Head Screw 3/8-24 x 1-3/8 Grade 8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 850263

Helical Lockwasher
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 189028

21" Blade
(Superseded to 532189028)

$14.99

$

In Stock, Qty 19

0

57

Electrolux/AYP 193707

Blade Adapter
(Superseded to 532418373)

$10.99

$

In Stock, Qty 20+

0

59

Engine, Briggs & Stratton, Model Number 122K02

Note: (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

62

Electrolux/AYP 73800400

Nut, Hex
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 197991

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 9

0

Electrolux/AYP 162300

Warning Decal
(Superseded to 532162300)

Note: (not shown)

$

$

Not available

Electrolux/AYP 193732

Operator's Manual, English

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 193734

Operator's Manual, French
(Superseded to 917193734)

$5.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 403746

Repair Parts Manual, English / French

$2.49

$

Usually ships in 3-10 days

0
