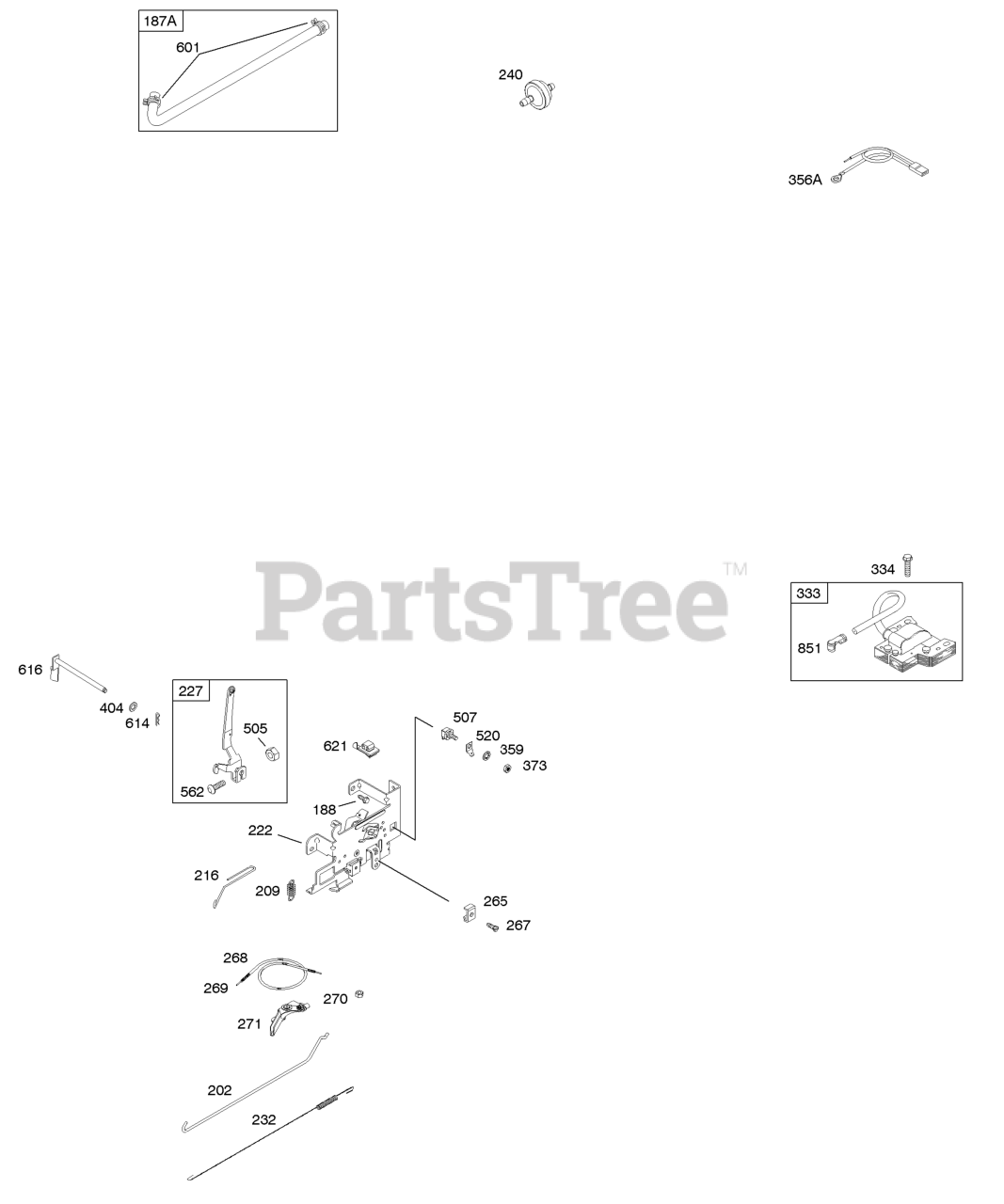

212802-0110-E1 - Briggs & Stratton Vertical Engine Controls, Ignition Parts Diagram

Vertical Engine

Controls, Ignition Parts Diagram

  • Title

187A

Briggs & Stratton 791806

Line-Fuel

Note: (Formed)(Cut To Required Length)

$59.99

$

In Stock, only 1 left!

0

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, only 2 left!

0

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$10.99

$

In Stock, Qty 5

0

209

Briggs & Stratton 691798

Spring-Governor
(Superseded to 792813)

Note: (Brown)

$7.49

$

In Stock, only 2 left!

0

216

Briggs & Stratton 691840

LINK, Choke

$9.99

$

In Stock, Qty 6

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$40.99

$

In Stock, Qty 8

0

227

Briggs & Stratton 691374

LEVER, Governor Control

$28.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$12.99

$

In Stock, Qty 16

0

240

Briggs & Stratton 298090S

Filter-Fuel

Note: (Red, 150 Microns)

$5.49

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 10

0

267

Briggs & Stratton 690804

Screw

Note: (Casing Clamp)

$

$

Not available

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 1 left!

0

271

Briggs & Stratton 691028

Lever-Control

$50.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356A

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

Note: (2 Wires, 15" And 15-11/16" Long)(Snap Connect Insulated Female BladeTerminal, Ring Terminal, And Bare Wire End)

$12.99

$

In Stock, Qty 6

0

359

Briggs & Stratton 691077

Washer

Note: (Ground Terminal)

$3.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$4.49

$

In Stock, Qty 5

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 8

0

507

Briggs & Stratton 691972

Insulator

$9.49

$

In Stock, only 4 left!

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 16

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 12

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.99

$

In Stock, only 1 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$15.99

$

In Stock, only 1 left!

0

621

Briggs & Stratton 692310

Switch-Stop

$6.49

$

In Stock, Qty 20+

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$6.49

$

In Stock, Qty 11

0
