213-406-000 - MTD Tiller (1993) Chain Case Complete Parts Diagram

Tiller

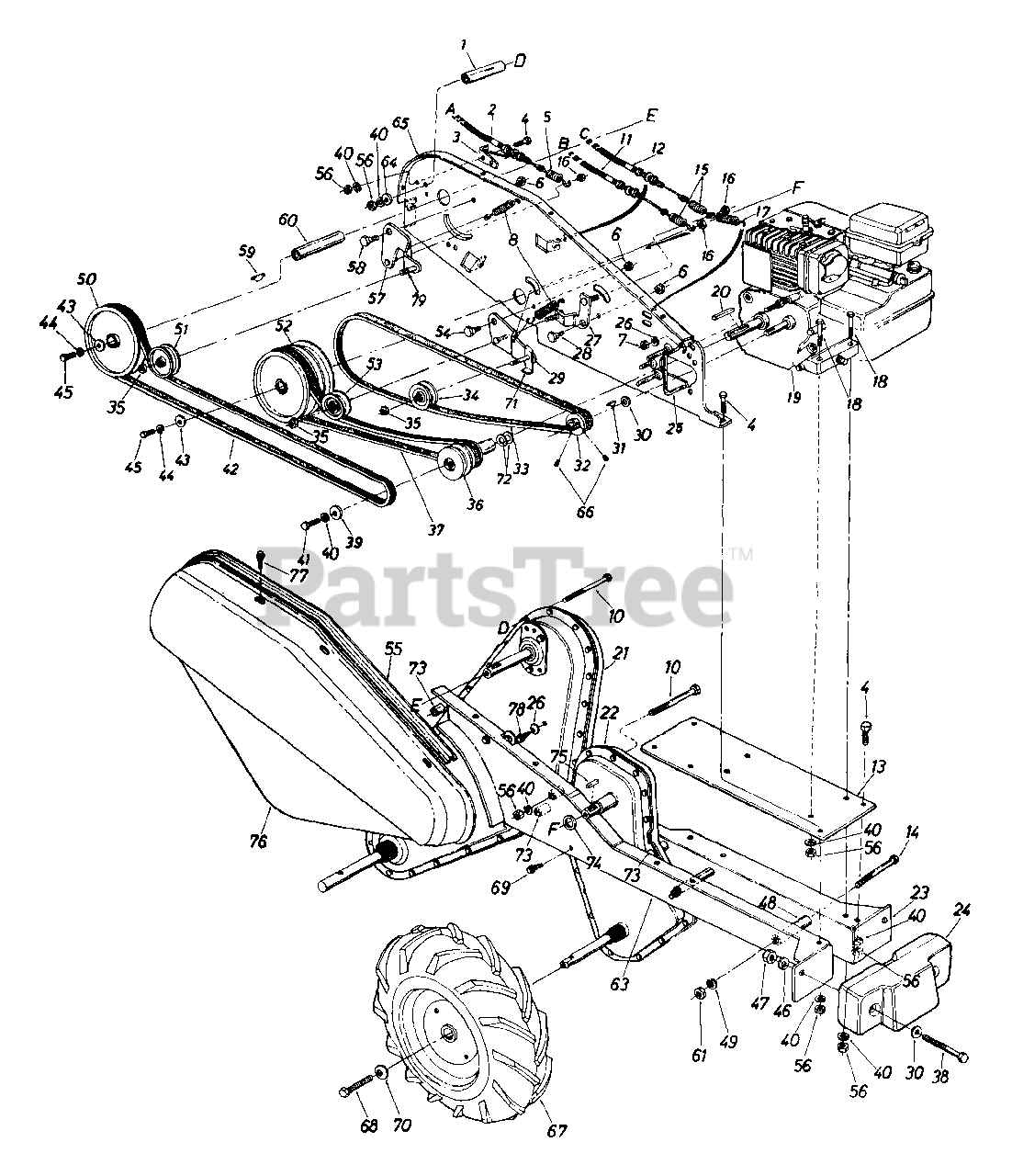

Chain Case Complete Parts Diagram

  • Title
1

MTD Part# 750-0219

Spacer .375" I.D. x .5" O.D. x 2" Lg.
Usually ships same day

Currently unavailable

$

$

2

MTD Part# 746-0535

Clutch Control Cable (Tines)
(Superseded to 946-0535)
Usually ships in 1 day

$

$48.89

0

3

MTD Part# 15093C

Clutch Cable Bracket
Usually ships same day

Not available

$

$

4

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

5

MTD Part# 732-0387

Extension Spring .50" O.D. x 2.5" Lg.
Usually ships same day

Not available

$

$

6

MTD Part# 712-0266

Hex Cent. L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)
Usually ships in 1 day

$

$2.76

0

7

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

8

MTD Part# 732-0445

Extension Spring .50" O.D. x 1.55" Lg.
Usually ships in 1 day

$

$6.07

0

10

MTD Part# 710-0189

Hex Bolt 5/16-18 x 3" Lg.
Usually ships in 5 to 10 days

$

$4.24

0

11

MTD Part# 746-0496

Clutch Control Cable 42" Lg. (Forward)
(Superseded to 946-0496)
Usually ships in 1 day

$

$57.40

0

12

MTD Part# 746-0571

Clutch Control Cable 42" Lg. (Reverse)
(Superseded to 946-0571)
Usually ships in 1 day

$

$48.65

0

13

MTD Part# 14973

Engine Mounting Plate

Variations

MTD Part# 14973-0637

No Longer Available PLATE-MTG- - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

14

MTD Part# 710-0830

Hex Bolt 3/8-24 x 3" Lg.
Usually ships same day

Not available

$

$

15

Part#

Springs

Note: (Part of Ref. No. 11 and 12)

Usually ships same day

Not available

$

$

16

MTD Part# 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)
Usually ships in 1 day

$

$3.26

0

17

MTD Part# 732-0486

Extension Spring .41" O.D. x 2.05" Lg.
Usually ships same day

Not available

$

$

18

MTD Part# 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)
Usually ships in 1 day

$

$3.00

0

19

Part#

Engine
Usually ships same day

Not available

$

$

20

MTD Part# 714-0105

Sq. Key 3/16 x 1.00" Lg.
(Superseded to 914-0105)
Usually ships in 1 day

$

$2.58

0

21

MTD Part# 784-0106

Chain Case Comp.- Tines
Usually ships same day

Not available

$

$

22

MTD Part# 784-0104A

Chain Case Comp.- Wheels
Usually ships same day

Currently unavailable

$

$

23

MTD Part# 14975

Frame Rail - L.H.

Variations

MTD Part# 14975-0637

No Longer Available RAIL-FRAME - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

24

MTD Part# 723-0340

Counterweight 35#
Usually ships same day

Not available

$

$

25

MTD Part# 747-0507

Belt Keeper
Usually ships same day

Currently unavailable

$

$

26

MTD Part# 736-0270

Bell-Wash..265" I.D. x .75" O.D.
Usually ships in 5 to 10 days

$

$2.87

0

27

MTD Part# 784-0131

Idler Brkt. Ass'y. (Wheel Reverse)

Variations

MTD Part# 784-0131-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

28

MTD Part# 738-0147

Shld. Bolt .500" Dia. x .170
Usually ships same day

Not available

$

$

29

MTD Part# 14969

Idler Brkt. Ass'y.(Wheel Forward)
Usually ships same day

Not available

$

$

30

MTD Part# 736-0326

Fl-Wash..51" I.D. x 1.0"
(Superseded to 936-0326)
Usually ships in 5 to 10 days

$

$3.11

0

31

MTD Part# 714-0131

#5 Hi-Pro-Key 1/8" x 5/8" Dia.
Usually ships same day

Not available

$

$

32

MTD Part# 756-0386A

1/2" V-Pulley 2.25" O.D. x .503" I.D.
Usually ships same day

Not available

$

$

33

MTD Part# 754-0109

"V"-Belt
(Superseded to 954-0109)
Usually ships in 1 day

$

$35.66

0

34

MTD Part# 756-0166

"V"-Belt Idler 2.62" O.D.
(Superseded to 756-1035A)
Usually ships in 1 day

$

$24.34

0

35

MTD Part# 712-0116

Hex ins. L-Nut 3/8-24 Thd.
(Superseded to 912-0116)
Usually ships same day

Not available

$

$

36

MTD Part# 756-0465

1/2" "V"-Pulley Ass'y.
Usually ships same day

Not available

$

$

37

MTD Part# 754-0190

"Y"-Belt
(Superseded to 954-0190)
Usually ships in 1 day

$

$27.82

0

38

MTD Part# 710-0786

Hex Bolt 1/2-13 x 4" Lg.
Usually ships in 5 to 10 days

$

$11.90

0

39

MTD Part# 736-0231

Fl-Wash..344" I.D. x 1.125"
(Superseded to 936-0231)
Usually ships in 5 to 10 days

$

$3.23

0

40

MTD Part# 736-0119

L-Wash. 5/16" I.D."
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

41

MTD Part# 710-0117

Hex Bolt 5/16-24 x 1.00" Lg.
(Superseded to 710-0888)
Usually ships in 1 day

$

$3.06

0

42

MTD Part# 754-0195A

"V"-Belt
(Superseded to 954-0195A)
Usually ships in 1 day

$

$46.08

0

43

MTD Part# 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.
(Superseded to 936-0176)
Usually ships in 1 day

$

$3.18

0

44

MTD Part# 736-0329

L-Wash 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

45

MTD Part# 710-0412

Hex Bolt 1/4-28 x 75" Lg.
Usually ships in 1 day

$

$3.97

0

46

MTD Part# 736-0921

L-Wash. 1/2" I D.
(Superseded to 936-0921)
Usually ships in 5 to 10 days

$

$3.11

0

47

MTD Part# 712-0206

Hex Nut 1/2-13 Thd."
(Superseded to 912-0206)
Usually ships in 1 day

$

$3.11

0

48

MTD Part# 750-0579

Spacer .38" I.D x .62" O D. x 2.18" Lg.
Usually ships same day

Currently unavailable

$

$

49

MTD Part# 736-0169

L-Wash 3/8" I.D."
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

50

MTD Part# 756-0389A

Fl-Pulley w/Flanges 6" O.D.
Usually ships same day

Not available

$

$

51

MTD Part# 756-0405

Fl-idler w/Flanges 3.75" O.D.
Usually ships in 1 day

$

$53.07

0

52

MTD Part# 756-0464

Double Fl-Pulley 5/8" I.D.
Usually ships same day

Not available

$

$

53

MTD Part# 756-0313

Fl-Idler w/Flanges 2.12" O.D
Usually ships in 1 day

$

$19.43

0

54

MTD Part# 738-0147

Shld. Bolt .500" Dia. x 170" Lg.
Usually ships same day

Not available

$

$

55

MTD Part# 784-0140

Flange Extension
Usually ships same day

Not available

$

$

56

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

57

MTD Part# 784-0129

Idler 8rkt. Ass'y.- Tines

Variations

MTD Part# 784-0129-0637

No Longer Available BRKT ASM- - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

58

MTD Part# 738-0183

Shld. Bolt..500" Dia. x .215" Lg.
(Superseded to 938-0183)
Usually ships same day

Not available

$

$

59

MTD Part# 714-0388

#61 Hi-Pro-Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)
Usually ships in 1 day

$

$5.42

0

60

MTD Part# 750-0551

Spacer .647" I.D. x 2.75" Lg.
Usually ships same day

Not available

$

$

61

MTD Part# 712-0241

Hex Nut 3/8-24 Thd.
Usually ships in 1 day

$

$3.10

0

63

MTD Part# 14974

Frame Rail - R.H.

Variations

MTD Part# 14974-0637

No Longer Available RAIL-FRAME - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

64

MTD Part# 736-0185

Fl-Wash..406" I.D. x.75"
(Superseded to 936-0185)
Usually ships in 1 day

$

$2.76

0

65

MTD Part# 784-0137

Side Plate Ass'y.
Usually ships same day

Not available

$

$

66

MTD Part# 710-0938

Set Scr. 1/4-28 x .25" Lg.
Usually ships same day

Not available

$

$

67

MTD Part# 734-1378

R.H. Wheel Ass'y. Comp. 13 x 5
Usually ships same day

Currently unavailable

$

$

MTD Part# 734-1377

L.H. Wheel Ass'y. Comp. 13 x 5
Usually ships same day

Not available

$

$

MTD Part# 734-1154

Tire Only

Variations

MTD Part# 734-1154-0901

TIRE-13X5.0-6 - Carlisle (0901)
Usually ships same day

Not available

$

$

MTD Part# 734-1154-0902

TIRE-13X5.0-6 - Dico (0902)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

Usually ships same day

Currently unavailable

$

$

MTD Part# 734-0255

Air Valve
(Superseded to 934-0255)
Usually ships in 1 day

$

$3.10

0

68

MTD Part# 710-0237

Hex Bolt 5/16-24 x .62" Lg.
Usually ships in 1 day

$

$3.15

0

69

MTD Part# 710-0600

Hex Self-Tap Scr. 5/16-24 x .5" Lg.
Usually ships in 1 day

$

$2.53

0

70

MTD Part# 736-0242

Bell-Wash. 5/16" I.D.
Usually ships in 1 day

$

$3.00

0

71

MTD Part# 15399

Belt Keeper Brkt.
Usually ships same day

Not available

$

$

72

MTD Part# 736-0351

Fl-Wash..76" I.D. x 1.5"
(Superseded to 936-0351)
Usually ships in 5 to 10 days

$

$3.12

0

73

MTD Part# 750-0470

Spacer .326" I.D. x.47" O.D. x .96" Lg.
Usually ships in 5 to 10 days

$

$4.81

0

74

MTD Part# 736-0256

Fl-Wash..635" I.D. x 1" O.D.
(Superseded to 936-0256)
Usually ships in 1 day

$

$5.02

0

75

MTD Part# 714-0122

Sq. Key 3/16 x .75" Lg.
(Superseded to 914-0122)
Usually ships in 5 to 10 days

$

$2.47

0

76

MTD Part# 14980A

Belt Cover

Variations

MTD Part# 14980A-0498

No Longer Available COVER-BELT - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 14980A-0637

No Longer Available COVER-BELT - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 14980A-0638

No Longer Available COVER-BELT - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

MTD Part# 14980A-0662

No Longer Available COVER-BELT - OYSTER GRAY (0662)
Usually ships same day

Not available

$

$

MTD Part# 14980A-0665

No Longer Available COVER-BELT - YARDMAN GREEN (0665)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

77

MTD Part# 710-0599

Hex Self-Tap Scr. 1/4-20 x .5" Lg.
Usually ships in 1 day

$

$3.06

0

78

MTD Part# 710-0653

Hex Wash. S-Tap Scr. 1/4-20 x .38" Lg.
Usually ships in 1 day

$

$3.03

0

79

MTD Part# 710-0191

Hex Bolt 3/8-24 x 1.25" Lg."
Usually ships in 1 day

$

$3.23

0
