2130 (135-212F100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Engine Mounting and Muffler Parts Diagram

Garden Tractor

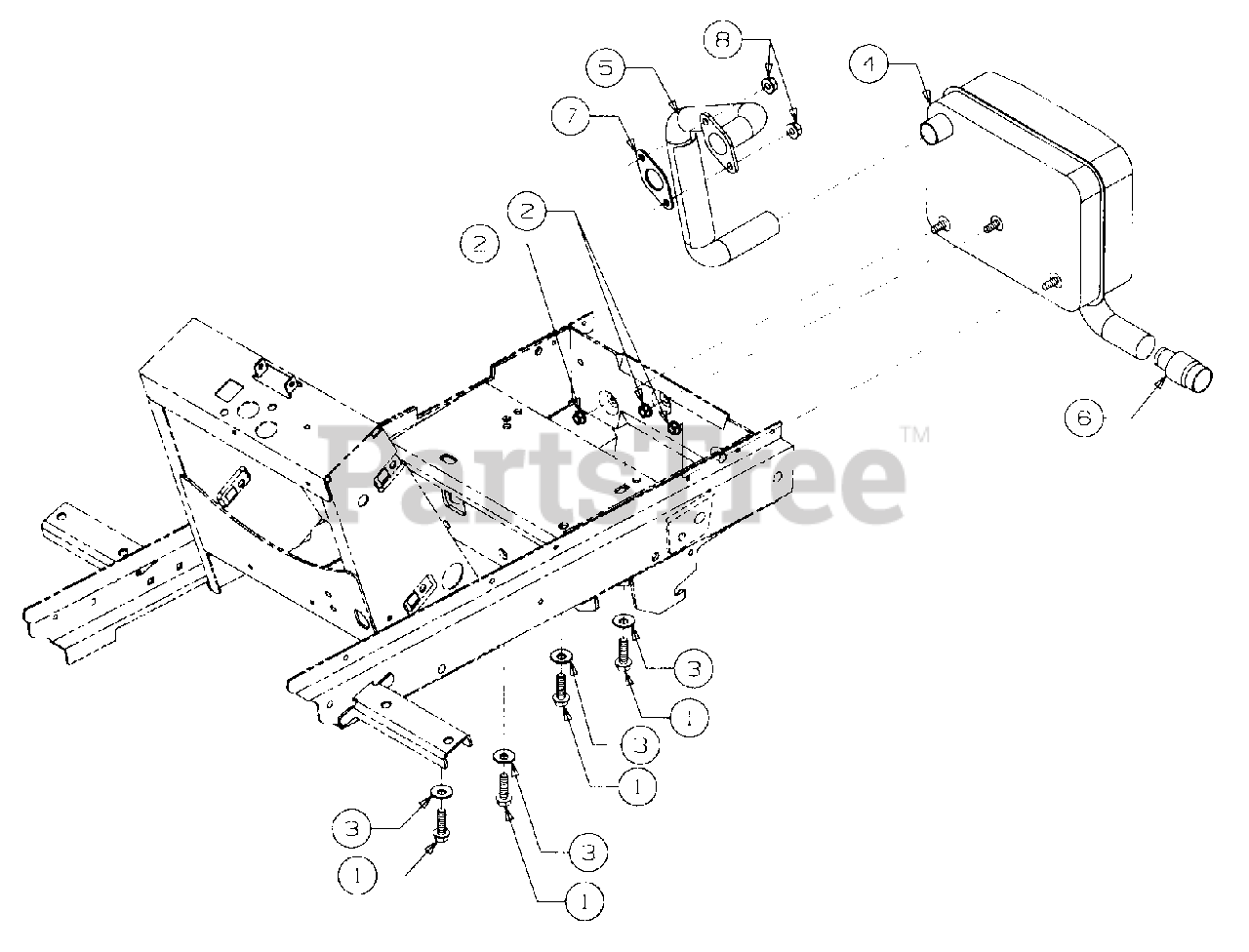

Engine Mounting and Muffler Parts Diagram

  • Title

1

Cub Cadet 710-3290

Bolt, Engine Mtg, 3/8-16 x 1.25 Lg

$4.49

$

In Stock, only 1 left!

0

2

Cub Cadet 712-3004A

Nut, Hex Flange Top Lock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0105

Washer, Bell, .380 x .88 x .062 Thk

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 951-3001

Muffler Assembly
(Superseded to 951-3001P)

Note: (Refer to Service Advisory SBCC-394 Muffler & Exhaust Pipe)

$407.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 751-3120

Tube, Exhaust

$

$

Not available

6

Cub Cadet 759-3744

Arrestor, Spark
(Superseded to 951-0544)

$

$

Not available

7

Cub Cadet KH-12-041-03

Gasket, Exhaust

$

$

Not available

8

Cub Cadet KH-M-0841080

Nut, Hex Flange
(Superseded to 712-3086)

$4.49

$

In Stock, Qty 20+

0
