2130 - Green Machine String Trimmer Deflector Parts Diagram

String Trimmer

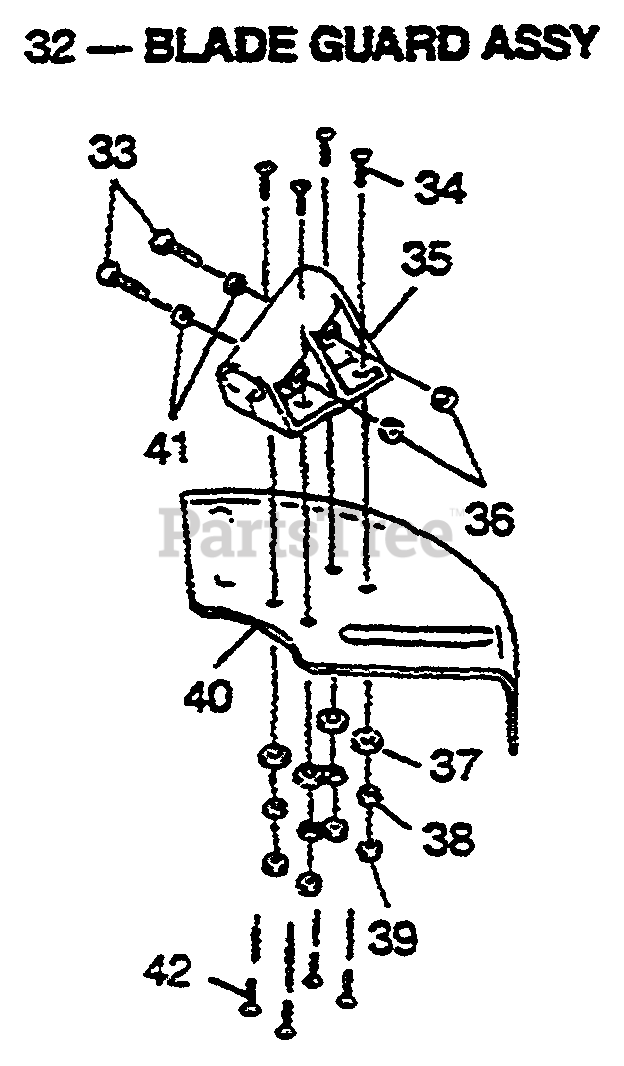

Deflector Parts Diagram

  • Title

32

Homelite GM24700

BLADE GUARD ASSY
(Superseded to GM24700A)

Note: Includes ref Nos 33, 35, 36, & 40 thru 42

$

$

Not available

33

Homelite GM011417

SCREW

$

$

Not available

34

Homelite GM011418

SCREW

Note: REPLACEMENT PART FOR UNITS PRIOR TO NOV. 1988.

$

$

Not available

35

Homelite GM245201

BRACKET, BLADE GUARD

$

$

Not available

36

Homelite GM051012

NUT

$

$

Currently unavailable

37

Homelite GM041004

WASHER

Note: REPLACEMENT PART FOR UNITS PRIOR TO NOV. 1988.

$

$

Not available

38

Homelite GM041101

WASHER

Note: REPLACEMENT PART FOR UNITS PRIOR TO NOV. 1988.

$

$

Not available

39

Homelite GM051002

NUT
(Superseded to UP03400)

Note: REPLACEMENT PART FOR UNITS PRIOR TO NOV. 1988.

$

$

Not available

40

Homelite GM247001

GUARD
(Superseded to GM24700A)

$

$

Not available

41

Homelite GM040002

WASHER

$

$

Not available

42

Homelite GM011423

SCREW
(Superseded to UP06817)

$

$

Not available
