2130 - Green Machine String Trimmer Starter Parts Diagram

String Trimmer

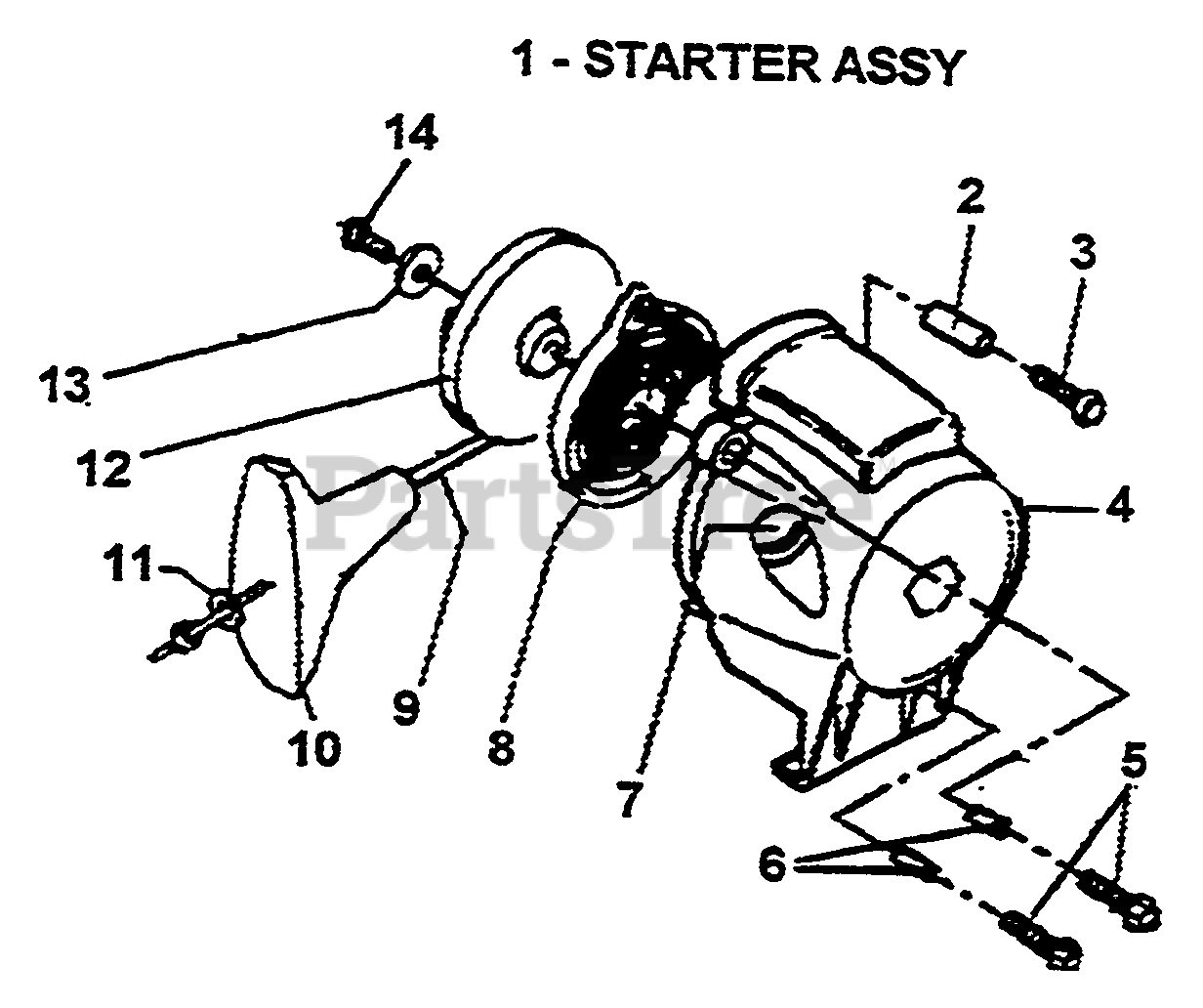

Starter Parts Diagram

  • Title

1

Homelite GM190307

STARTER ASSY

Note: Includes ref 2 Thru 14

$

$

Currently unavailable

2

Homelite GM196710

SPACER

$

$

Currently unavailable

3

Homelite GM010122

SCREW

$

$

Currently unavailable

4

Homelite GM197301

HOUSING, STARTER

$48.99

$

Usually ships in 3-7 days

0

5

Homelite GM010123

SCREW

$

$

Currently unavailable

6

Homelite GM196711

SPACER

$

$

Currently unavailable

7

Homelite GM197305

GUIDE, ROPE

$

$

Currently unavailable

8

Homelite GM197304

SPRING

$

$

Currently unavailable

9

Homelite GM197303

ROPE

$

$

Currently unavailable

10

Homelite GM195506

HANDLE

$

$

Currently unavailable

11

Homelite GM040114

WASHER

$

$

Currently unavailable

12

Homelite GM197302

ROPE & DRUM ASSY

Note: Includes only ref No. 9

$

$

Currently unavailable

13

Homelite GM040113

WASHER

$

$

Currently unavailable

14

Homelite GM011425

SCREW

$

$

Currently unavailable
