21311 - Toro 21" Recycler Walk-Behind Mower (SN: 400000000 - 414999999) Housing Assembly Parts Diagram

21" Recycler Walk-Behind Mower

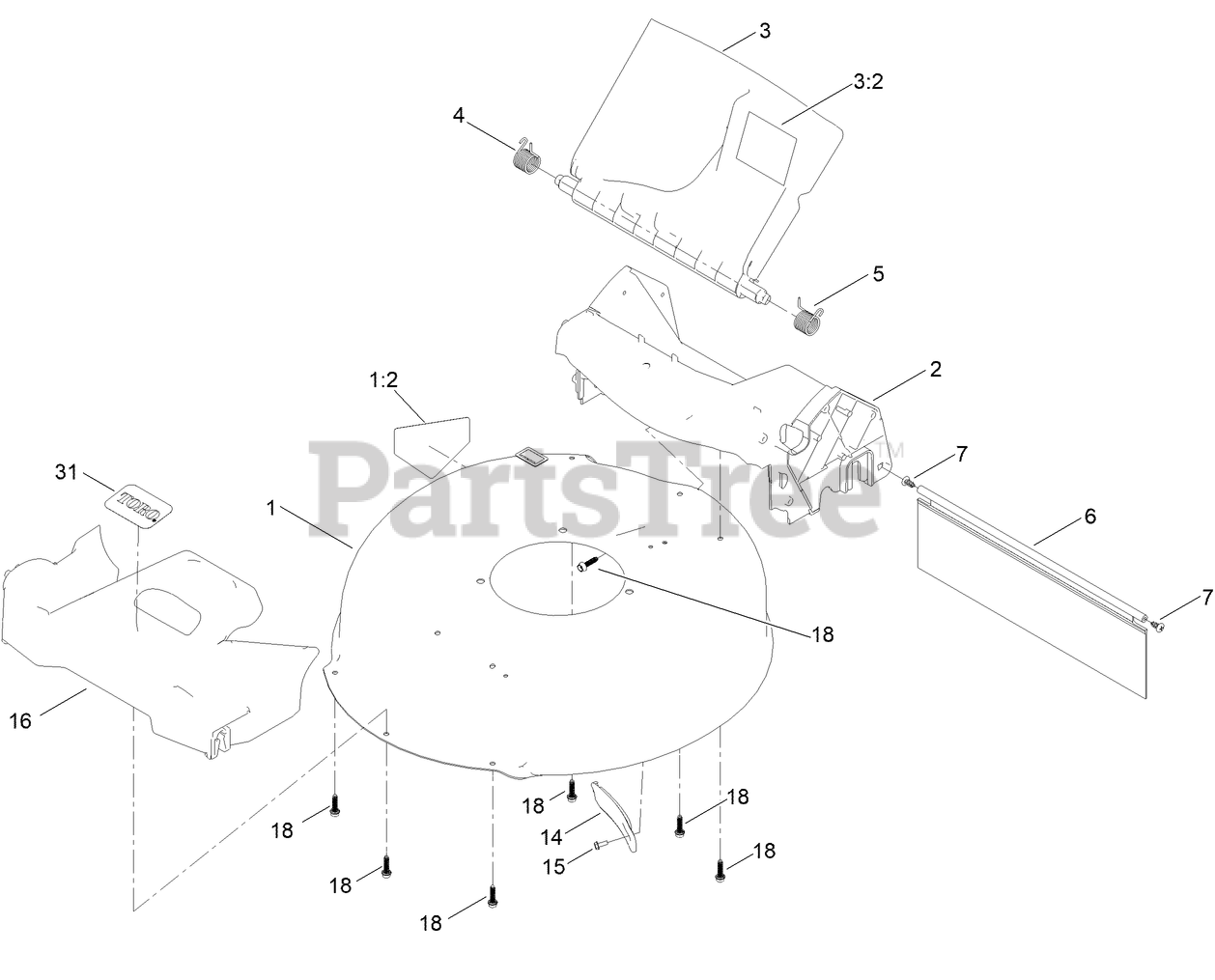

Housing Assembly Parts Diagram

  • Title

1

Toro 147-8621

HOUSING ASM

$199.99

$

Usually ships in 0 days

0

1:2

Toro 94-8072

DECAL-DANGER

$6.99

$

In Stock, only 1 left!

0

2

Toro 145-5506

CHUTE-SP/AWD, 21 IN

$28.99

$

Usually ships in 3-6 days

0

3

Toro 145-5511

DEFLECTOR-REAR ASM

$26.99

$

Usually ships in 3-6 days

0

3:2

Toro 117-4143

DECAL-WARNING

$6.49

$

Usually ships in 3-6 days

0

4

Toro 147-0465

SPRING-TORSION

$2.99

$

Usually ships in 3-6 days

0

5

Toro 147-0466

SPRING-TORSION

$2.99

$

Usually ships in 3-6 days

0

6

Toro 147-0443

SHIELD-TRAILING

$15.99

$

In Stock, Qty 11

0

7

Toro 117-1092

SCREW-PTH
(Superseded to 139-1692)

$0.99

$

In Stock, Qty 20+

0

14

Toro 132-4518

COVER-BELT

$2.99

$

Usually ships in 3-6 days

0

15

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

16

Toro 145-5518

BUMPER

$27.99

$

In Stock, Qty 6

0

18

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 16

0

31

Toro 145-0854

DECAL-TORO, SILVER

$4.49

$

Usually ships in 0 days

0
