21319 - Toro 21" Recycler Walk-Behind Mower (SN: 400000000 - 999999999) REAR WHEEL ASSEMBLY Parts Diagram

21" Recycler Walk-Behind Mower

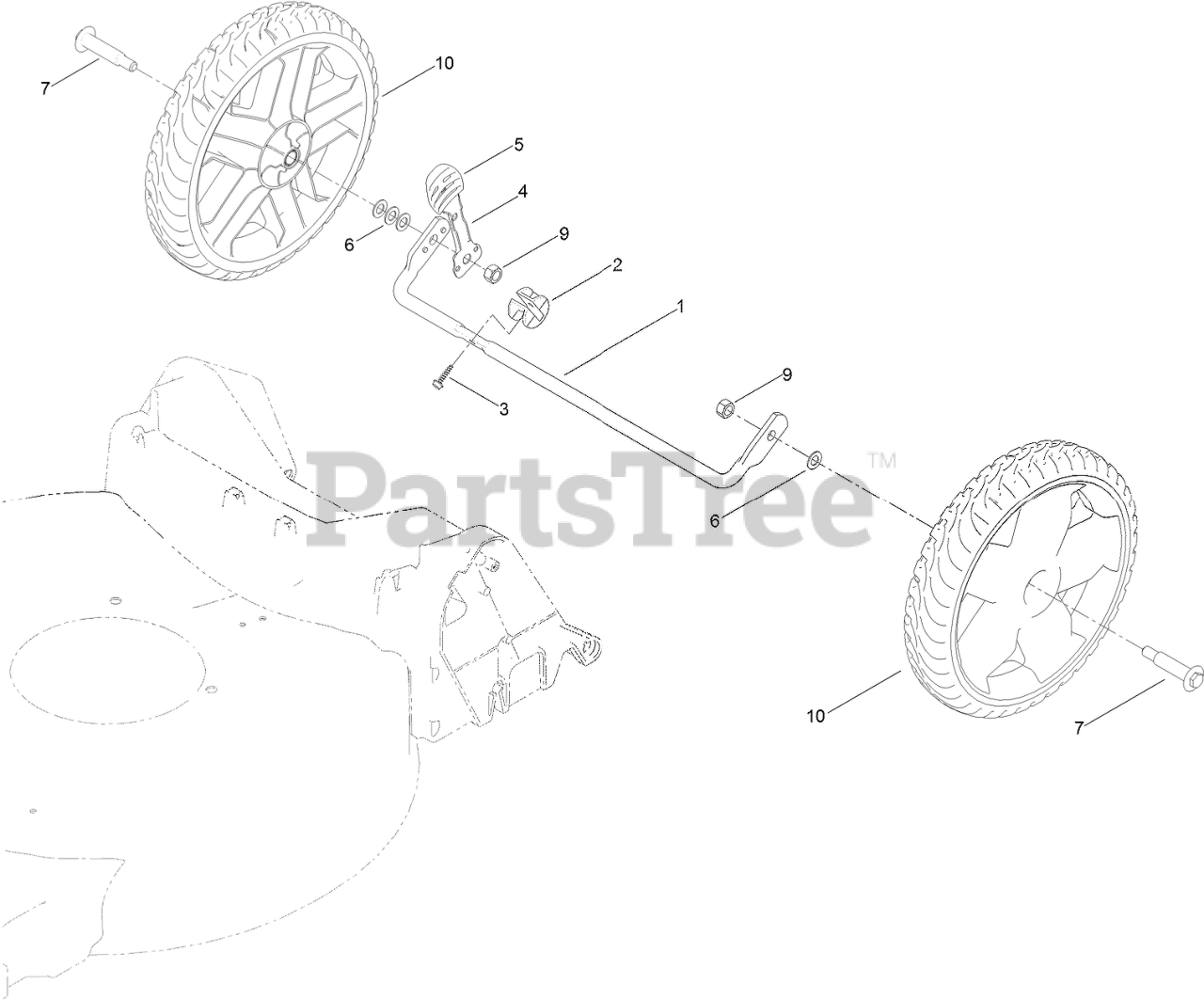

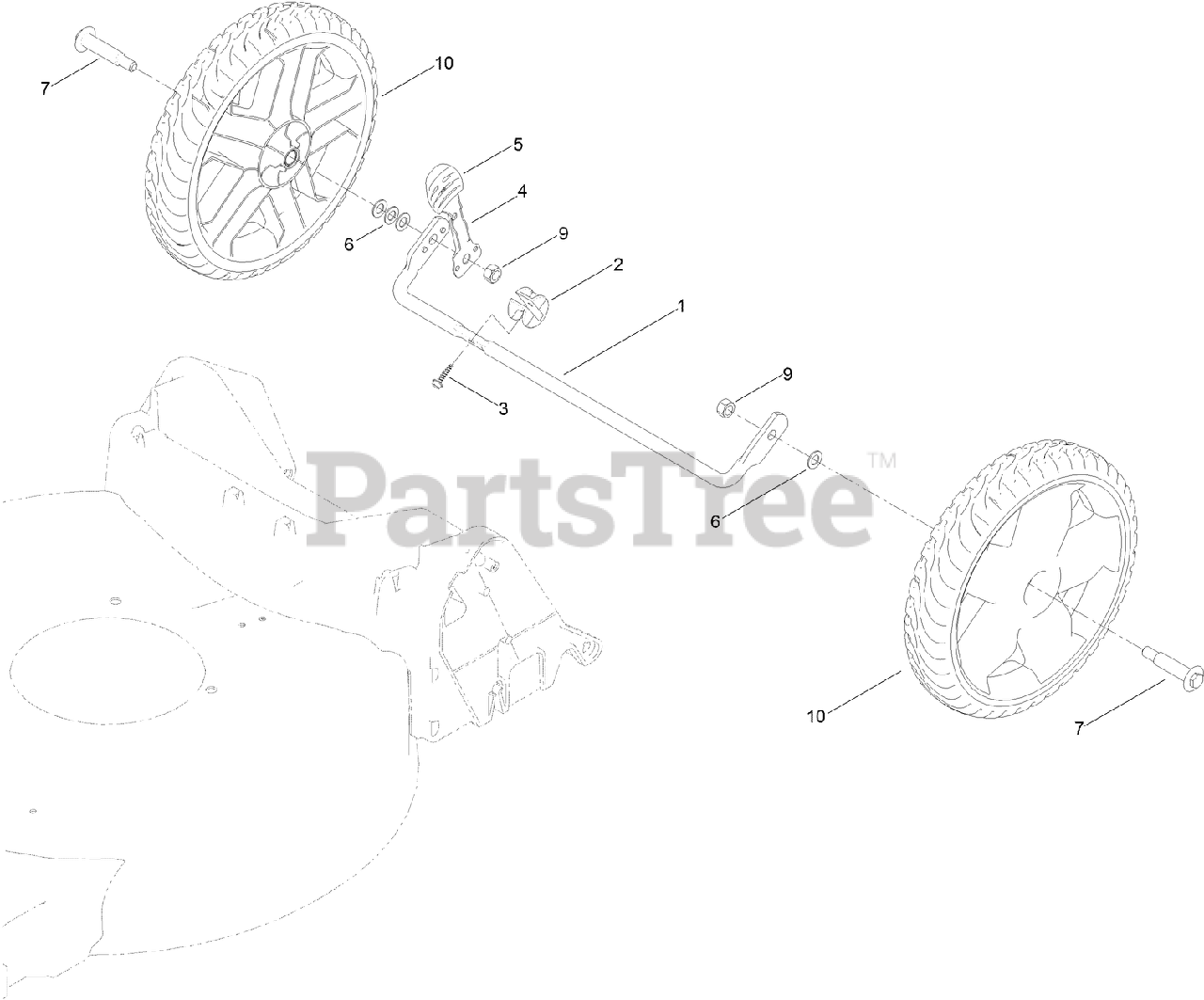

REAR WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 127-0669-03

AXLE-REAR

$15.99

$

Usually ships in 3-6 days

0

2

Toro 127-6800

STOP-AXLE

$1.49

$

In Stock, Qty 19

0

3

Toro 127-6831

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

4

Toro 127-0697

ARM-SPRING, REAR

$6.99

$

In Stock, Qty 19

0

5

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, Qty 20+

0

6

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

7

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 13

0

9

Toro 125-5069

NUT-HEX
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

10

Toro 119-0313

11 INCH WHEEL ASM
(Superseded to 137-4837)

$36.99

$

In Stock, Qty 20+

0
