21326 - Toro 21" Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 400000000 - 999999999) Housing Assembly Parts Diagram

21" Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

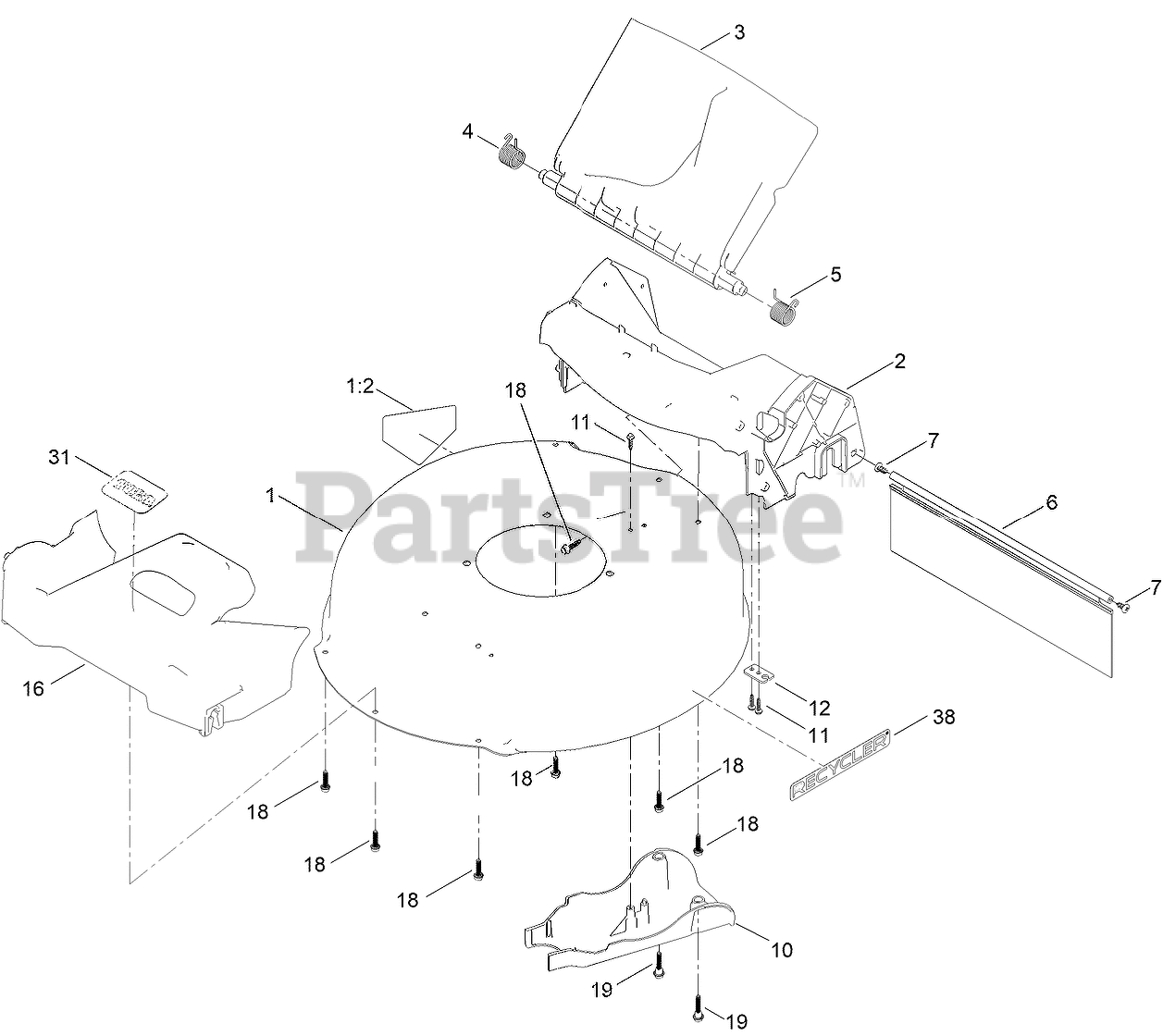

Housing Assembly Parts Diagram

  • Title

1

Toro 147-8621

HOUSING ASM

$199.99

$

Usually ships in 0 days

0

1:2

Toro 94-8072

DECAL-DANGER

$6.99

$

In Stock, only 1 left!

0

2

Toro 145-5506

CHUTE-SP/AWD, 21 IN

$28.99

$

Usually ships in 3-6 days

0

3

Toro 145-5517

DEFLECTOR-REAR ASM

$26.99

$

Usually ships in 0 days

0

4

Toro 147-0465

SPRING-TORSION

$2.99

$

Usually ships in 3-6 days

0

5

Toro 147-0466

SPRING-TORSION

$2.99

$

Usually ships in 3-6 days

0

6

Toro 147-0443

SHIELD-TRAILING

$15.99

$

In Stock, Qty 9

0

7

Toro 117-1092

SCREW-PTH
(Superseded to 139-1692)

$0.99

$

In Stock, Qty 20+

0

10

Toro 127-0723

COVER-BELT

$12.99

$

In Stock, Qty 5

0

11

Toro 127-6831

SCREW-HWH

$0.99

$

In Stock, Qty 6

0

12

Toro 127-0730

BRACKET-CABLE

$1.49

$

In Stock, Qty 8

0

16

Toro 145-5518

BUMPER

$27.99

$

In Stock, only 4 left!

0

18

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 16

0

19

Toro 131-0837

SCREW-SHOULDER, HHF

$1.99

$

In Stock, Qty 20+

0

31

Toro 145-0854

DECAL-TORO, SILVER

$4.49

$

Usually ships in 0 days

0

38

Toro 140-4184

DECAL

$3.99

$

Usually ships in 3-6 days

0
