21329 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 403900000 - 404319999) Handle Assembly Parts Diagram

22" Recycler Walk-Behind Mower with SmartStow

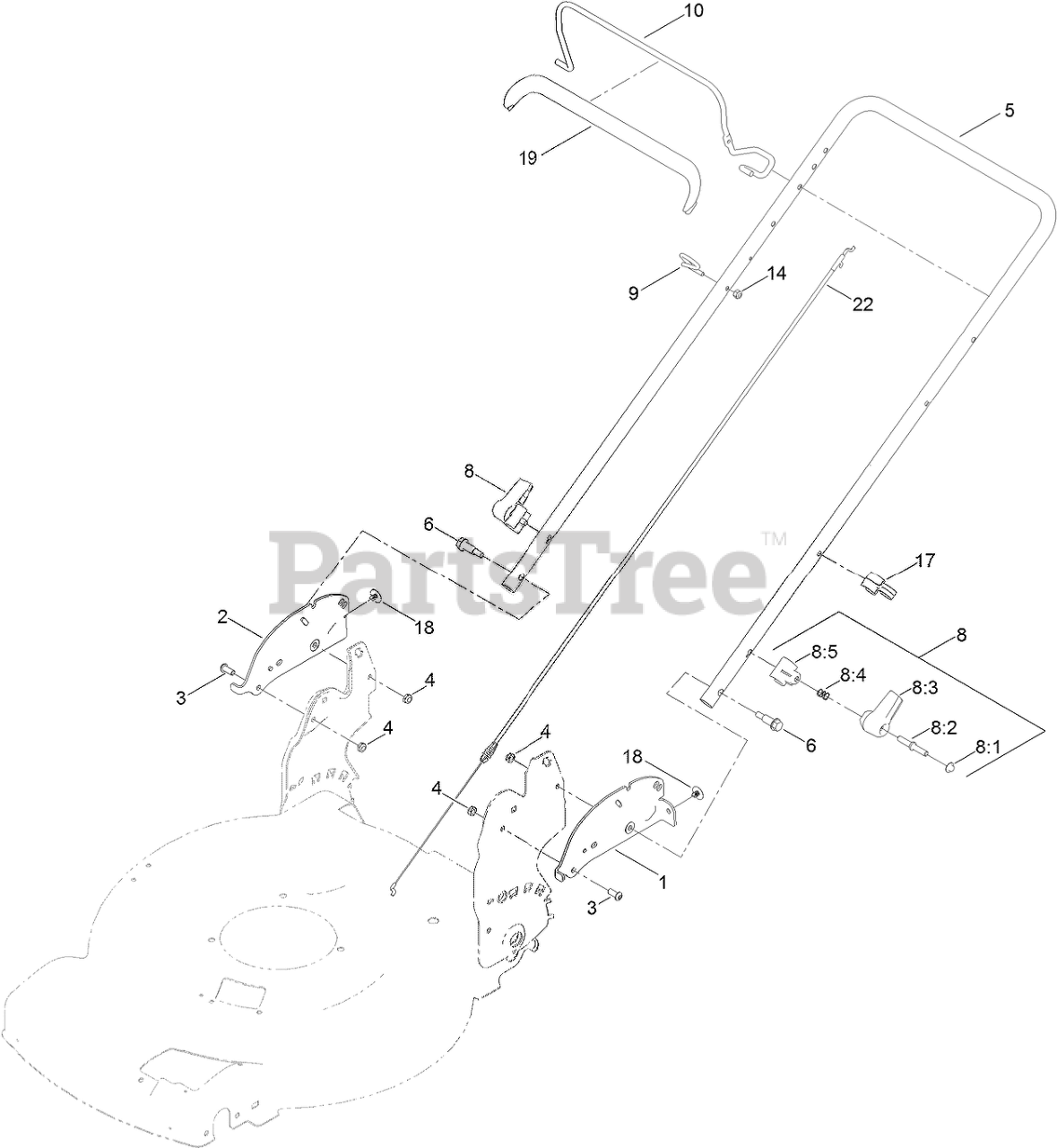

Handle Assembly Parts Diagram

  • Title

1

Toro 132-4492-03

PLATE-HANDLE, LH

$17.99

$

Usually ships in 3-6 days

0

2

Toro 132-4493-03

PLATE-HANDLE, RH

$17.99

$

Usually ships in 3-6 days

0

3

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 8

0

4

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

5

Toro 131-4569-05

HANDLE

$49.99

$

In Stock, only 3 left!

0

6

Toro 130-2344

BOLT-SHOULDER
(Superseded to 140-3759)

$1.49

$

Usually ships in 3-6 days

0

8

Toro 115-2860

QUICK RELEASE ASM
(Superseded to 138-3249)

$10.99

$

In Stock, only 1 left!

0

8:1

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, Qty 16

0

8:2

Toro 114-7995

LEVER
(Superseded to 138-3249)

$10.99

$

In Stock, only 1 left!

0

8:3

Toro 114-7996

ANCHOR-SPRING
(Superseded to 138-3249)

$10.99

$

In Stock, only 1 left!

0

8:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 4 left!

0

8:5

Toro 138-3243

ROD-RELEASE

$2.49

$

Usually ships in 3-6 days

0

9

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 19

0

10

Toro 138-3269-03

BAIL-BRAKE

$14.99

$

In Stock, Qty 7

0

14

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

17

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

18

Toro 130-6721

CLIP-TREE

$0.99

$

Usually ships in 3-6 days

0

19

Toro 127-6847

COVER-BAIL

$4.49

$

In Stock, Qty 11

0

22

Toro 127-0713

CABLE-BRAKE, ENGINE

$19.99

$

In Stock, Qty 14

0
