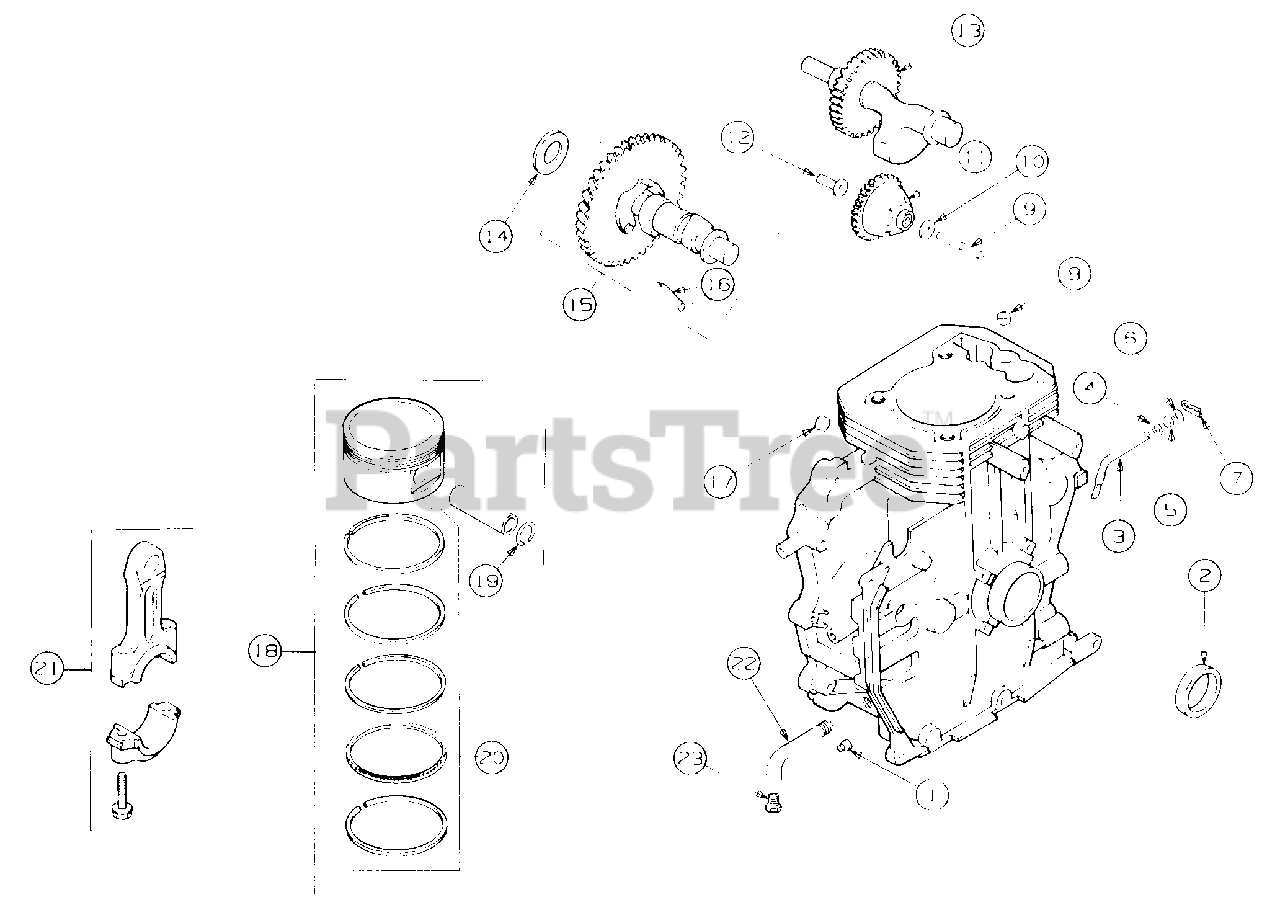

2135 (134-214F100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Crankcase Parts Diagram

Garden Tractor

Crankcase Parts Diagram

  • Title

Cub Cadet KH-1920

Engine Complete

$

$

Not available

1

Cub Cadet KH-X-75-10

Plug, Solid Sq Hd 3/8 NPTF
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, Qty 5

0

2

Cub Cadet KH-12-032-03

Seal, Crankshaft
(Superseded to KH-12-032-03-S)

$11.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-12-144-01

Shaft, Governor Cross
(Superseded to KH-12-755-64)

$

$

Not available

4

Cub Cadet KH-SM-631015

Washer, Governor Shaft

$

$

Not available

5

Cub Cadet KH-12-032-01

Seal, Governor Cross Shaft

$

$

Not available

6

Cub Cadet KH-X-25-102

Washer, Plain, 1/4
(Superseded to KH-X-25-102-S)

$2.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-12-380-04

Pin, Governor Hitch

$

$

Not available

8

Cub Cadet KH-12-380-03

Dowel, Locating
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, Qty 6

0

9

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

10

Cub Cadet KH-SM-631005

Washer, Governor Gear Thrust
(Superseded to KH-M-631005)

$

$

Not available

11

Cub Cadet KH-12-043-05

Gear, Governor Assy

$

$

Not available

12

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

13

Cub Cadet KH-12-144-10

Shaft, Balance
(Superseded to KH-12-144-26)

$

$

Not available

14

Cub Cadet KH-12-422-07

Shim, Camshaft, .0280
(Superseded to KH-12-422-07-S)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-08

Shim, Camshaft, .0300
(Superseded to KH-12-422-08-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-09

Shim, Camshaft, .0320
(Superseded to KH-12-422-09-S)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-10

Shim, Camshaft, .0340
(Superseded to KH-12-422-10-S)

$2.49

$

In Stock, Qty 10

0

Cub Cadet KH-12-422-11

Shim, Camshaft, .0360
(Superseded to KH-12-422-11-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-12

Shim, Camshaft, .0380
(Superseded to KH-12-422-12-S)

$2.99

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-13

Shim, Camshaft, .0400
(Superseded to KH-12-422-13-S)

$2.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-12-010-05

Camshaft Assy
(Superseded to KH-12-755-50)

Note: (Includes Ref No. 16)

$

$

Not available

16

Cub Cadet KH-12-089-18

Spring, Actuating
(Superseded to KH-12-089-37-S)

$2.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-52-139-09

Plug, Cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, only 2 left!

0

18

Cub Cadet KH-12-874-01

Piston w/Ring Set, Std

$

$

Not available

Cub Cadet KH-12-874-02

Piston w/Ring Set, .25

$

$

Not available

Cub Cadet KH-12-874-03

Piston w/Ring Set, .50

$

$

Not available

19

Cub Cadet KH-12-018-02

Retainer, Piston Pin

$

$

Not available

20

Cub Cadet KH-12-108-01

Ring Set, Std

$

$

Not available

Cub Cadet KH-12-108-02

Ring Set, .25
(Superseded to KH-24-108-24-S)

$

$

Not available

Cub Cadet KH-12-108-03

Ring Set, .50

$

$

Not available

21

Cub Cadet KH-12-067-01

Rod, Connecting, Std
(Superseded to KH-12-067-05)

$

$

Not available

Cub Cadet KH-12-067-02

Rod, Connecting, .25
(Superseded to KH-12-067-06)

$

$

Not available

22

Cub Cadet 751-3123

Pipe, Oil Drain

$

$

Not available

23

Cub Cadet 751-3001

Plug, Oil Drain

$

$

Not available

Cub Cadet KH-12-755-01

Gasket Set
(Superseded to KH-12-755-93-S)

$89.99

$

Usually ships in 2-5 days

0
