2135 (134-214F100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Fender and Running Board Parts Diagram

Garden Tractor

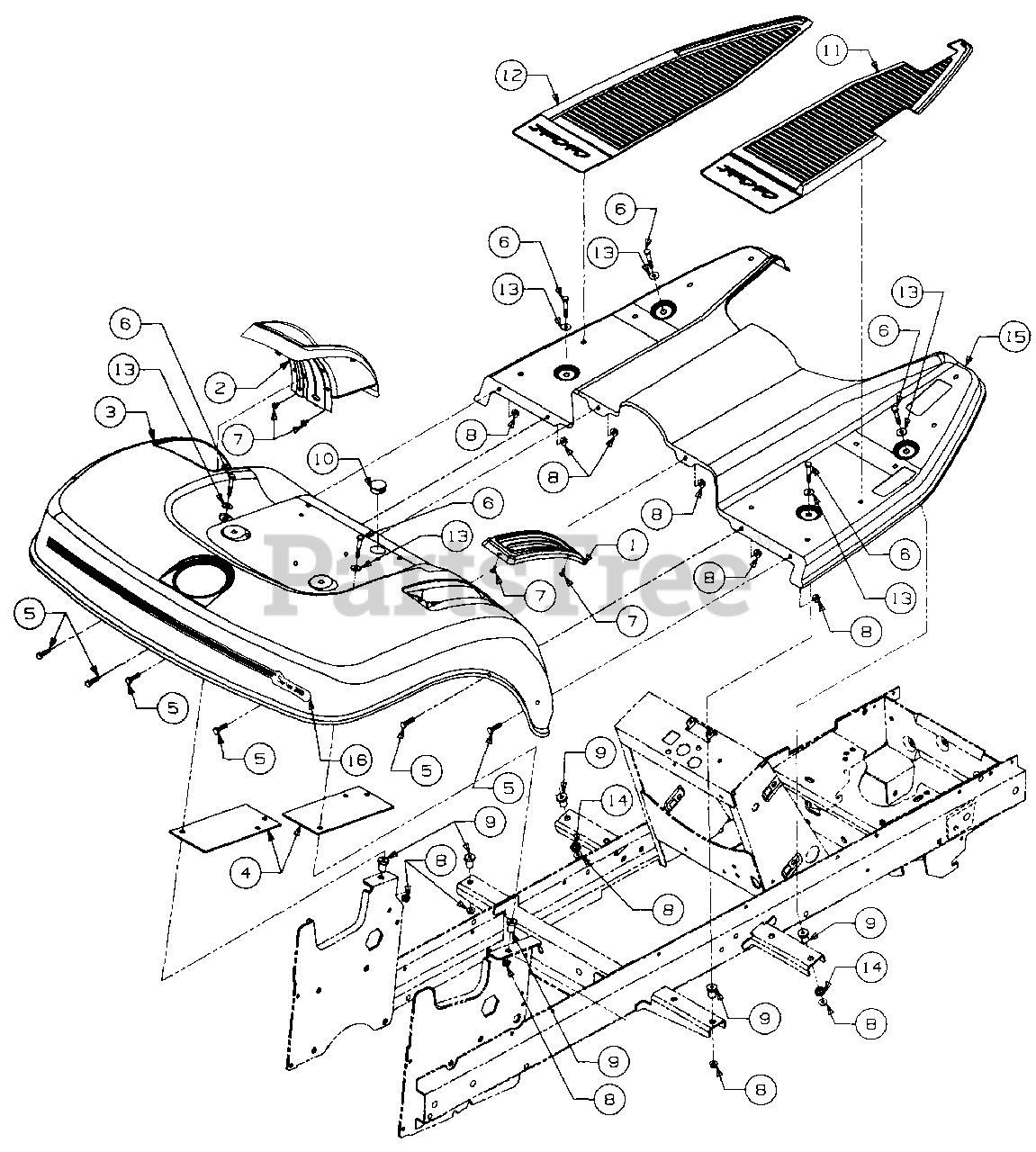

Fender and Running Board Parts Diagram

  • Title

1

Cub Cadet 631-3001

Cover, Hydro Shifter

$

$

Not available

Cub Cadet 777-2038

Graphic, High Arrow

$

$

Not available

Cub Cadet 777-2039

Graphic, Cruise Control

$

$

Not available

2

Cub Cadet 631-3002

Cover, Implement Lift

$68.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2278B

Fender

$

$

Currently unavailable

4

Cub Cadet 703-2628

Plate, Fender Reinforcement

Variations

703-2628-0498

Cub Cadet 703-2628-0498

Fender Reinforcement Plate - OLD CUB YELLOW (0498)

$

$

Not available

703-2628-0716

Cub Cadet 703-2628-0716

Fender Reinforcement Plate - CUB YELLOW-99 (0716)

$

$

Not available

703-2628-4015

Cub Cadet 703-2628-4015

Fender Reinforcement Plate, Fire Red - FIRE RED (4015)

$

$

Not available

703-2628-4021

Cub Cadet 703-2628-4021

PLATE-FNDR REINFOR - CUB YELLOW 2 (4021)

$

$

Not available

$

$

5

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 X .62 Lg
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0606

Screw, Hex Cap, 1/4-20 x 1.5 Lg

$5.99

$

In Stock, only 2 left!

0

7

Cub Cadet 710-1268

Screw, Hex Tapp, #10 X .38 Lg

$4.49

$

In Stock, Qty 18

0

8

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 19

0

9

Cub Cadet 722-3023

lnsolater, .50 OD x .88 Lg

$

$

Not available

10

Cub Cadet 723-3042

Bushing, Snap, 7/8 ID

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 735-3046

Pad, RH Foot
(Superseded to 735-3046A)

$

$

Not available

12

Cub Cadet 735-3047

Pad, LH Foot

$56.99

$

In Stock, Qty 7

0

13

Cub Cadet 736-3090

Washer, Flat, .255 x .720 x .060 Thk

$6.99

$

In Stock, Qty 5

0

14

Cub Cadet 750-0760

Spacer,.511 ID X .70 OD X .38 Lg

$

$

Not available

15

Cub Cadet 759-3737

Running Board w/Graphic
(Superseded to 703-2279-0716)

$

$

Not available

Cub Cadet 777-1712

Graphic, Warning
(Superseded to 777S30170)

$26.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 777-1915

Graphic, Rear Fender

$

$

Not available
