2135 (134-214F100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Ignition/Electrical Parts Diagram

Garden Tractor

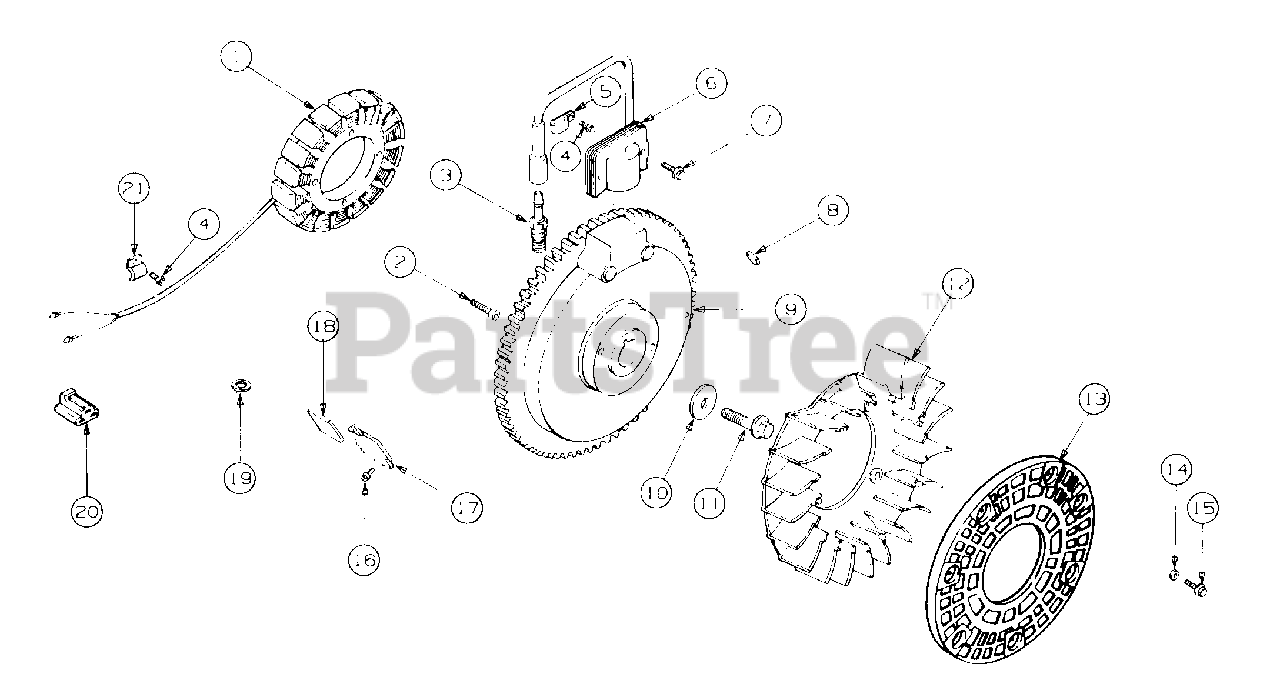

Ignition/Electrical Parts Diagram

  • Title

1

Cub Cadet KH-24-085-01

Stator, 15 Amp
(Superseded to KH-237878)

$

$

Not available

2

Cub Cadet KH-M-0548025

Screw, Stator Mounting M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$3.49

$

In Stock, only 3 left!

0

3

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-M-0545010

Screw, Stator Harness

$

$

Not available

5

Cub Cadet KH-X-728-1

Clip, Cable

$

$

Not available

6

Cub Cadet KH-12-584-01

Module, Ignition
(Superseded to KH-12-584-04)

$33.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-SM-0545020

Screw, Ignition Module M5 x 0.8 x 20

$

$

Not available

8

Cub Cadet KH-X-42-15

Key

$

$

Not available

9

Cub Cadet KH-12-025-28

Flywheel Assy

$

$

Not available

10

Cub Cadet KH-12-468-03

Washer, Flywheel

$

$

Not available

11

Cub Cadet KH-12-086-14

Screw, Flywheel, M10 x 1.5 x 45.8
(Superseded to KH-25-086-361-S)

$4.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-12-157-02

Fan
(Superseded to KH-12-157-03-S)

$

$

Not available

13

Cub Cadet KH-12-162-05

Screen, Grass

$

$

Not available

14

Cub Cadet KH-12-112-01

Spacer, Fan
(Superseded to KH-25-086-47)

$

$

Not available

15

Cub Cadet KH-M-0639016

Screw, Fan, M6 x 1.0 x 16
(Superseded to KH-M-639016-S)

$2.49

$

In Stock, only 4 left!

0

16

Cub Cadet KH-M-0639016

Screw, Rectifier-Regulator, M6 x 1.0 x 16
(Superseded to KH-M-639016-S)

$2.49

$

In Stock, only 4 left!

0

17

Cub Cadet KH-41-403-09

Rectifier-Regulator
(Superseded to KH-25-403-37-S)

$105.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-236602

Connector (3 contact)
(Superseded to KH-25-155-41-S)

$31.99

$

In Stock, only 3 left!

0

19

Cub Cadet KH-X-22-11

Washer, Lock, 1/4

$

$

Not available

20

Cub Cadet KH-236473

Connector (3 contact)

$

$

Not available

21

Cub Cadet KH-12-154-02

Clip, Stator Harness

$

$

Not available

Cub Cadet KH-12-518-01

Lead, White, Ground to Kill, 19"

Note: (18 gauge, fully insulate push-on tab and uninsulated push-on tab terminals

$

$

Not available

Cub Cadet KH-15-518-09

Lead, Ground, Green, 6"

Note: (18 gauge, insulated grip barrel eyelet terminals)

$

$

Not available

Cub Cadet KH-25-518-08

Lead, Black, 11"

Note: (14 gauge, uninsulated push-on tab terminals)

$

$

Not available
