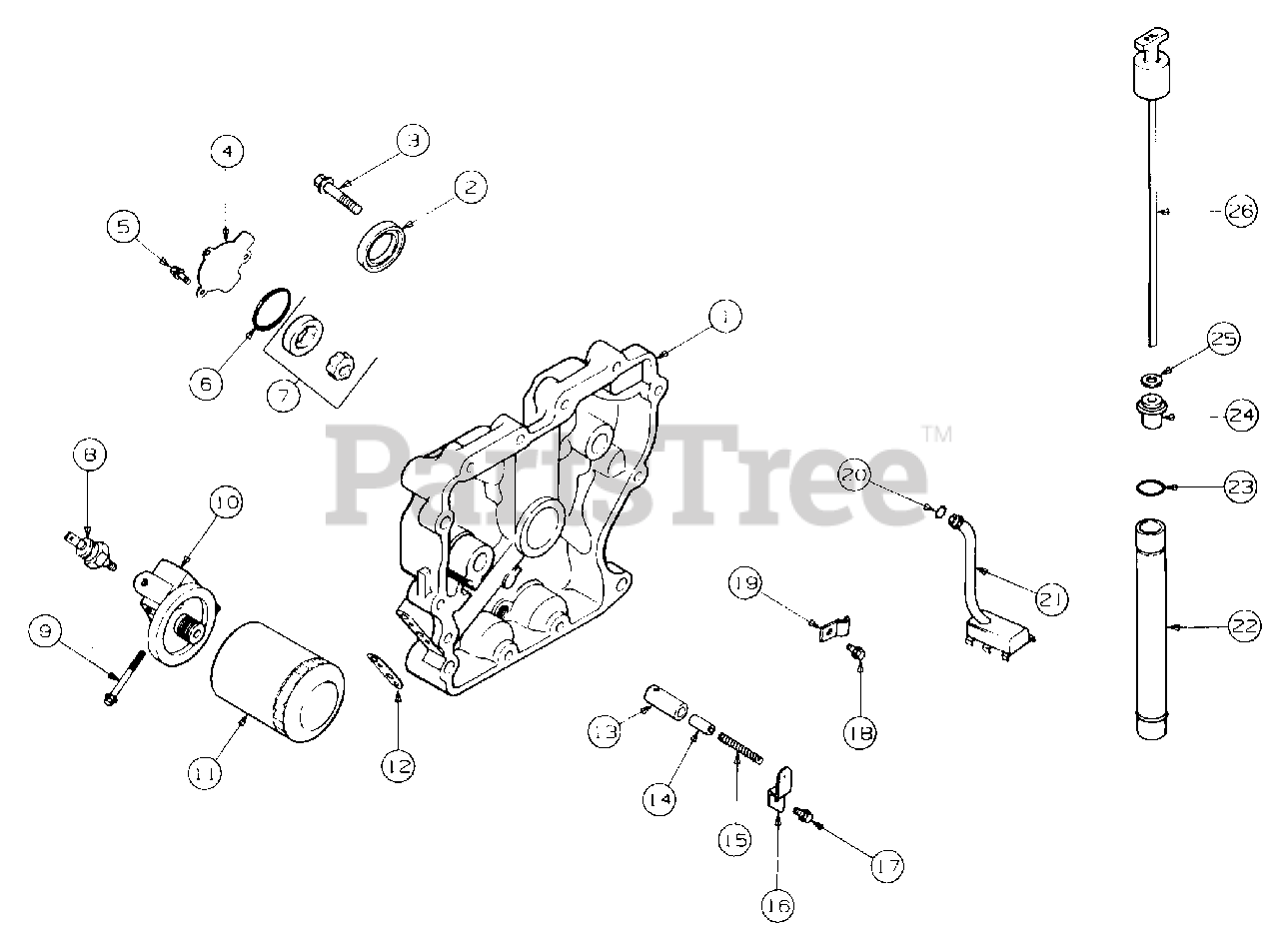

2135 (135-214F100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Oil Pan/Lubrication Parts Diagram

Garden Tractor

Oil Pan/Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-12-009-23

Plate, Closure

$

$

Not available

2

Cub Cadet KH-12-032-03

Seal, Oil (PTO end)
(Superseded to KH-12-032-03-S)

$9.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-SM-839045

Screw, Closure Plate M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 20+

0

4

Cub Cadet KH-12-096-02

Cover, Oil Pump
(Superseded to KH-12-096-21)

$

$

Not available

5

Cub Cadet KH-SM-545016

Screw, Oil Pump Cover, M5 x 0.8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

6

Cub Cadet KH-12-153-05

O-Ring, Oil Pump

$

$

Not available

7

Cub Cadet KH-12-393-01

Pump, Oil

$

$

Not available

8

Cub Cadet KH-52-099-06

Switch, Oil Pressure
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, only 3 left!

0

9

Cub Cadet KH-M-0639055

Screw, Oil Filter Adapter, M6 x 1.0 x 55
(Superseded to KH-25-086-84-S)

$2.49

$

Usually ships in 3-6 days

0

10

Cub Cadet KH-12-029-03

Adapter, Oil Filter
(Superseded to KH-12-029-08)

$

$

Not available

11

Cub Cadet KH-12-050-08

Filter, Oil
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

12

Cub Cadet KH-12-041-07

Gasket, Oil Filter Adapter

$

$

Not available

13

Cub Cadet KH-12-208-02

Body, Oil Pump Relief Valve
(Superseded to KH-25-462-09)

$

$

Not available

14

Cub Cadet KH-12-462-02

Piston, Oil Pump Relief Valve

$

$

Not available

15

Cub Cadet KH-12-089-16

Spring, Oil Pump Relief Valve

$

$

Currently unavailable

16

Cub Cadet KH-12-126-16

Bracket, Oil Pump Relief Valve
(Superseded to KH-25-462-09)

$

$

Not available

17

Cub Cadet KH-SM-545016

Screw, Screen Cover M5 x 0.8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

18

Cub Cadet KH-SM-545016

Screw, Oil Pick-Up M5 x 0.8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

19

Cub Cadet KH-52-154-01

Clip, Oil Tube

$

$

Not available

20

Cub Cadet KH-12-153-04

O-Ring, Oil Pick-Up

$

$

Not available

21

Cub Cadet KH-12-381-01

Oil Pick-Up Assy
(Superseded to KH-12-755-73)

$

$

Not available

22

Cub Cadet KH-12-123-09

Tube, Oil Fill

$

$

Not available

23

Cub Cadet KH-41-153-01

O-Ring, Lower Oil Fill Tube

$

$

Not available

24

Cub Cadet KH-52-032-14

Seal, Rubber
(Superseded to KH-25-032-13-S)

$3.49

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-X-25-44

Washer, Plain, 5/16

$

$

Not available

26

Cub Cadet KH-47-038-26

Dipstick Assy

$

$

Not available

Cub Cadet KH-41-518-20

Lead, Blue, 6"

Note: (18 gauge uninsulated push-on tab & fully insulated push-on tab terminals)

$

$

Not available
