2135 (13A-214F100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Blower Housing and Baffles Parts Diagram

Garden Tractor

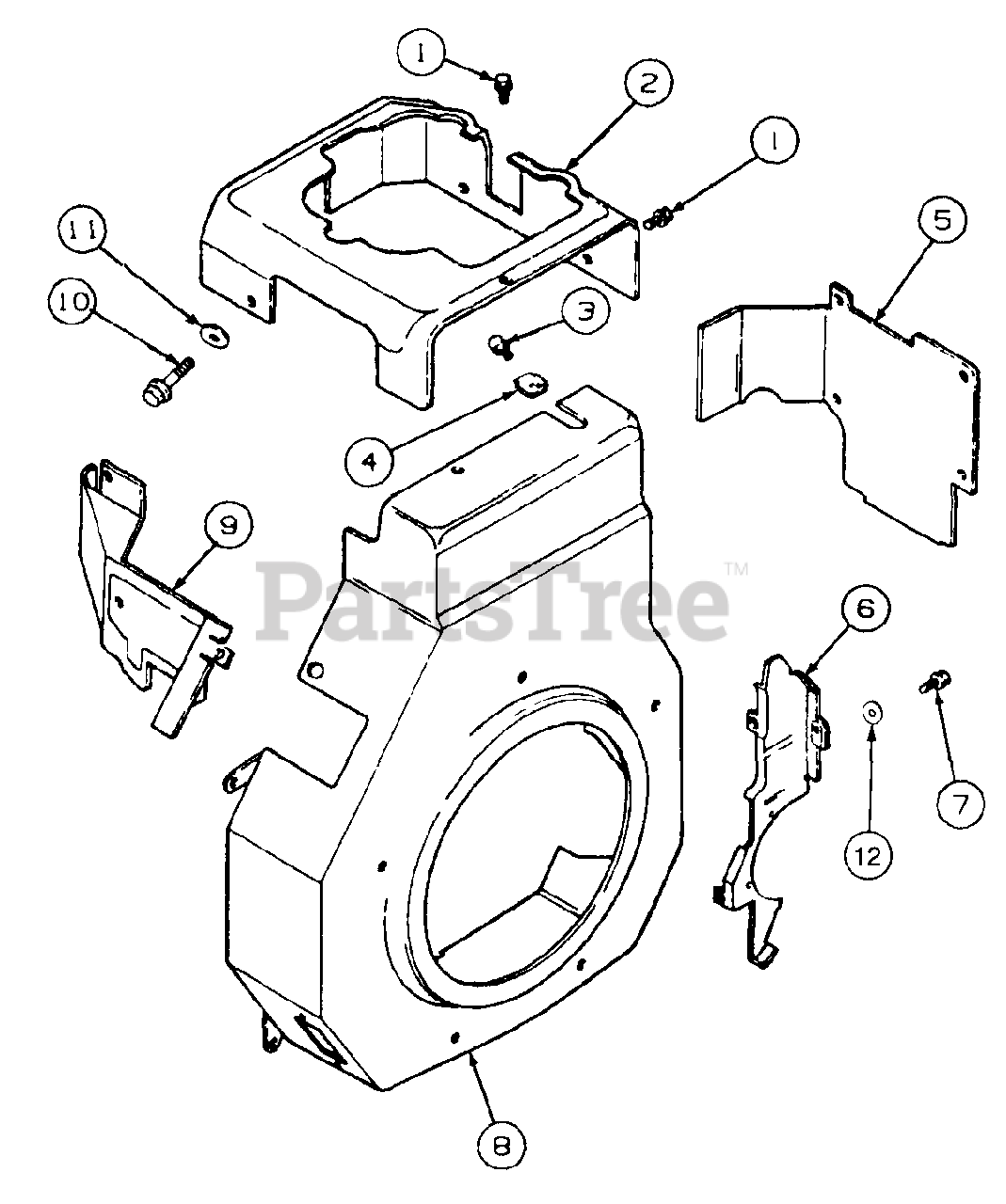

Blower Housing and Baffles Parts Diagram

  • Title

1

Cub Cadet KH-M-0545010

Screw, Hex Flange, M5 x .8 x 10

$

$

Not available

2

Cub Cadet KH-12-063-08

Baffle, Cylinder Head

$

$

Not available

3

Cub Cadet KH-M-0645016

Screw, Hex Flange, M5 x .8 x 16
(Superseded to KH-M-645016-S)

$4.99

$

In Stock, Qty 19

0

4

Cub Cadet KH-25-154-02

Clip, Mounting

$

$

Not available

5

Cub Cadet KH-12-063-14

Baffle, Cylinder

$

$

Not available

6

Cub Cadet KH-12-146-07

Plate, Blower Housing

$

$

Not available

7

Cub Cadet KH-M-0545020

Screw, Hex Flange, M5 x .8 x 20

Note: (Engine Spec No 22508)

$

$

Not available

Cub Cadet KH-12-086-37

Screw, w/Washer M5 x .8 x 20

Note: (Engine Spec No 22531)

$

$

Not available

8

Cub Cadet KH-12-027-32

Housing, Blower

Note: (Engine Spec No 22508)

$

$

Not available

Cub Cadet KH-12-027-55

Housing, Blower
(Superseded to KH-12-027-96-S)

Note: (Engine Spec No 22531)

$

$

Not available

9

Cub Cadet KH-12-063-05

Baffle, Intake Side

$

$

Not available

10

Cub Cadet KH-24-086-18

Screw, Hex Head

$

$

Not available

11

Cub Cadet KH-X-25-92

Washer, Plain

$

$

Not available

12

Cub Cadet KH-24-468-10

Washer, Plain 1/4"

Note: (Engine Spec No 22531)

$

$

Not available
