21381 - Toro 21" Super Recycler Walk-Behind Mower (SN: 403310300 - 403342069) Handle Assembly Parts Diagram

21" Super Recycler Walk-Behind Mower

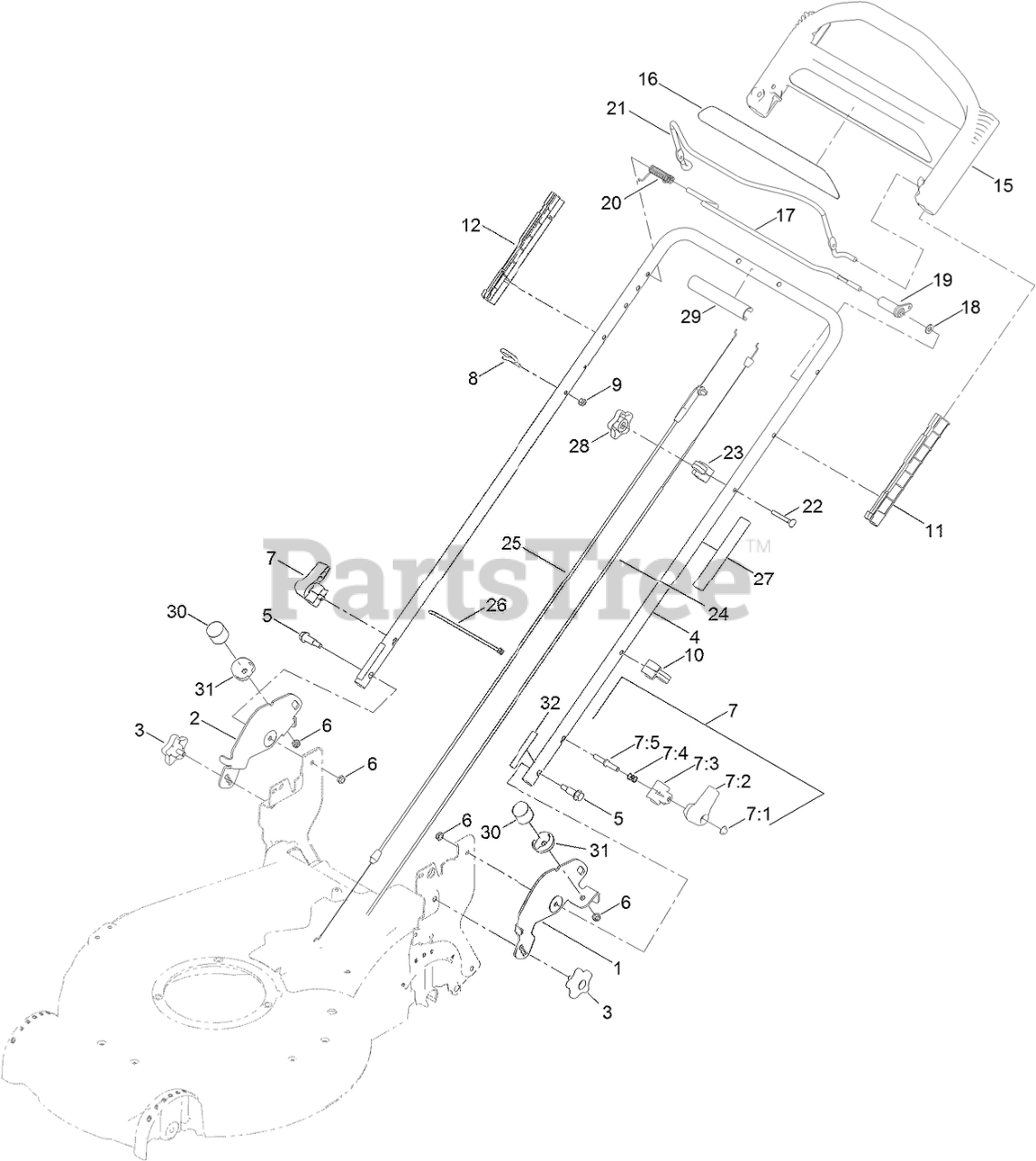

Handle Assembly Parts Diagram

  • Title

1

Toro 137-4845-03

BRACKET-FLOAT, LH

$18.99

$

Usually ships in 3-6 days

0

2

Toro 137-4846-03

BRACKET-FLOAT, RH

$18.99

$

Usually ships in 3-6 days

0

3

Toro 137-4844

KNOB-HANDLE

$2.49

$

Usually ships in 3-6 days

0

4

Toro 137-4793-05

HANDLE-UPPER
(Superseded to 140-3824-05)

$48.99

$

In Stock, only 1 left!

0

5

Toro 130-2344

BOLT-SHOULDER
(Superseded to 140-3759)

$1.49

$

Usually ships in 3-6 days

0

6

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

7

Toro 115-2860

QUICK RELEASE ASM
(Superseded to 138-3249)

$10.99

$

In Stock, only 2 left!

0

7:1

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, Qty 16

0

7:2

Toro 114-7995

LEVER
(Superseded to 138-3249)

$10.99

$

In Stock, only 2 left!

0

7:3

Toro 114-7996

ANCHOR-SPRING
(Superseded to 138-3249)

$10.99

$

In Stock, only 2 left!

0

7:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 4 left!

0

7:5

Toro 138-3243

ROD-RELEASE

$2.49

$

Usually ships in 3-6 days

0

8

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 18

0

9

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

10

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

11

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 1 left!

0

12

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, Qty 8

0

15

Toro 104-8678

HANDLE-CONTROL

$81.99

$

In Stock, only 2 left!

0

16

Toro 117-1019

DECAL

$8.99

$

In Stock, only 1 left!

0

17

Toro 136-7150

BAR-CONTROL, TRACTION

$16.99

$

In Stock, Qty 7

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 99-1589

LEVER-TRACTION

$7.49

$

In Stock, Qty 15

0

20

Toro 121-9118

See Supercession: 136-7166
(Superseded to 136-7166)

$2.99

$

In Stock, Qty 20+

0

21

Toro 131-0880-03

BAIL-BRAKE

$15.99

$

In Stock, Qty 20+

0

22

Toro 95-4453

SCREW

$3.49

$

In Stock, Qty 20+

0

23

Toro 136-5864

ANCHOR-CABLE

$2.99

$

In Stock, Qty 16

0

24

Toro 108-8158

CABLE-TRACTION

$41.99

$

In Stock, Qty 15

0

25

Toro 117-5900

CABLE-BRAKE

$41.99

$

Usually ships in 3-6 days

0

26

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

27

Toro 132-4470

DECAL-TRACTION, ADJUST

$1.99

$

In Stock, only 3 left!

0

28

Toro 131-0897

KNOB-HANDLE, LOCKING

$4.49

$

In Stock, Qty 7

0

29

Toro 131-4551

HANDLE-COVER

$1.49

$

Usually ships in 3-6 days

0

30

Toro 137-4803

BUMPER-RUBBER

$4.49

$

Usually ships in 3-6 days

0

31

Toro 137-9100

COVER-BUMPER

$1.49

$

Usually ships in 3-6 days

0

32

Toro 137-4801

DECAL-ISOFLEX

$2.49

$

Usually ships in 3-6 days

0
