21386x6C - Murray Ultra 21" Walk-Behind Mower (2000) Handle Assembly Parts Diagram

Ultra 21" Walk-Behind Mower

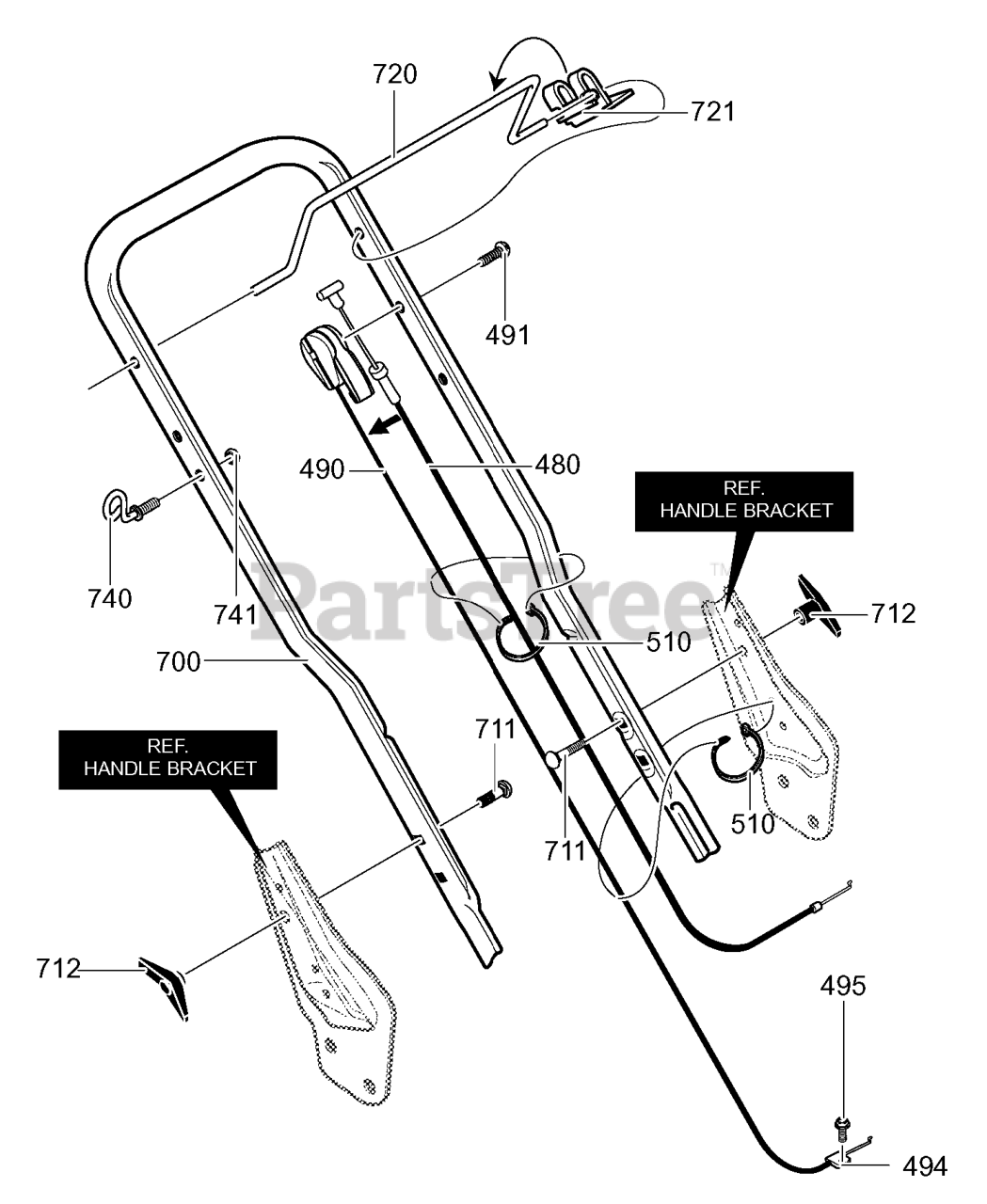

Handle Assembly Parts Diagram

  • Title

480

Murray 672530MA

CABLE, STOP

$

$

Not available

490

Murray 672539MA

T-CABLE

$

$

Not available

491

Murray 323035MA

SCREW, 1/4-20X2.00

$4.49

$

Usually ships in 2-12 days

0

494

Murray 12425

CLAMP, THROTTLE
(Superseded to 7012425YP)

$22.99

$

In Stock, Qty 8

0

495

Murray 710275

SCREW, 10-32X.62
(Superseded to 66574)

$7.99

$

In Stock, Qty 8

0

510

Murray 712267

CABLE TIE

$

$

Not available

700

Murray 672286-846

HANDLE

$

$

Currently unavailable

711

Murray 710175

BOLT, 5/16-18X2.00

$6.49

$

Usually ships in 2-12 days

0

712

Murray 671294MA

KNOB, WING
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

720

Murray 672288-850

LEVER, STOP FLAT

$

$

Currently unavailable

721

Murray 643628

BRACKET, STOP LEVER

$

$

Currently unavailable

740

Murray 672510MA

GUIDE, ROPE 1/4-20

$6.49

$

Usually ships in 2-12 days

0

741

Murray 710203

NUT, 1/4-20

$21.99

$

Usually ships in 2-12 days

0
