21387 - Toro Super Recycler Walk-Behind Mower (SN: 409113684 - 999999999) Engine and Blade Assembly Parts Diagram

Super Recycler Walk-Behind Mower

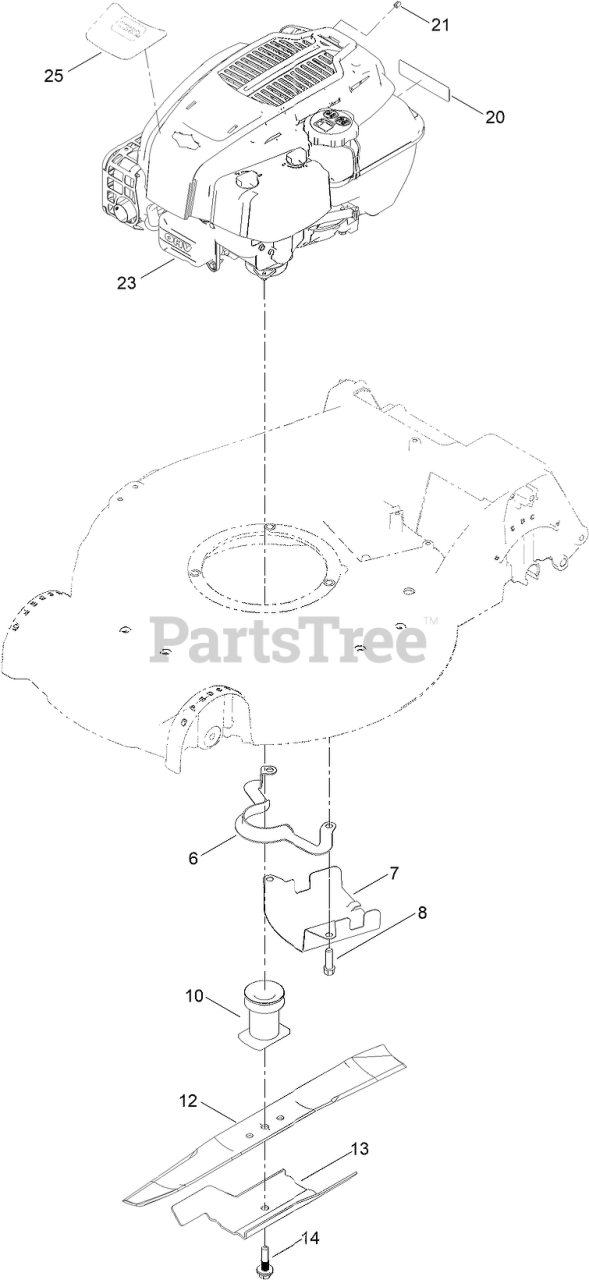

Engine and Blade Assembly Parts Diagram

  • Title

6

Toro 108-8110-03

GUIDE-BELT

$15.99

$

In Stock, only 3 left!

0

7

Toro 107-7489-03

SHIELD-GRASS

$16.99

$

In Stock, Qty 5

0

8

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

10

Toro 139-1816

DRIVER-BLADE

$21.99

$

Usually ships in 3-6 days

0

12

Toro 133-8183-03

BLADE-21IN, RECYCLING

$22.99

$

In Stock, Qty 20+

0

13

Toro 105-6848-01

ACCELERATOR-BLADE

$17.99

$

In Stock, only 1 left!

0

14

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

20

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

21

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

23

ENGINE-BRIGGS 875 ES SS

Note: Not serviced separately

$

$

Not available

23

ENGINE-BRIGGS 875 ES SS

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

25

Toro 140-3774

DECAL-ENGINE

$3.49

$

Usually ships in 3-6 days

0
