21388 - Toro 21" 60V Super Recycler Walk-Behind Mower (SN: 400000000 - 408899999) Handle Assembly Parts Diagram

21" 60V Super Recycler Walk-Behind Mower

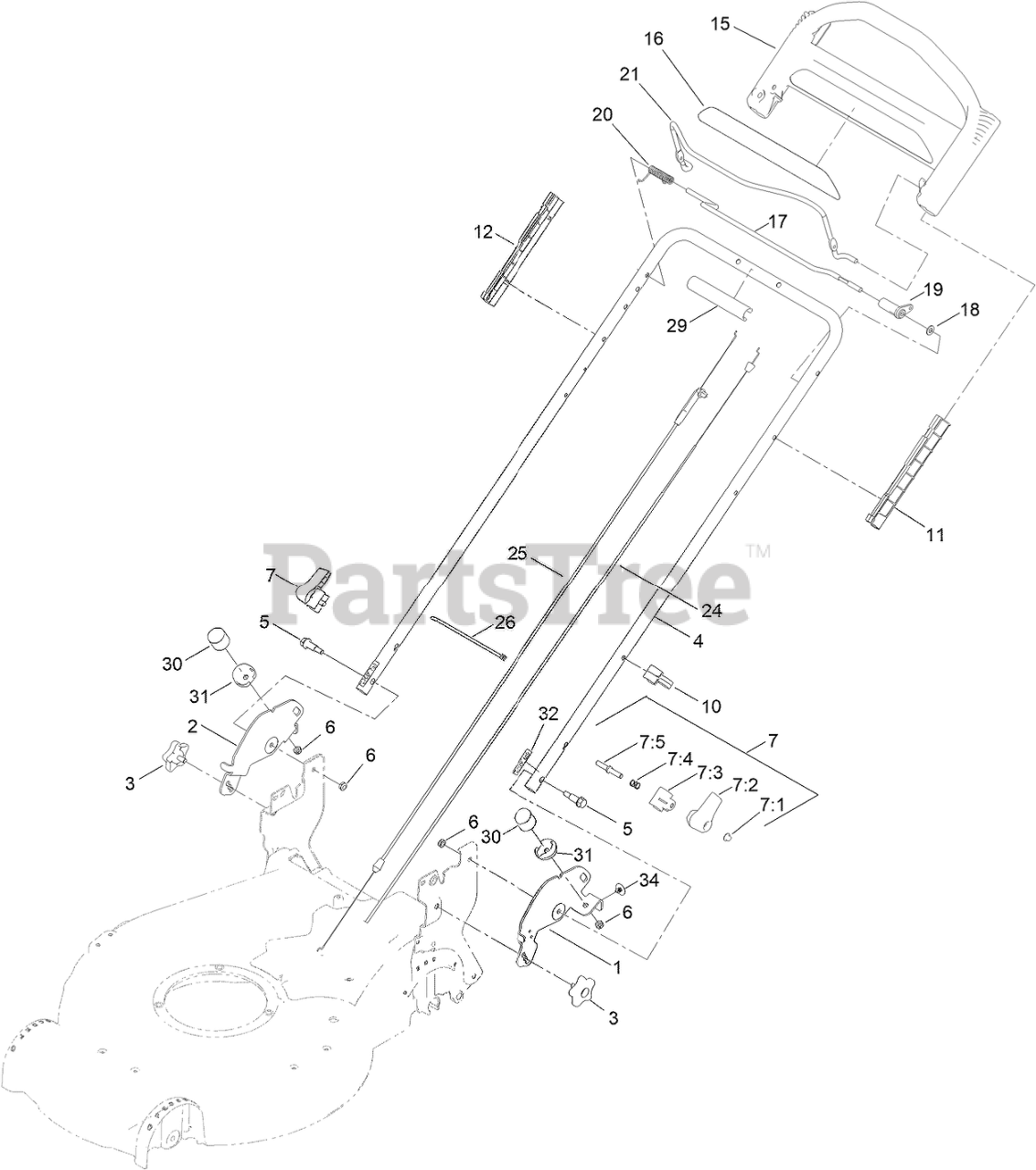

Handle Assembly Parts Diagram

  • Title

1

Toro 140-3831-03

BRACKET-FLOAT, LH

$15.99

$

Usually ships in 3-6 days

0

2

Toro 137-4838-03

BRACKET-FLOAT, RH

$15.99

$

Usually ships in 3-6 days

0

3

Toro 137-4844

KNOB-HANDLE

$2.49

$

Usually ships in 3-6 days

0

4

Toro 140-3824-05

HANDLE-UPPER

$48.99

$

Usually ships in 3-6 days

0

5

Toro 130-2344

BOLT-SHOULDER
(Superseded to 140-3759)

$1.49

$

Usually ships in 3-6 days

0

6

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

7

Toro 138-3249

QUICK RELEASE ASM

$10.99

$

In Stock, only 2 left!

0

7:1

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, Qty 16

0

7:2

Toro 138-3248

LEVER-RELEASE
(Superseded to 138-3249)

$10.99

$

In Stock, only 2 left!

0

7:3

Toro 138-3253

ANCHOR-SPRING
(Superseded to 138-3249)

$10.99

$

In Stock, only 2 left!

0

7:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 4 left!

0

7:5

Toro 138-3243

ROD-RELEASE

$2.49

$

Usually ships in 3-6 days

0

10

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

11

Toro 105-6842

GUIDE-LH

$8.99

$

Usually ships in 3-6 days

0

12

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, Qty 7

0

15

Toro 104-8678

HANDLE-CONTROL

$81.99

$

Usually ships in 3-6 days

0

16

Toro 144-3197

DECAL

$

$

Currently unavailable

17

Toro 136-7150

BAR-CONTROL, TRACTION

$16.99

$

In Stock, Qty 7

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 99-1589

LEVER-TRACTION

$7.49

$

In Stock, Qty 13

0

20

Toro 136-7166

SPRING-TORSION

$2.99

$

In Stock, Qty 20+

0

21

Toro 131-0880-03

BAIL-BRAKE

$15.99

$

In Stock, Qty 20+

0

24

Toro 117-9389

CABLE-TRACTION

$37.99

$

In Stock, Qty 11

0

25

Toro 117-5900

CABLE-BRAKE

$41.99

$

Usually ships in 3-6 days

0

26

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

29

Toro 131-4551

HANDLE-COVER

$1.49

$

Usually ships in 3-6 days

0

30

Toro 137-4803

BUMPER-RUBBER

$4.49

$

Usually ships in 3-6 days

0

31

Toro 137-9100

COVER-BUMPER

$1.49

$

Usually ships in 3-6 days

0

32

Toro 140-3827

DECAL-FLEX

$1.49

$

Usually ships in 3-6 days

0

34

Toro 130-6721

CLIP-TREE

$0.99

$

Usually ships in 3-6 days

0
