214 (190-214-100) - Cub Cadet 42" Mower Deck (SN: H 179 & After) 42" Deck Assembly Parts Diagram

42" Mower Deck

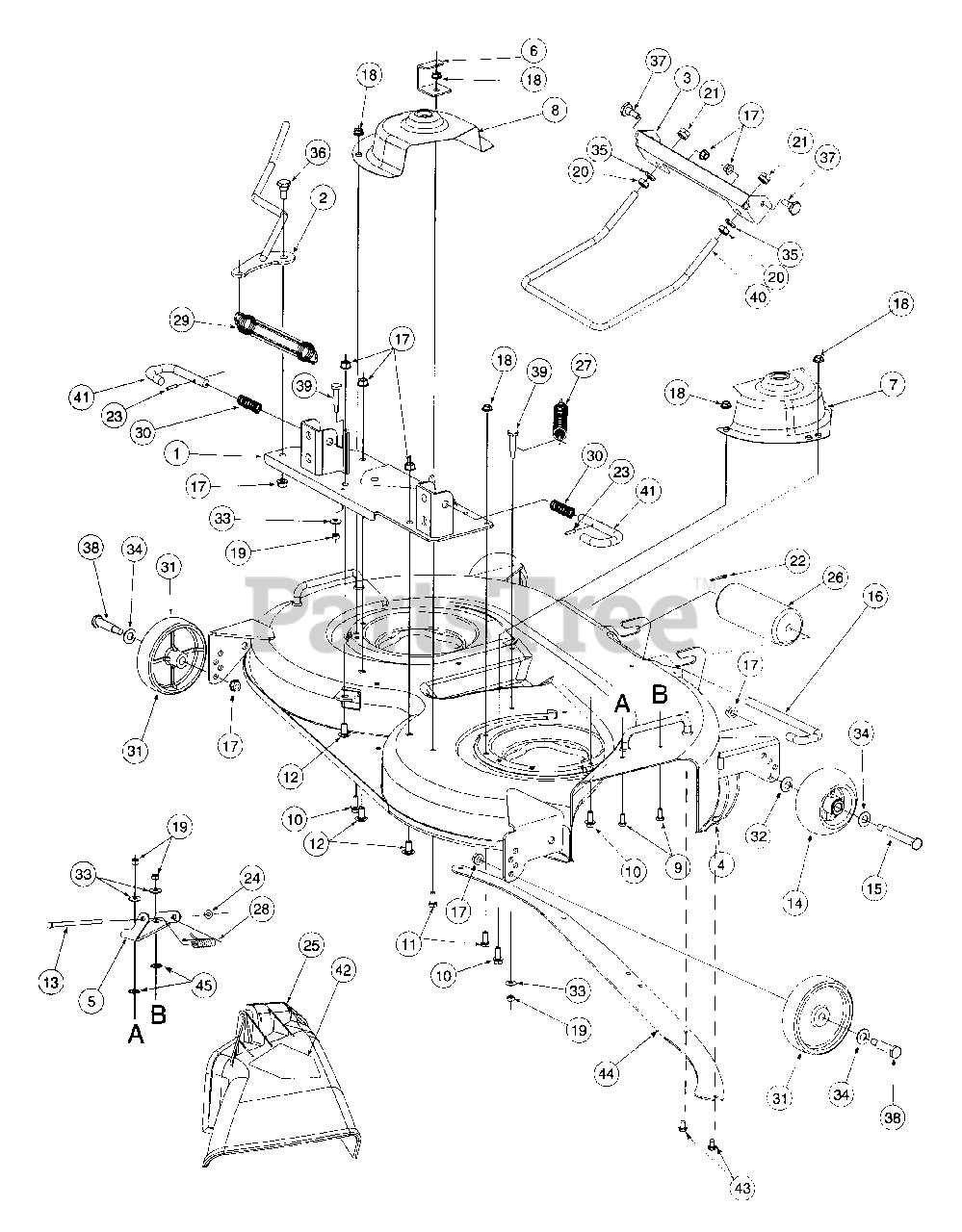

42" Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0181A

Plate Assembly, Mounting
(Superseded to 603-0181B)

Variations

603-0181A-0498

Cub Cadet 603-0181A-0498

USE 603-0181B-0716 PLATE ASM- - OLD CUB YELLOW (0498)

$

$

Not available

603-0181A-0716

Cub Cadet 603-0181A-0716

USE 603-0181B-0716 PLATE ASM- - CUB YELLOW-99 (0716)

$

$

Not available

$155.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0199

Handle, Tension

Variations

603-0199-0498

Cub Cadet 603-0199-0498

USE 603-0199-0716 HANDLE TEN - OLD CUB YELLOW (0498)

$57.99

$

Usually ships in 3-6 days

0

603-0199-0716

Cub Cadet 603-0199-0716

HANDLE TENSION - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

603-0199-0637

Cub Cadet 603-0199-0637

HANDLE TENSION - POWDER BLACK (0637)

$

$

Not available

603-0199-4021

Cub Cadet 603-0199-4021

TENSION HANDLE - CUB YELLOW 2 (4021)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0200

Bracket, Front Lift
(Superseded to 703-2248)

Variations

603-0200-0498

Cub Cadet 603-0200-0498

Front Lift Bracket - OLD CUB YELLOW (0498)

$50.99

$

In Stock, Qty 5

0

603-0200-0716

Cub Cadet 603-0200-0716

Front Lift Bracket - CUB YELLOW-99 (0716)

$50.99

$

In Stock, Qty 5

0

$40.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-0409A

Deck Assembly
(Superseded to 903-0409D-4021)

Variations

603-0409A-0498

Cub Cadet 603-0409A-0498

USE 903-0409D-0716 SHELL-42" - OLD CUB YELLOW (0498)

$854.99

$

Usually ships in 3-6 days

0

603-0409A-0716

Cub Cadet 603-0409A-0716

USE 903-0409D-0716 SHELL-42" - CUB YELLOW-99 (0716)

$854.99

$

Usually ships in 3-6 days

0

$854.99

$

Usually ships in 3-6 days

0

Cub Cadet 777S30503

Graphic, Danger Keep Hands Away

$12.99

$

In Stock, only 2 left!

0

Cub Cadet 777S30014

Graphic, Caution Under Spring Tension

$10.99

$

In Stock, only 1 left!

0

Cub Cadet 777S30018

Graphic, Danger Avoid Serious Injury

$9.49

$

In Stock, Qty 9

0

5

Cub Cadet 703-1693A

Bracket, Hinge Mounting

$24.99

$

In Stock, only 4 left!

0

6

Cub Cadet 703-2559

Bracket, Handle Stop

Variations

703-2559-4021

Cub Cadet 703-2559-4021

BRACKET-STOP - CUB YELLOW 2 (4021)

$28.99

$

Usually ships in 3-6 days

0

703-2559-0498

Cub Cadet 703-2559-0498

Stop Bracket - OLD CUB YELLOW (0498)

$

$

Not available

703-2559-0637

Cub Cadet 703-2559-0637

Stop Bracket - POWDER BLACK (0637)

$

$

Not available

703-2559-0648

Cub Cadet 703-2559-0648

Stop Bracket - TECH GRAY (0648)

$

$

Not available

703-2559-0716

Cub Cadet 703-2559-0716

Stop Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$28.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-3237

Shield, RH Pulley

Variations

703-3237-0498

Cub Cadet 703-3237-0498

Belt Cover, RH - OLD CUB YELLOW (0498)

$66.99

$

Usually ships in 3-6 days

0

703-3237-0637

Cub Cadet 703-3237-0637

COVER-BELT RH - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

703-3237-0716

Cub Cadet 703-3237-0716

Belt Cover, RH Yellow - CUB YELLOW-99 (0716)

$66.99

$

Usually ships in 3-6 days

0

703-3237-4021

Cub Cadet 703-3237-4021

Belt Cover, RH - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2945

Shield, LH Pulley

Variations

703-2945-0498

Cub Cadet 703-2945-0498

USE 703-2945-0716 COVER-BELT - OLD CUB YELLOW (0498)

$71.99

$

Usually ships in 3-6 days

0

703-2945-0716

Cub Cadet 703-2945-0716

COVER-BELT LH - CUB YELLOW-99 (0716)

$71.99

$

Usually ships in 3-6 days

0

703-2945-4021

Cub Cadet 703-2945-4021

COVER-BELT LH - CUB YELLOW 2 (4021)

$71.99

$

Usually ships in 3-6 days

0

703-2945-0637

Cub Cadet 703-2945-0637

COVER-BELT LH - POWDER BLACK (0637)

$

$

Not available

703-2945-0648

Cub Cadet 703-2945-0648

USE 703-2945-0637 COVER-BELT - TECH GRAY (0648)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1260A

Screw, Hx Wsh Hd Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 711-0792

Pin, Hinge, .25 Dia x 6.75 Lg
(Superseded to 911-0792)

$4.99

$

In Stock, Qty 11

0

14

Cub Cadet 703-1890

Wheel, Deck w/Fitting
(Superseded to 703-1890A)

$41.99

$

In Stock, Qty 20+

0

Cub Cadet 737-0280

Lube, Fitting

$8.49

$

In Stock, only 4 left!

0

15

Cub Cadet 738-3056

Bolt, Shoulder, 1/2 x 2.5
(Superseded to 938-3056)

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet 711-3314

Pin, Roller, 1/2 Dia x 7.31 Lg
(Superseded to 711-3314A)

$27.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3006

Nut, Hex, 1/4-20

$4.99

$

In Stock, Qty 11

0

20

Cub Cadet 712-3048

Nut, Hex Jam, 1/2-13 GR5

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3083

Nut, Hex Insert Lock, 1/2-13

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 714-3004

Pin, Cotter, 3/32 x 1.25

$5.49

$

In Stock, only 4 left!

0

23

Cub Cadet 715-3003

Pin, Spiral Spring, 3/16 x .75

$7.49

$

In Stock, Qty 5

0

24

Cub Cadet 726-0106

Cap, Speed Nut

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-1032B

Deflector Assy
(Superseded to 631-05229)

Note: (Incl. Ref #5, 13, 24, 28)

$86.99

$

In Stock, Qty 20+

0

26

Cub Cadet 731-3005

Roller

$30.99

$

In Stock, Qty 20+

0

27

Cub Cadet 732-0262

Spring, Extension, .88 OD x 6.12
(Superseded to 932-0262)

$

$

Not available

28

Cub Cadet 732-0602A

Spring, Torsion

$12.99

$

In Stock, only 4 left!

0

29

Cub Cadet 732-3115

Spring, Extension, 1.25 OD x 8.15

$

$

Not available

30

Cub Cadet 732-3127

Spring, Compression
(Superseded to 932-3127)

$4.99

$

In Stock, Qty 13

0

31

Cub Cadet 734-0973

Wheel, Deck, 5 in. Dia
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0105

Washer, Bell, .401 x .870 x .063

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0272

Washer, Flat, .510 x 1.0 x .060

$5.49

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.99

$

In Stock, Qty 14

0

36

Cub Cadet 738-0143

Bolt, Shoulder, .498 Dia x .340 Lg

$4.49

$

In Stock, Qty 19

0

37

Cub Cadet 738-0507B

Bolt, Shoulder, .50 Dia x .434 Lg

$4.99

$

In Stock, Qty 14

0

38

Cub Cadet 738-0533

Bolt, Shoulder, .498 Dia x 1.64 Lg

$8.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 738-0572

Bolt, Shoulder, .375 Dia x 1.16 Lg

$8.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 747-3172

Rod, Front Lift
(Superseded to 747-3172C)

$76.99

$

In Stock, Qty 8

0

41

Cub Cadet 747-3188

Pin, Mower Support

$36.99

$

In Stock, Qty 6

0

42

Cub Cadet 777S30145

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

43

Cub Cadet 710-0599

Screw, Self Tapping, 1/4-20 x.5

Note: (Mfg Date 1040 and After)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 783-1146A

Skirt, Deck
(Superseded to 753-0884)

Note: (Mfg Date 1040 and After)

Variations

783-1146A-0637

Cub Cadet 783-1146A-0637

Deck Skirt Kit, 42" - POWDER BLACK (0637)

$87.99

$

In Stock, only 2 left!

0

$87.99

$

In Stock, only 2 left!

0

45

Cub Cadet 726-0233

Nut, Push, 1/4

$4.49

$

In Stock, Qty 20+

0
