214 IP (51B-330-195) - MTD Pro Walk-Behind Mower Wheel Component & Bearings Parts Diagram

Pro Walk-Behind Mower

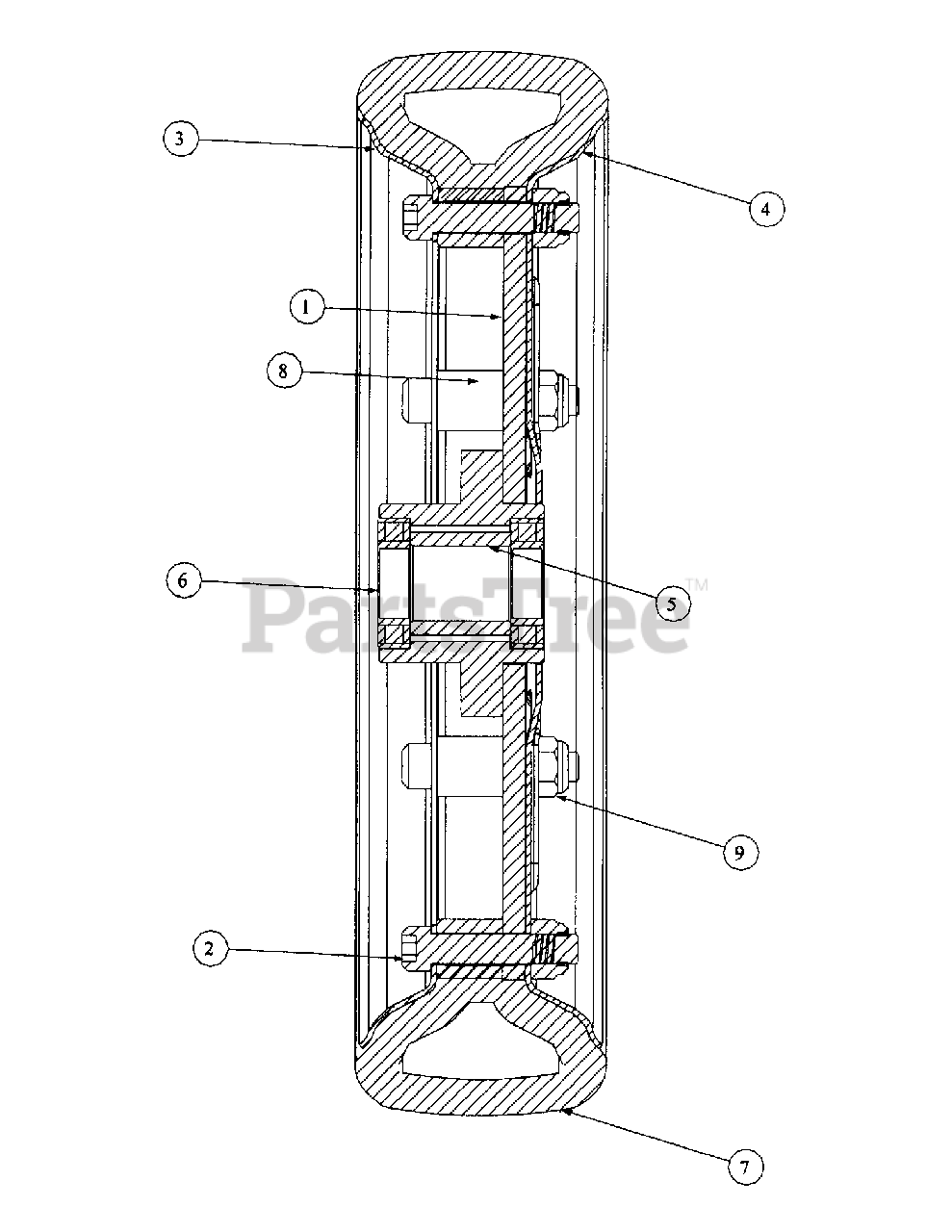

Wheel Component & Bearings Parts Diagram

  • Title

1

MTD 01002855

Hub Assembly w/Plate

Note: NLA

$

$

Currently unavailable

2

MTD 01002540

Socket Screw, 1/4-20 x 1.25

$

$

Not available

3

MTD 01004365

Wheel Rim, Inner Half

Note: NLA

$

$

Currently unavailable

4

MTD 01004366

Wheel Rim, Outer Half

Note: NLA

$

$

Currently unavailable

5

MTD 750-3065

Spacer, .635 I.D x .86 LG.

$9.49

$

Usually ships in 3-6 days

0

6

MTD 01000916

Ball Bearing, 15mm x 28mm x 7mm

$

$

Not available

7

MTD 01000915

Tire, 9 x 2.125 ATT

$

$

Not available

8

MTD 01000799

Spacer, .265 x .500 x .562

$8.99

$

Usually ships in 3-6 days

0

9

MTD 712-0324

Nut, Hex, 1/4-20, Lock

$3.49

$

In Stock, Qty 20+

0
