2140 (135-232G100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Steering Parts Diagram

Garden Tractor

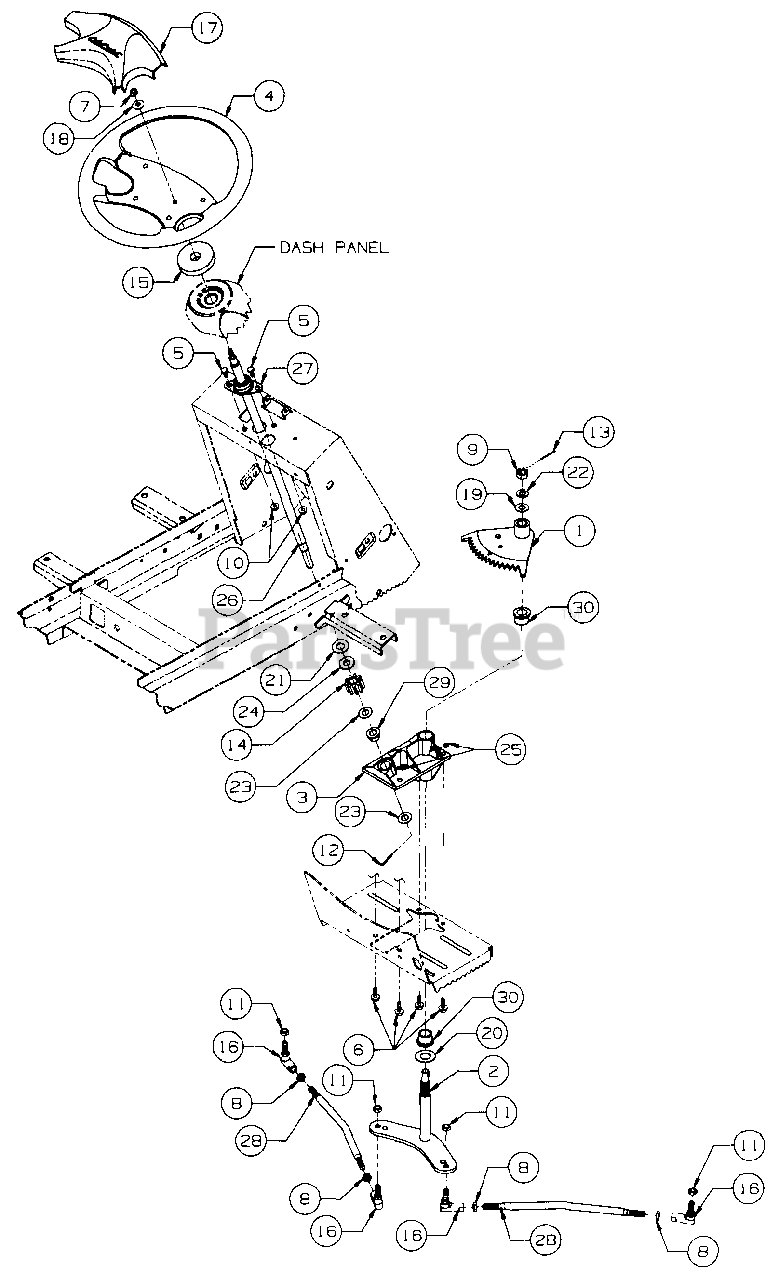

Steering Parts Diagram

  • Title

1

Cub Cadet 603-0250

Segment Assy, 18T - Steering

$138.99

$

In Stock, only 2 left!

0

2

Cub Cadet 603-0064

Arm Assy, Lower Steering

$

$

Not available

3

Cub Cadet 603-0236

Housing Assy, Steering
(Superseded to 919-04079)

Note: Includes Ref No. 25 (Qty 2), 29 (Qty 1) & 30 (Qty 2)

$

$

Not available

4

Cub Cadet 631-0005

Wheel, Steering
(Superseded to 931-0005)

$

$

Not available

5

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 x .62 Lg
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0601

Screw, Hex Wash Sf-Tapp 5/16-18 x .75 Lg
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0237

Nut, Hex Center Lock, 5/16-24

$5.49

$

In Stock, only 2 left!

0

8

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3001)

$7.49

$

In Stock, Qty 16

0

9

Cub Cadet 712-3012

Nut, Hex Slotted, 1/2-20 GR5
(Superseded to 912-3012)

$13.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24 GR5

$4.49

$

In Stock, Qty 18

0

12

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia x 1.0 Lg

$4.49

$

In Stock, only 1 left!

0

13

Cub Cadet 714-3004

Pin, Cotter, 3/32 Dia x 1.25 Lg

$5.49

$

In Stock, only 4 left!

0

14

Cub Cadet 717-3382

Pinion, Steering
(Superseded to 717-3382A)

$58.99

$

In Stock, only 2 left!

0

15

Cub Cadet 722-3019

Gasket, Steering

$10.99

$

In Stock, only 4 left!

0

16

Cub Cadet 723-0156

Joint, Ball, 3/8-24
(Superseded to 923-0156)

$17.99

$

In Stock, Qty 20+

0

17

Cub Cadet 731-3139

Insert, Steering Wheel, Cub Cadet

$

$

Not available

18

Cub Cadet 736-0242

Washer, Bell, .340 x .88 x .06 Thk

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0272

Washer, Flat, .510 x 1.0 x .06 Thk

$5.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0188

Washer, Flat, .760 x 1.50 x .030 Thk

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0355

Washer, Flat, .56 x 1.0 x .040 Thk

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.99

$

In Stock, Qty 16

0

23

Cub Cadet 736-3013

Washer, Flat, .531 x 1.0 x .027 Thk

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-3132

Washer, Rubber Flat, .50 x 1.12 x .125 Thk

$7.49

$

In Stock, Qty 8

0

25

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive Type
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 738-3105

Shaft, Steering

$

$

Not available

27

Cub Cadet 741-3025

Bearing, Flange

$

$

Not available

28

Cub Cadet 747-3171

Rod, Tie

$33.99

$

In Stock, Qty 11

0

29

Cub Cadet 748-0108

Bearing, Flange, .503 ID
(Superseded to 948-0108)

$9.49

$

In Stock, Qty 17

0

30

Cub Cadet 748-3007A

Bearing, Bronze Flange, .75 ID
(Superseded to 948-3007A)

$16.99

$

In Stock, Qty 5

0
