21406T-2 (80059) - Snapper 21" Walk-Behind Mower, 4hp Handles & Controls Parts Diagram

21" Walk-Behind Mower, 4hp

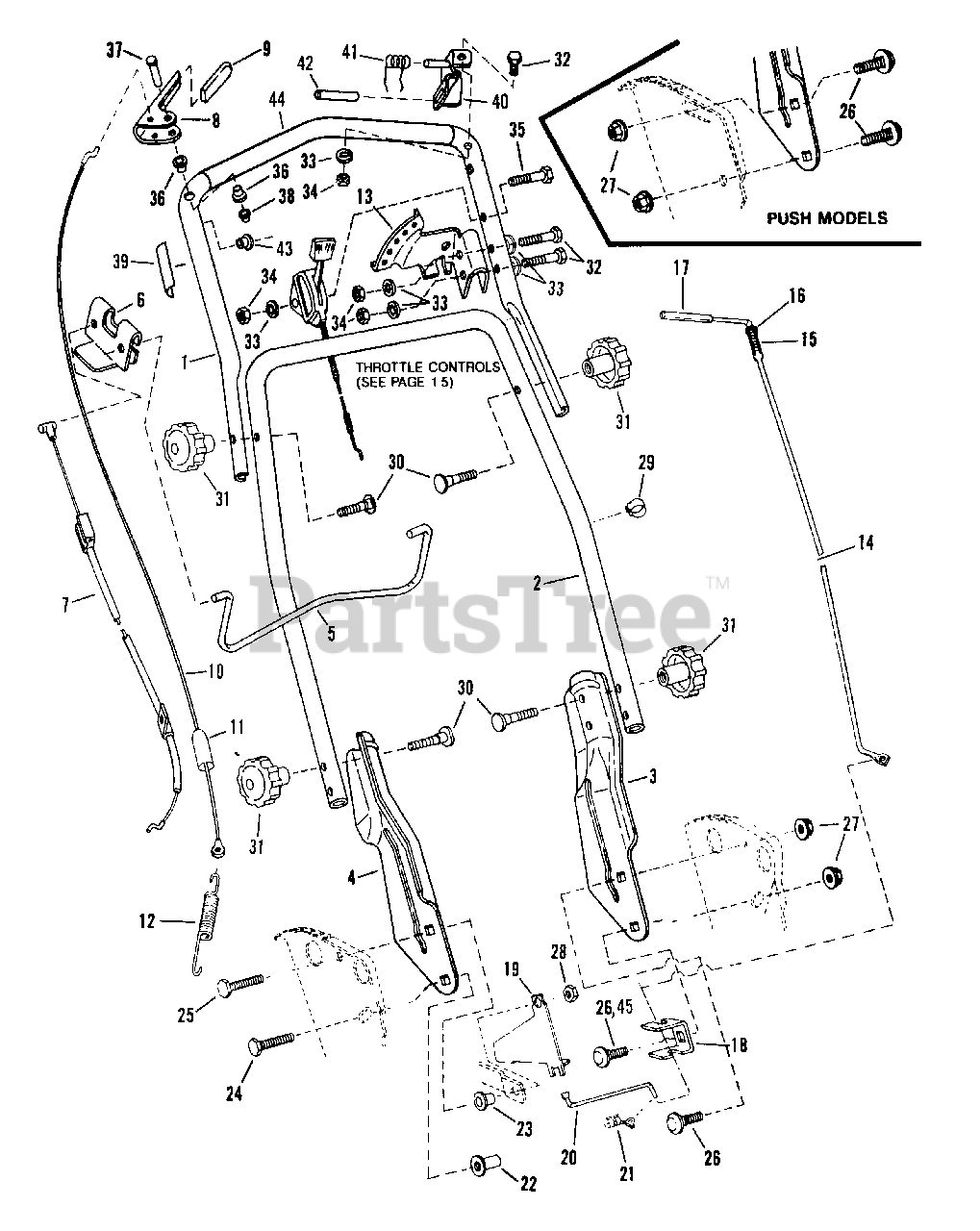

Handles & Controls Parts Diagram

  • Title

1

Snapper 7036357

HANDLE, Upper
(Superseded to 7036357YP)

Note: Self-propelled

$94.99

$

Usually ships in 2-12 days

0

Snapper 7036203

HANDLE, Upper

Note: Push

$

$

Not available

2

Snapper 7036350

HANDLE, Middle

Note: All

$

$

Not available

3

Snapper 7046502

HANDLE, Lower Left Hand
(Superseded to 7046502YP)

Note: Was 38467, Used on All

$56.99

$

In Stock, only 1 left!

0

4

Snapper 7035342

HANDLE, Lower Right Hand
(Superseded to 7035342YP)

Note: Was 38466, Used on All

$43.99

$

In Stock, only 2 left!

0

5

Snapper 7019762

CONTROL, Blade

Note: All

$

$

Currently unavailable

6

Snapper 7032445

CLIP, Blade Control
(Superseded to 7032445YP)

Note: All

$34.99

$

Usually ships in 2-12 days

0

7

Snapper 7019255

CABLE, Blade Control

Note: All

$

$

Not available

8

Snapper 7032826

HANDLE, Wheel Drive
(Superseded to 7074473BMYP)

Note: Self-propelled

$16.99

$

In Stock, Qty 18

0

9

Snapper 7014307

GRIP, Wheel Drive Handle
(Superseded to 7014307YP)

Note: Self-propelled

$4.49

$

In Stock, only 2 left!

0

10

Snapper 7023134

CABLE, Clutch Pull (Z-BEND)
(Superseded to 7023134YP)

Note: All; (Incl. item 11)

$18.99

$

Usually ships in 2-12 days

0

11

Snapper 7012121

COVER, Vinyl
(Superseded to 7012121YP)

Note: Self-propelled (Part of item 10)

$1.99

$

Usually ships in 2-12 days

0

12

Snapper 7012122

SPRING, Clutch
(Superseded to 7012122YP)

Note: Self-propelled

$9.49

$

In Stock, Qty 20+

0

13

Snapper 7038478

SECTOR, Speed
(Superseded to 7038478YP)

Note: Self-propelled

$82.99

$

Usually ships in 2-12 days

0

14

Snapper 7023795

LEVER, Speed Control

Note: Self-propelled

$

$

Not available

15

Snapper 7012093

SPRING, Speed Control
(Superseded to 7012093YP)

Note: Self-propelled

$4.49

$

In Stock, only 4 left!

0

16

Snapper 7090188

WASHER, 3/8" Flat
(Superseded to 703350)

Note: All-different locations

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7023801

GRIP, Speed Control Handle
(Superseded to 7023801YP)

Note: Self-propelled

$4.49

$

In Stock, Qty 6

0

18

Snapper 7032830

ANCHOR, Speed Control
(Superseded to 7032830YP)

Note: Self-propelled

$26.99

$

In Stock, only 1 left!

0

19

Snapper 7032408

GUIDE, Lower V-Belt
(Superseded to 7032408YP)

Note: Self-propelled

$26.99

$

Usually ships in 2-12 days

0

20

Snapper 7023790

ROD, Transfer
(Superseded to 7023790YP)

Note: Self-propelled

$9.49

$

In Stock, Qty 6

0

21

Snapper 7010937

CLIP, Transfer Rod
(Superseded to 7010937YP)

Note: Self-propelled

$7.49

$

In Stock, Qty 9

0

22

Snapper 7090895

TEE-NUT, 5/16-18
(Superseded to 7090895YP)

Note: Self-propelled

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7012114

BUSHING, Differential
(Superseded to 7012114SM)

Note: Self-propelled

$4.99

$

In Stock, Qty 12

0

24

Snapper 7090595

BOLT, 5/16-18 x 3/4 Flange Lock
(Superseded to 703354)

Note: Self-propelled

$5.49

$

In Stock, Qty 12

0

25

Snapper 7090238

CAPSCREW, 5/16-24 x 1
(Superseded to 703301)

Note: Self-propelled

$3.99

$

In Stock, Qty 6

0

26

Snapper 7090799

BOLT, 5/16-18 x 5/8 Carriage
(Superseded to 703447)

Note: Was 91026 (All (different locations)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585 (All (different locations))

$5.49

$

In Stock, Qty 20+

0

28

Snapper 7090222

NUT, 5/16-24 Center Lock
(Superseded to 703896)

Note: Self-propelled

$3.49

$

In Stock, Qty 8

0

29

Snapper 7023813

CLIP Cable/Wiring
(Superseded to 7023813SM)

Note: All

$3.49

$

In Stock, Qty 10

0

30

Snapper 7091013

SCREW,5/16-18 x 1-7/8 Curved Head
(Superseded to 7091013SM)

Note: All

$5.49

$

In Stock, only 2 left!

0

31

Snapper 7023735

KNOB, 5/16-18
(Superseded to 7105085YP)

Note: All

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7091025

CAPSCREW, 1/4-28 x 1-3/8
(Superseded to 7091025YP)

Note: Self-propelled

$3.99

$

Usually ships in 2-12 days

0

33

Snapper 7090053

LOCKWASHER, 1/4 Internal Tooth
(Superseded to 703462)

Note: Was 91023 (All (different locations)

$4.49

$

In Stock, Qty 13

0

34

Snapper 7090095

NUT, 1/4-20 Hex
(Superseded to 7090095FS)

Note: Was 91024 (All (different locations)

$3.49

$

Usually ships in 2-12 days

0

35

Snapper 7091022

CAPSCREW, 1/4-28 x 1-3/4

Note: All (throttle control)

$

$

Not available

36

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

Note: All

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7023792

PIN, Clutch Handle
(Superseded to 704031)

Note: Self-propelled

$3.99

$

In Stock, Qty 10

0

38

Snapper 7091020

PUSH-NUT
(Superseded to 7091020YP)

Note: (For handle pin); Self-propelled

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7023746

DECAL, Blade Control

Note: All (See "Decals" illustration and part list.)

$

$

Not available

40

Snapper 7051904

ASSEMBLY, Blade Control Bracket
(Superseded to 7051904YP)

Note: All

$26.99

$

Usually ships in 2-12 days

0

41

Snapper 7015108

SPRING, Blade Control
(Superseded to 7015108YP)

Note: All

$12.99

$

Usually ships in 2-12 days

0

42

Snapper 7014946

GRIP, Pivot

Note: All

$

$

Not available

43

Snapper 7015092

BUSHING

Note: All

$

$

Not available

44

Snapper 7022460

GRIP, Foam

Note: Was 23902, All

$

$

Not available

45

Snapper 7091077

BOLT, 5/16-18 x 5/8" Carriage
(Superseded to 7091077YP)

Note: Self-Propelled

$

$

Not available
