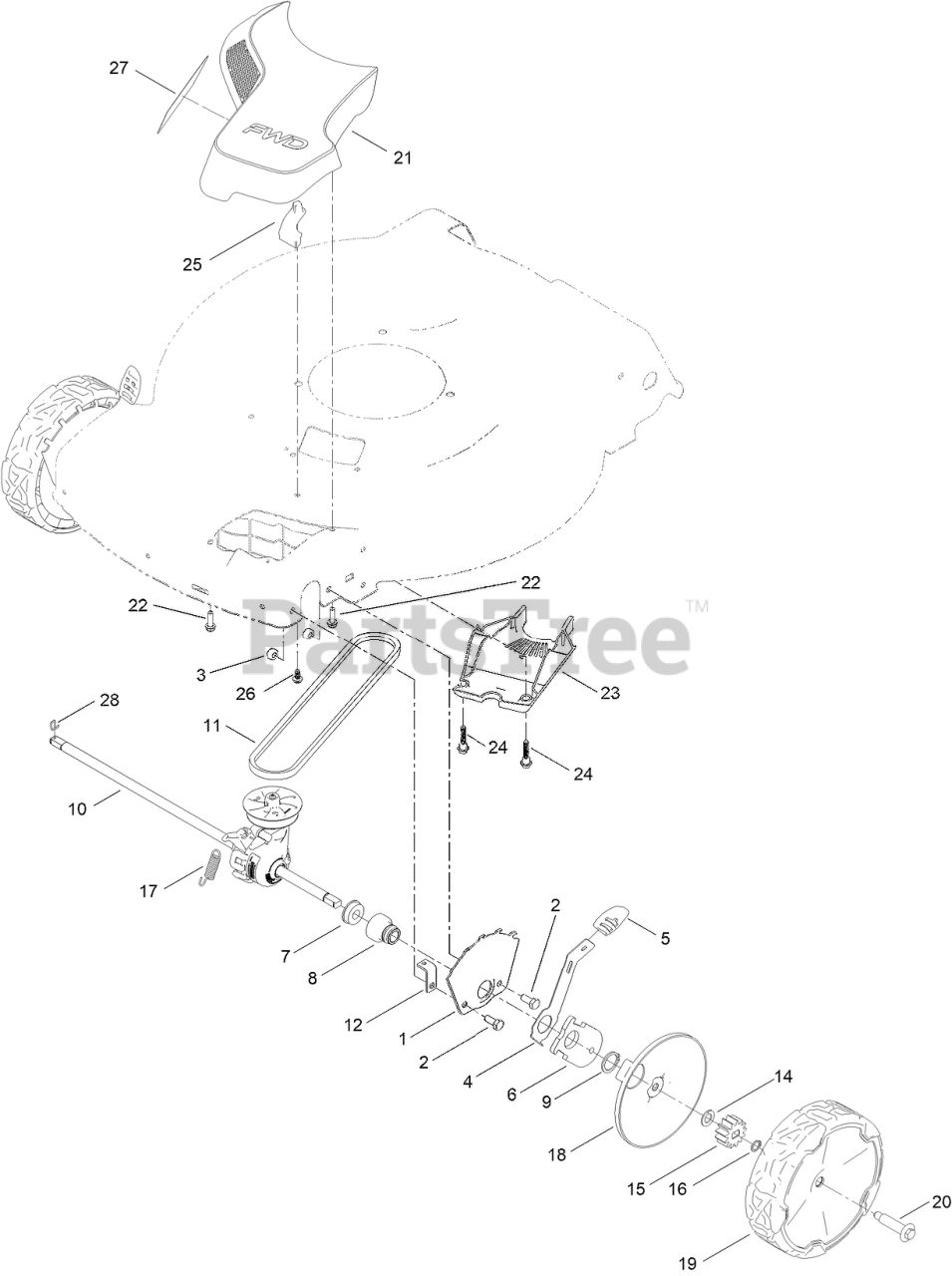

21442 - Toro 22" Recycler Walk-Behind Mower (SN: 411994988 - 412899999) Front Wheel and Height-of-Cut Assembly Parts Diagram

22" Recycler Walk-Behind Mower

Front Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 115-1956-05

PLATE-HOC,FRONT FSVQ WEDNESDAY

$9.99

$

Usually ships in 3-6 days

0

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 105-1809

ARM-SPRING

$11.99

$

In Stock, Qty 8

0

5

Toro 105-3042

KNOB-LEVER, HOC

$4.49

$

In Stock, Qty 20+

0

6

Toro 137-9128

ARM-PIVOT, FRONT

$6.99

$

In Stock, Qty 20+

0

7

Toro 104-8699

BEARING-BALL

$4.49

$

In Stock, Qty 20+

0

8

Toro 131-0836

RETAINER-BEARING, HOC

$14.99

$

In Stock, Qty 5

0

9

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

10

Toro 139-6562

TRANSMISSION-FWD

$100.99

$

Usually ships in 3-6 days

0

11

Toro 117-1018

V-BELT

$18.99

$

In Stock, Qty 20+

0

12

Toro 144-6392

TAB-MOUNT, CABLE

$1.99

$

Usually ships in 3-6 days

0

14

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

15

Toro 131-0896

GEAR-PINION, 13T

$6.99

$

In Stock, Qty 20+

0

16

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

17

Toro 145-3863

SPRING-EXTENSION

$1.49

$

Usually ships in 3-6 days

0

18

Toro 140-2364

ASM-COVER, WHEEL (DK GRAY)

$6.99

$

In Stock, only 2 left!

0

19

Toro 140-2358

ASM-8" WHEEL, FWD (BUSHINGS)

$29.99

$

In Stock, Qty 11

0

20

Toro 145-3899

WHEEL BOLT

$1.99

$

In Stock, Qty 20+

0

21

Toro 144-0215

ASM-INTAKE, FWD

$13.99

$

Usually ships in 3-6 days

0

22

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

23

Toro 140-2389

COVER-BELT, LOWER (AWD)

$5.49

$

Usually ships in 3-6 days

0

24

Toro 131-0837

SCREW-SHOULDER, HHF

$1.99

$

In Stock, Qty 20+

0

25

Toro 144-6371

PAD-STOP

$1.49

$

Usually ships in 3-6 days

0

26

Toro 139-1679

SCREW-PLASTIC,PH

$0.99

$

Usually ships in 3-6 days

0

27

Toro 140-4186

DECAL

$3.99

$

Usually ships in 3-6 days

0

28

Toro 130-2369

PIN-SNAP

$1.49

$

In Stock, Qty 20+

0
