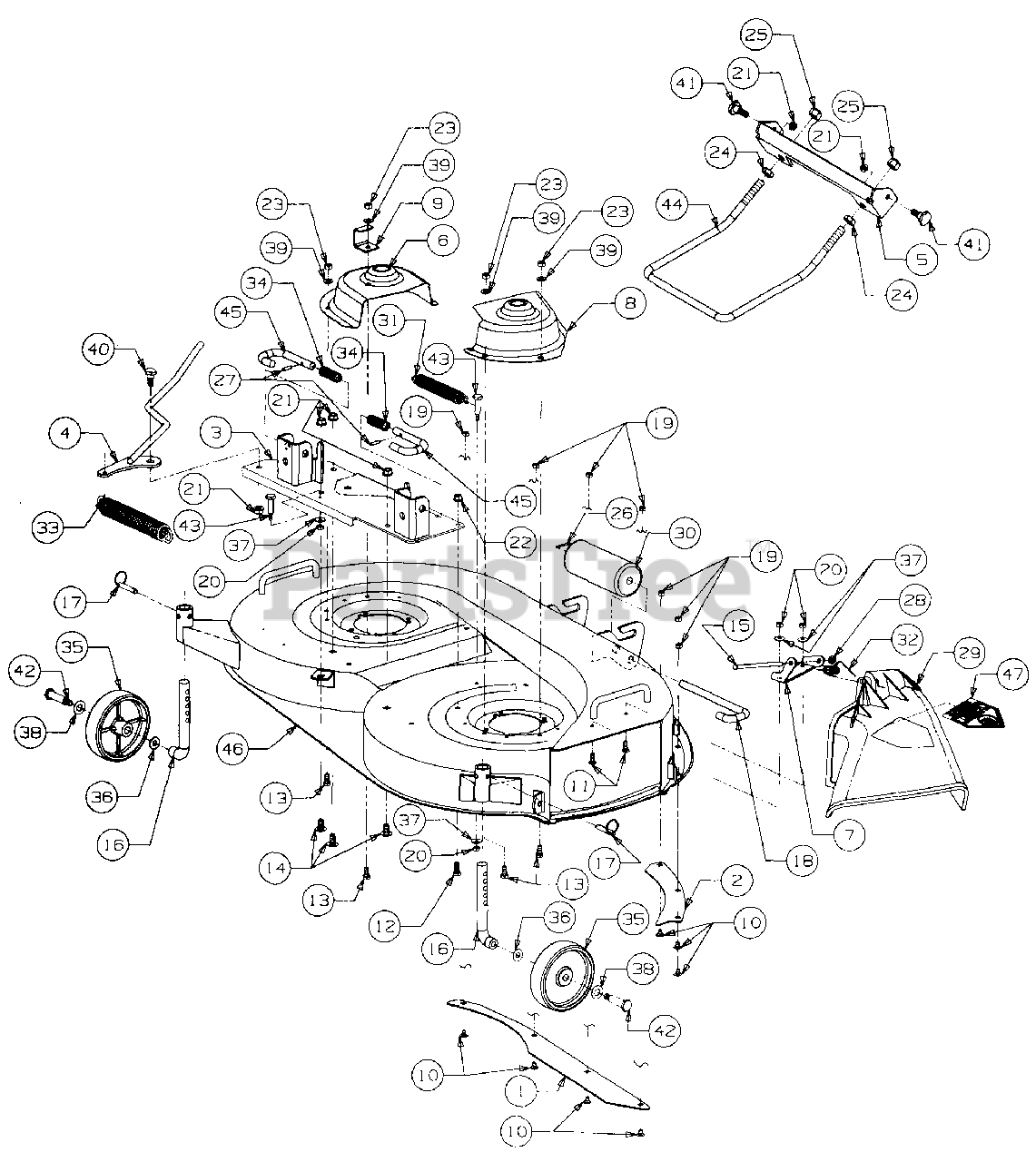

2145 (134-234G100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) 42" Deck Assembly Parts Diagram

Garden Tractor

42" Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 17861A

Skirt, Extension
(Superseded to 17861A-0637)

$

$

Not available

2

Cub Cadet 17961

Skirt, Short
(Superseded to 17961-0637)

Variations

Cub Cadet 17961-0637

Skirt Deck Extension Sho - POWDER BLACK (0637)

$12.99

$

In Stock, only 1 left!

0

$12.99

$

In Stock, only 1 left!

0

3

Cub Cadet 603-0181

Plate Assy, Mounting
(Superseded to 603-0181B)

Variations

Cub Cadet 603-0181-0498

USE 603-0181B-0716 PLATE ASM- - OLD CUB YELLOW (0498)

$192.99

$

Usually ships in 3-6 days

0

$155.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-0199

Handle, Tension

Variations

Cub Cadet 603-0199-0498

USE 603-0199-0716 HANDLE TEN - OLD CUB YELLOW (0498)

$50.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0199-0716

HANDLE TENSION - CUB YELLOW-99 (0716)

$50.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0199-0637

HANDLE TENSION - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-0199-4021

TENSION HANDLE - CUB YELLOW 2 (4021)

$

$

Not available

$50.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-0200

Bracket, Front Lift
(Superseded to 703-2248)

Variations

Cub Cadet 603-0200-0498

Front Lift Bracket - OLD CUB YELLOW (0498)

$44.99

$

In Stock, Qty 7

0

Cub Cadet 603-0200-0716

Front Lift Bracket - CUB YELLOW-99 (0716)

$44.99

$

In Stock, Qty 7

0

$35.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-1651A

Cover, LH Belt
(Superseded to 703-1651A-4021)

Variations

Cub Cadet 703-1651A-4021

Belt Cover, LH - CUB YELLOW 2 (4021)

$

$

Not available

$

$

7

Cub Cadet 703-1693

Bracket, Hinge Mtg
(Superseded to 703-1693A)

$21.99

$

In Stock, only 4 left!

0

8

Cub Cadet 703-2182

Cover, RH Belt
(Superseded to 703-3237-4021)

Variations

Cub Cadet 703-2182-0498

Belt Cover, RH Yellow - OLD CUB YELLOW (0498)

$61.99

$

In Stock, only 2 left!

0

$61.99

$

In Stock, only 2 left!

0

9

Cub Cadet 703-2559

Bracket, Handle Stop

Variations

Cub Cadet 703-2559-0498

Stop Bracket - OLD CUB YELLOW (0498)

$26.99

$

In Stock, only 1 left!

0

Cub Cadet 703-2559-0716

Stop Bracket - CUB YELLOW-99 (0716)

$26.99

$

In Stock, only 1 left!

0

Cub Cadet 703-2559-0637

Stop Bracket - POWDER BLACK (0637)

$26.99

$

In Stock, only 1 left!

0

Cub Cadet 703-2559-0648

Stop Bracket - TECH GRAY (0648)

$26.99

$

In Stock, only 1 left!

0

Cub Cadet 703-2559-4021

BRACKET-STOP - CUB YELLOW 2 (4021)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0167

Bolt, Carriage, 1/4-20 x .50 Lg
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 x .62 Lg GR2
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 Lg GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3021

Screw, Hex Cutting, 5/16-18 x .62 Lg

$

$

Not available

14

Cub Cadet 710-3178

Bolt, Sht Nk Carriage, 3/8-16 x .75 Lg GR5

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 711-0792

Pin, Hinge, .25 Dia x 6.75 Lg
(Superseded to 911-0792)

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 711-3256

Axle, Deck

$71.99

$

In Stock, Qty 17

0

17

Cub Cadet 711-3266

Pin, Clevis w/Ball Detent

$13.99

$

In Stock, Qty 20+

0

18

Cub Cadet 711-3314

Pin, Roller, 1/2 Dia x 7.31 Lg
(Superseded to 711-3314A)

$23.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0287

Nut, Hex, 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

21

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3004A

Nut, Hex Flange Top Lock 5/16-18

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 712-3048

Nut, Hex Jam, 1/2-13 GR5

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 712-3083

Nut, Hex Top Nylon Lock 1/2-13

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia x 1.0 Lg

$3.99

$

In Stock, only 1 left!

0

27

Cub Cadet 715-3003

Pin, Spirol Spring, 3/16 Dia x .75 Lg

$6.49

$

In Stock, Qty 11

0

28

Cub Cadet 726-0106

Cap, Speed Nut

$3.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 731-1032

Deflector Assy, Chute
(Superseded to 631-05229)

$77.99

$

In Stock, Qty 19

0

30

Cub Cadet 731-3005

Roller

$26.99

$

In Stock, Qty 20+

0

31

Cub Cadet 732-0262

Spring, Extension, .88 OD x 6.12
(Superseded to 932-0262)

$20.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 732-0602

Spring, Torsion
(Superseded to 732-0602A)

$11.99

$

In Stock, Qty 5

0

33

Cub Cadet 732-3115

Spring, Extension, 1.25 OD x 8.15 Lg

$28.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 732-3127

Spring, Compression
(Superseded to 932-3127)

$4.49

$

In Stock, Qty 19

0

35

Cub Cadet 734-0973

Wheel, Deck, 5 in. Dia

$12.99

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0105

Washer, Bell, .380 x .88 x .062 Thk

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062 Thk

$3.99

$

In Stock, Qty 13

0

38

Cub Cadet 736-0272

Washer, Flat, .510 x 1.0 x .060 Thk

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0275

Washer, Flat, .34 x .68 x .062 Thk

$6.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 738-0143

Bolt, Shoulder, .498 Dia x .340 Lg

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 738-0507B

Bolt, Shoulder, .50 Dia x .434 Lg

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 738-0533

Bolt, Shoulder, .498 Dia x 1.64 Lg

$7.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 738-0572

Bolt, Shoulder, .375 Dia x 1.16 Lg

$7.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 747-3172

Rod, Front Lift
(Superseded to 747-3172C)

$66.99

$

In Stock, Qty 9

0

45

Cub Cadet 747-3188

Pin, Mower Support

$32.99

$

In Stock, Qty 5

0

46

Cub Cadet 759-3731

Deck Assy w/Graphics

$

$

Currently unavailable

Cub Cadet 777-9192A

Graphic, Rider Danger
(Superseded to 777S30018)

$7.99

$

In Stock, only 1 left!

0

Cub Cadet 777-1043

Graphic, Man & Machine

$

$

Not available

Cub Cadet 777-9341

Graphic, Assemble Chute
(Superseded to 777S30295)

$19.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 777-2196

Graphic, Danger
(Superseded to 977S30145)

$9.49

$

In Stock, only 1 left!

0
