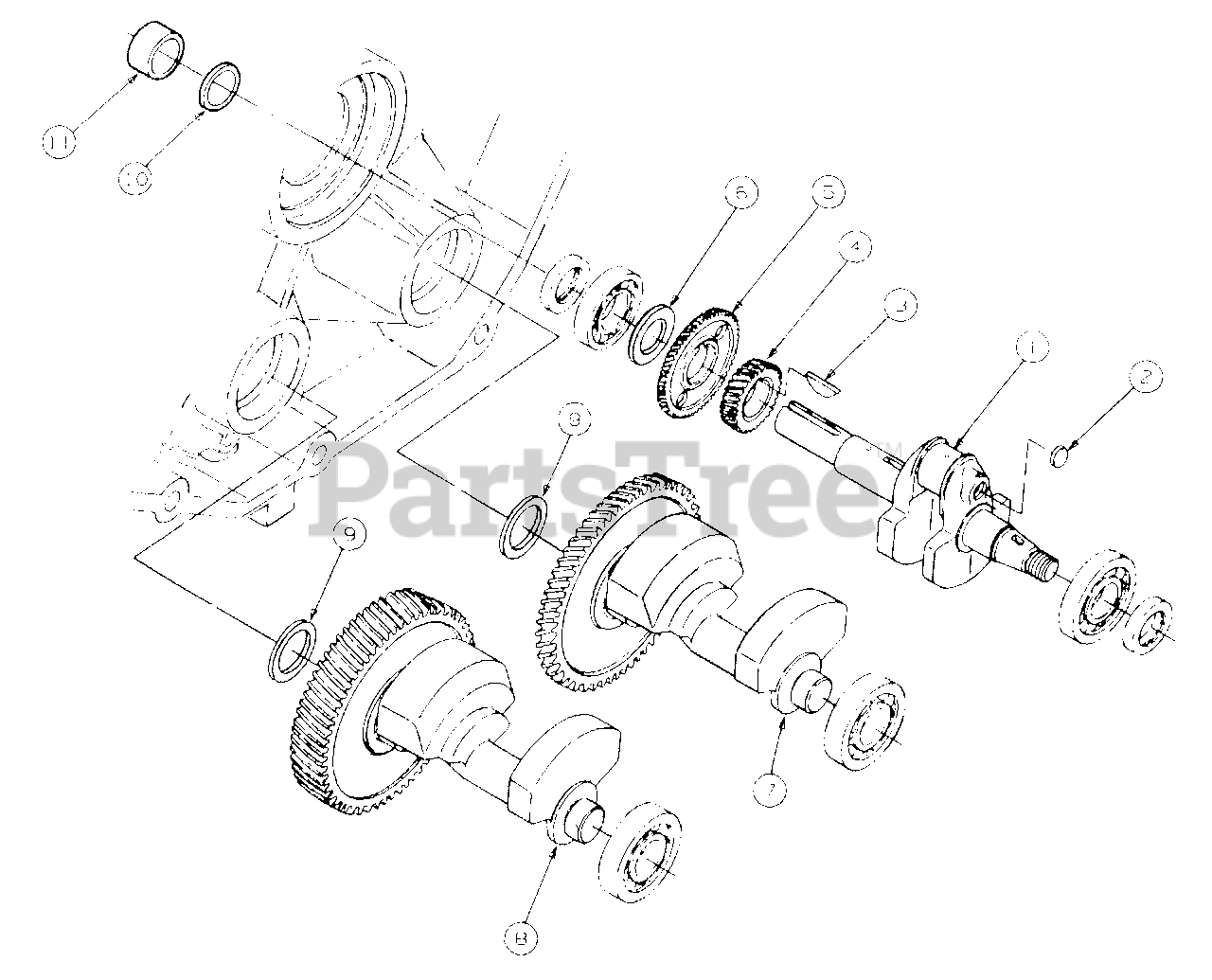

2145 (134-234G100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Crankshaft Parts Diagram

Garden Tractor

Crankshaft Parts Diagram

  • Title

1

Cub Cadet ME-104-1832-04

Crankshaft Assy
(Superseded to ME-104-1925-01)

Note: (Used on engines w/factory code 11187) Includes Ref No. 2, 3, 4 & 5)

$

$

Not available

Cub Cadet ME-104-1832-07

Crankshaft Assy

Note: (Used on engines w/factory code 11187)

$

$

Not available

2

Cub Cadet ME-104-1718

Plug, Expansion

$

$

Not available

3

Cub Cadet ME-515-0293

Key, Crankshaft Gear

$

$

Not available

4

Cub Cadet ME-104-1856

Gear, Crankshaft

$

$

Not available

5

Cub Cadet ME-104-1855

Gear, Balancer

$

$

Not available

6

Cub Cadet ME-104-1721-01

Shim, Crankshaft 0.2 mm

$

$

Not available

Cub Cadet ME-104-1721-02

Shim, Crankshaft 0.3 mm

$

$

Not available

Cub Cadet ME-104-1721-03

Shim, Crankshaft 0.4 mm

$

$

Not available

Cub Cadet ME-104-1721-05

Shim, Crankshaft 0.5 mm

$

$

Not available

Cub Cadet ME-104-1721-07

Shim, Crankshaft 0.7 mm

$

$

Not available

Cub Cadet ME-104-1721-08

Shim, Crankshaft 0.8 mm

$

$

Not available

7

Cub Cadet ME-104-1816-04

Shaft Assy, Balancer

Note: (Includes gear)

$

$

Not available

8

Cub Cadet ME-104-1816-03

Shaft Assy, Balancer

Note: (Includes gear)

$

$

Not available

9

Cub Cadet ME-104-1809-01

Shim, Shaft, Balancer, 0.5 mm

$

$

Not available

Cub Cadet ME-104-1809-02

Shim, Shaft, Balancer, 0.6 mm

$

$

Not available

Cub Cadet ME-104-1809-03

Shim, Shaft, Balancer, 0.7 mm

$

$

Not available

Cub Cadet ME-104-1809-04

Shim, Shaft, Balancer, 0.8 mm

$

$

Not available

Cub Cadet ME-104-1809-05

Shim, Shaft, Balancer, 0.9 mm

$

$

Not available

Cub Cadet ME-104-1809-06

Shim, Shaft, Balancer, 1.0 mm

$

$

Not available

Cub Cadet ME-104-1809-07

Shim, Shaft, Balancer, 1.2 mm

$

$

Not available

10

Cub Cadet ME-526-0421

Washer, Spacer

$

$

Not available

11

Cub Cadet ME-104-1903

Spacer

$

$

Not available
