2146 XLS (960430067-00) - Husqvarna 46" Lawn Tractor (2008-12) Electrical Parts Diagram

46" Lawn Tractor

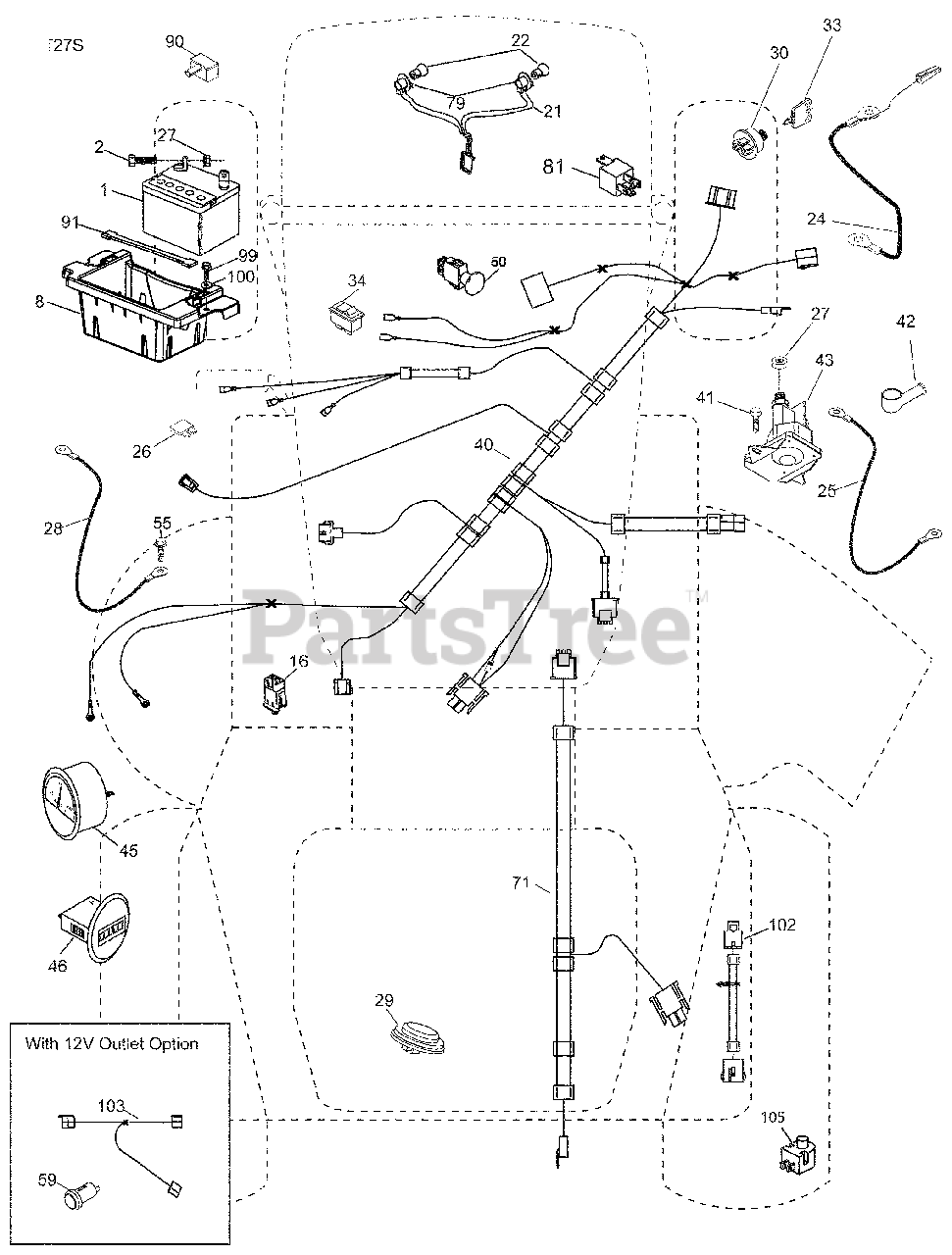

Electrical Parts Diagram

  • Title

1

Husqvarna 532163465

Battery
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

Bolt Hex Head 1/4-20 x 3/4

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532186491

Box Battery

$

$

Not available

16

Husqvarna 532176138

Switch Interlock Push-In

$15.99

$

In Stock, Qty 20+

0

21

Husqvarna 532183759

Harness Socket Light w/4152J

$47.99

$

In Stock, only 2 left!

0

22

Husqvarna 532004152

Bulb Light

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532400253

Cable Battery
(Superseded to 585555601)

$8.99

$

In Stock, Qty 14

0

25

Husqvarna 532412895

Cable Starter
(Superseded to 585555501)

$8.99

$

In Stock, Qty 8

0

26

Husqvarna 532175158

Fuse

$7.49

$

In Stock, Qty 12

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532145491

Cable, Ground

$10.99

$

In Stock, only 1 left!

0

29

Husqvarna 532401545

Switch, Seat

$39.99

$

In Stock, Qty 17

0

30

Husqvarna 532193350

Switch, Ign

$13.99

$

In Stock, Qty 20+

0

33

Husqvarna 532411935

Key\Chain

$10.99

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

Switch Light / Reset

$8.99

$

In Stock, Qty 11

0

40

Husqvarna 532425675

Harness Ign. Dash

$

$

Not available

41

Husqvarna 817720408

Screw Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover, Terminal
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532192507

Solenoid
(Superseded to 582042802)

$13.99

$

In Stock, Qty 20+

0

45

Husqvarna 532425270

Ammeter Gauge Round
(Superseded to 587553903)

$28.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532425271

Gauge Servicereminder Hrmtr
(Superseded to 587554003)

$

$

Not available

50

Husqvarna 532174651

Switch PTO
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

55

Husqvarna 817060512

Screw Thdrol 5/16-18 x 3/4 TYTT
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532400303

Outlet 12-Volt

$27.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532194276

Harness Ign.

$40.99

$

In Stock, only 1 left!

0

79

Husqvarna 532175242

Socket Asm Bulb Twistlock

$18.99

$

In Stock, only 2 left!

0

81

Husqvarna 532409615

Relay Harness Sealed

$34.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532400724

Cover Terminal

$4.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532190270

Strap Battery Mount

$9.99

$

In Stock, Qty 18

0

99

Husqvarna 817670412

Screw Hexwsh Thdrol 1/4-20 x 3/4

$6.49

$

In Stock, only 2 left!

0

100

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

102

Husqvarna 532404454

Harness Pigtail

$26.99

$

Usually ships in 3-10 days

0

103

Husqvarna 532421747

Harness 12-Volt Pigtail

$21.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532407568

Switch Reverse TT Pedal Control

$18.99

$

In Stock, only 1 left!

0
