21464 - Toro 22" Recycler Walk-Behind Mower (SN: 408000000 - 410018041) Rear Wheel and Height-of-Cut Assembly Parts Diagram

22" Recycler Walk-Behind Mower

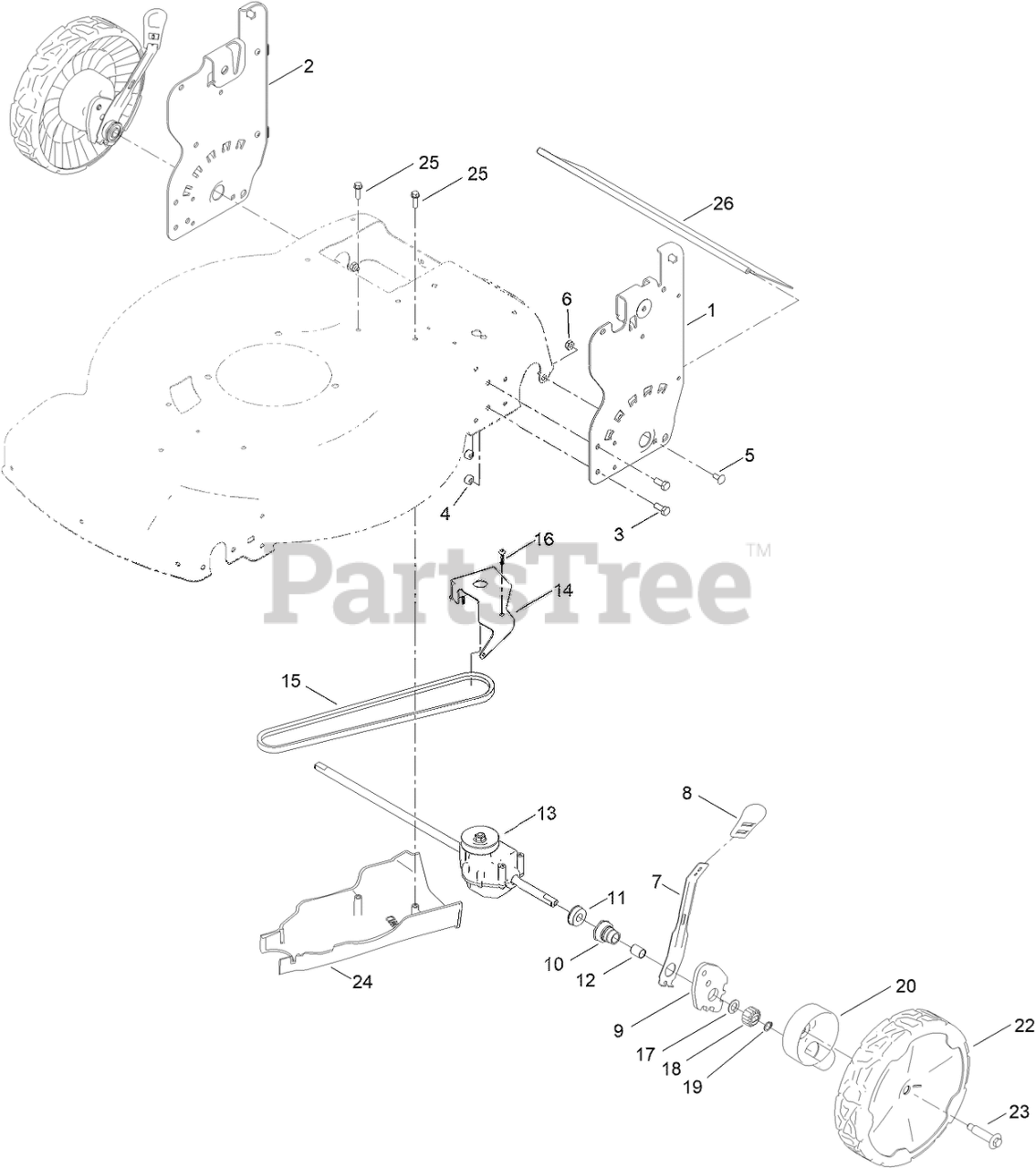

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 139-6591-05

PLATE-HOC, LH (ISO)
(Superseded to 144-6476-05)

$29.99

$

Usually ships in 3-6 days

0

2

Toro 139-6590-05

PLATE-HOC, RH (ISO)
(Superseded to 145-5650-05)

$29.99

$

In Stock, only 2 left!

0

3

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

6

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, Qty 8

0

7

Toro 132-4486

ARM-SPRING

$15.99

$

In Stock, only 2 left!

0

8

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

9

Toro 139-5451

ARM-PIVOT, REAR

$13.99

$

In Stock, Qty 7

0

10

Toro 108-9779

RETAINER-BUSHING, HOC

$14.99

$

In Stock, Qty 7

0

11

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 20+

0

12

Toro 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 16

0

13

Toro 139-6561

TRANSMISSION-RWD

$124.99

$

In Stock, only 2 left!

0

14

Toro 114-7977-03

BRACKET-TRANSMISSION

$14.99

$

In Stock, only 3 left!

0

15

Toro 140-4041

V-BELT

$19.99

$

In Stock, only 3 left!

0

16

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

17

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

18

Toro 131-5399

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

0

19

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

20

Toro 140-2362

ASM-COVER, GEAR (DK GRAY)

$4.49

$

In Stock, Qty 11

0

22

Toro 140-2350

ASM-9.65" WHEEL, GEARED

$36.99

$

In Stock, Qty 9

0

23

Toro 139-1789

WHEEL BOLT
(Superseded to 145-3899)

$1.99

$

In Stock, Qty 20+

0

24

Toro 139-5448

COVER-BELT, RWD

$8.99

$

In Stock, only 2 left!

0

25

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

26

Toro 139-6597

SHIELD-TRAILING
(Superseded to 145-5821)

$20.99

$

In Stock, Qty 6

0
