21467 - Toro 22" Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 400000000 - 999999999) Motor Module Assembly No. 147-0425 Parts Diagram

22" Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

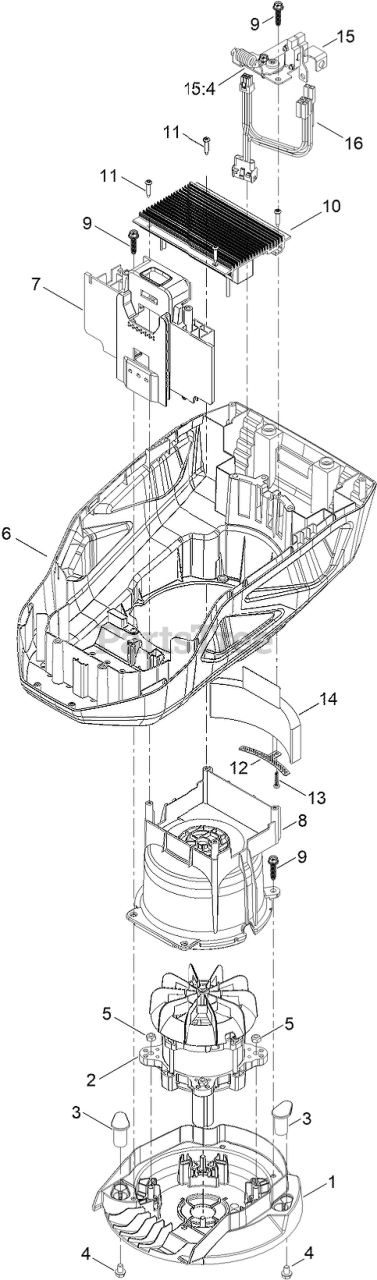

Motor Module Assembly No. 147-0425 Parts Diagram

  • Title

1

Toro 139-6628

BASE-MOUNT, MOTOR

$37.99

$

Usually ships in 3-6 days

0

2

Toro 140-4119

MOTOR-2KW

$263.99

$

Usually ships in 3-6 days

0

3

Toro 131-9732

INSERT-MOUNT, Motor

$14.99

$

Usually ships in 3-6 days

0

4

Toro 137-4795

SCREW

$1.49

$

In Stock, Qty 20+

0

5

Toro 115-7373

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

6

Toro 144-6441

SHROUD-LOWER

$33.99

$

Usually ships in 0 days

0

7

Toro 144-6446

MOUNT-BATTERY

$29.99

$

Usually ships in 0 days

0

8

Toro 139-6633

SHROUD-MOTOR

$27.99

$

Usually ships in 3-6 days

0

9

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, only 2 left!

0

10

Toro 147-0428

CONTROLLER-MOTOR

$169.99

$

Usually ships in 0 days

0

11

Toro 139-6642

SCREW

$0.99

$

In Stock, only 2 left!

0

12

Toro 145-3971

BRACKET-FOAM

$

$

Currently unavailable

13

Toro 138-3273

SCREW-PLASTIC, PPH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 145-3972

FOAM

$

$

Currently unavailable

15

Toro 133-1918

BAIL SWITCH ASM

$53.99

$

Usually ships in 3-6 days

0

15:4

Toro 145-5800

SPRING-EXTENSION

$6.99

$

Usually ships in 3-6 days

0

16

Toro 139-6637

HARNESS-WIRE

$22.99

$

Usually ships in 3-6 days

0
