21469 - Toro 22" Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 400000000 - 415399999) Housing Assembly Parts Diagram

22" Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

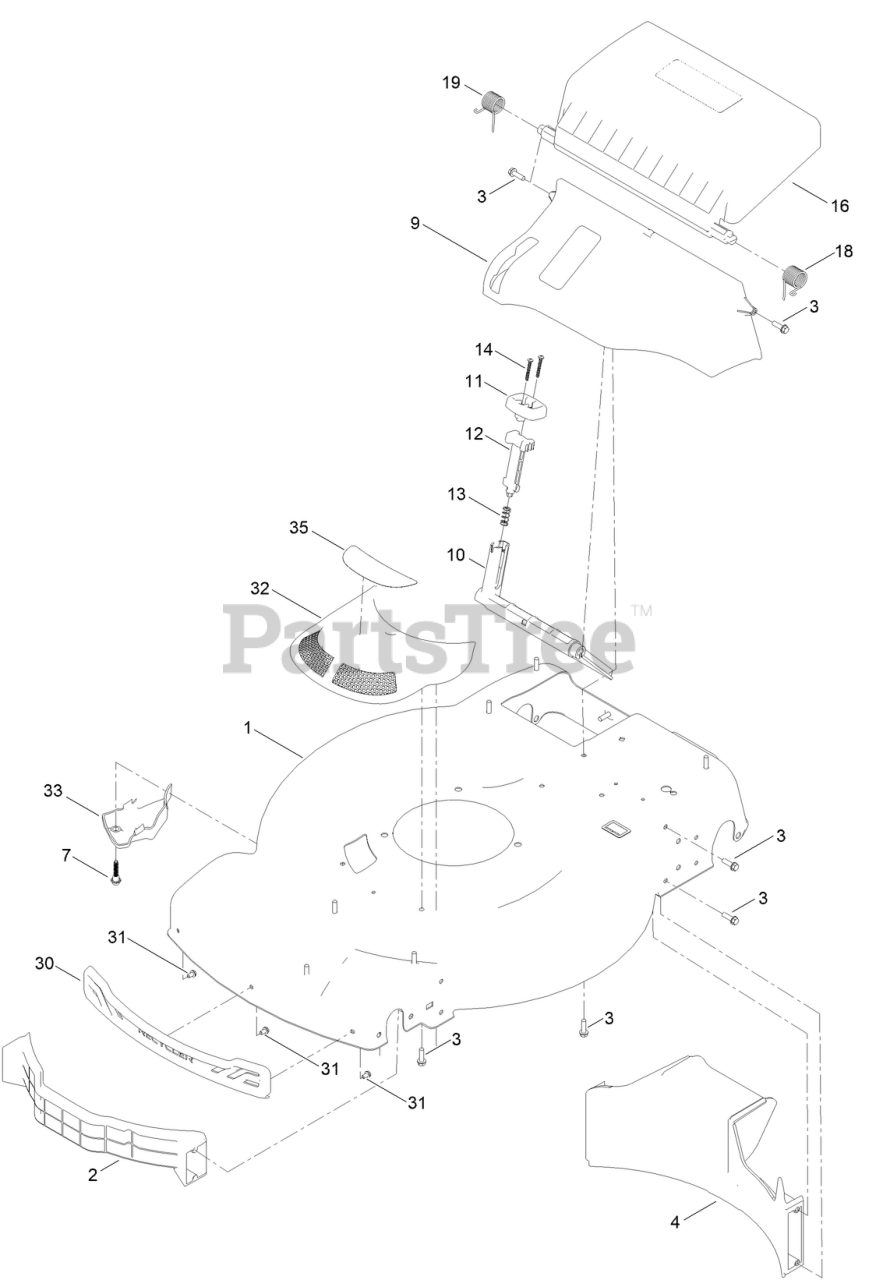

Housing Assembly Parts Diagram

  • Title

1

Toro 144-3192

HOUSING ASM

$201.99

$

Usually ships in 3-6 days

0

2

Toro 144-6427

BAFFLE-FRONT, DOMESTIC

$18.99

$

In Stock, Qty 20+

0

3

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

4

Toro 139-5440

BAFFLE-REAR, RWD

$15.99

$

In Stock, only 4 left!

0

7

Toro 140-4038

SCREW-SHOULDER,HWH

$

$

Currently unavailable

9

Toro 140-2368

ASM-CHUTE, IN MOLD

$21.99

$

In Stock, only 2 left!

0

10

Toro 139-5443

DEFLECTOR-RECYCLE

$7.49

$

Usually ships in 3-6 days

0

11

Toro 139-5444

KNOB-RECYCLE

$1.99

$

Usually ships in 3-6 days

0

12

Toro 139-5445

LATCH-RECYCLE

$3.99

$

Usually ships in 3-6 days

0

13

Toro 140-4192

SPRING-COMPRESSION

$0.99

$

Usually ships in 3-6 days

0

14

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

16

Toro 140-2396

ASM-REAR DOOR, IN-MOLD (60V)

$26.99

$

Usually ships in 3-6 days

0

18

Toro 139-5478

SPRING-TORSION, LH

$1.99

$

In Stock, Qty 7

0

19

Toro 139-5479

SPRING-TORSION, RH

$1.99

$

In Stock, Qty 5

0

30

Toro 139-5457

BUMPER-FRONT

$4.49

$

In Stock, only 2 left!

0

31

Toro 139-5467

SCREW-PLASTIC, HWH

$0.99

$

In Stock, only 3 left!

0

32

Toro 144-0210

ASM-INTAKE, RWD

$18.99

$

Usually ships in 3-6 days

0

33

Toro 140-2384

COVER-INTAKE, BOTTOM

$3.99

$

In Stock, only 2 left!

0

35

Toro 144-3182

DECAL-60V VORTEX TECHNOLOGY

$4.99

$

Usually ships in 3-6 days

0
