21493 - Toro 30" eTimeMaster 60V Walk-Behind Mower (SN: 400000000 - 999999999) Housing Assembly Parts Diagram

30" eTimeMaster 60V Walk-Behind Mower

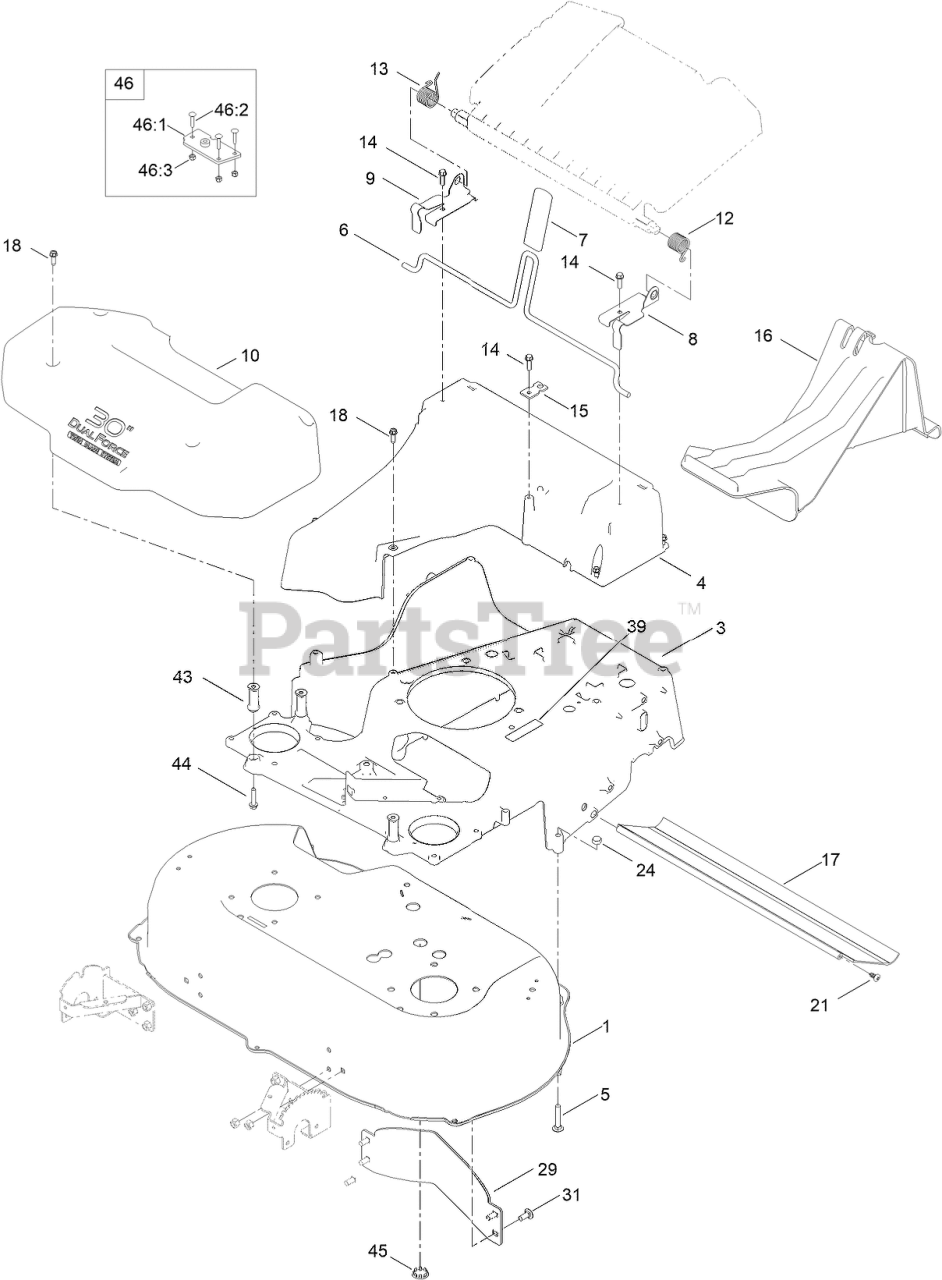

Housing Assembly Parts Diagram

  • Title

1

Toro 136-5873

HOUSING ASM

$347.99

$

Usually ships in 3-6 days

0

3

Toro 145-3985-01

FRAME-30IN, 60V

$216.99

$

Usually ships in 3-6 days

0

4

Toro 133-8177

CHUTE

$63.99

$

Usually ships in 3-6 days

0

5

Toro 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 20+

0

6

Toro 139-5415

ROD-RELEASE, HANDLE

$17.99

$

Usually ships in 3-6 days

0

7

Toro 120-7018

GRIP-LEVER

$4.49

$

In Stock, only 2 left!

0

8

Toro 121-9114

BRACKET-DOOR, LH

$20.99

$

Usually ships in 3-6 days

0

9

Toro 121-9115

BRACKET-DOOR, RH

$20.99

$

Usually ships in 3-6 days

0

10

Toro 145-5894

COVER-BELT

$54.99

$

Usually ships in 3-6 days

0

12

Toro 115-2859

SPRING-TORSION

$5.99

$

In Stock, Qty 12

0

13

Toro 114-7924

SPRING-TORSION

$3.99

$

In Stock, only 2 left!

0

14

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

15

Toro 138-3224

BRACKET-CABLE, TRACTION

$2.99

$

In Stock, only 3 left!

0

16

Toro 120-5225

PLUG-MULCH

$33.99

$

In Stock, Qty 18

0

17

Toro 120-6241

SHIELD-TRAILING

$17.99

$

In Stock, Qty 18

0

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

Toro 117-1092

SCREW-PTH
(Superseded to 139-1692)

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 130-2352-01

BAFFLE-CONTROL

$29.99

$

Usually ships in 3-6 days

0

31

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

39

Toro 133-8054

DECAL-PROP 65, SHORT, TRILINGUAL

$

$

Currently unavailable

43

Toro 140-3901

SPACER-FRAME, 30 IN.

$5.99

$

Usually ships in 3-6 days

0

44

Toro 108-4862

SCREW-HWHTF

$3.99

$

In Stock, only 3 left!

0

45

Toro 147-0471

PLUG-BUTTON

$

$

Currently unavailable

46

Toro 161-3140

FRAME-PLATE KIT

$

$

Currently unavailable

46:1

Toro 131-3141

PLATE-FRAME, ASM

$

$

Currently unavailable

46:2

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

46:3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
