215-386-132 - Lawnflite Tiller (1985) (Allied Hardware) Chain Case Assembly Parts Diagram

Tiller

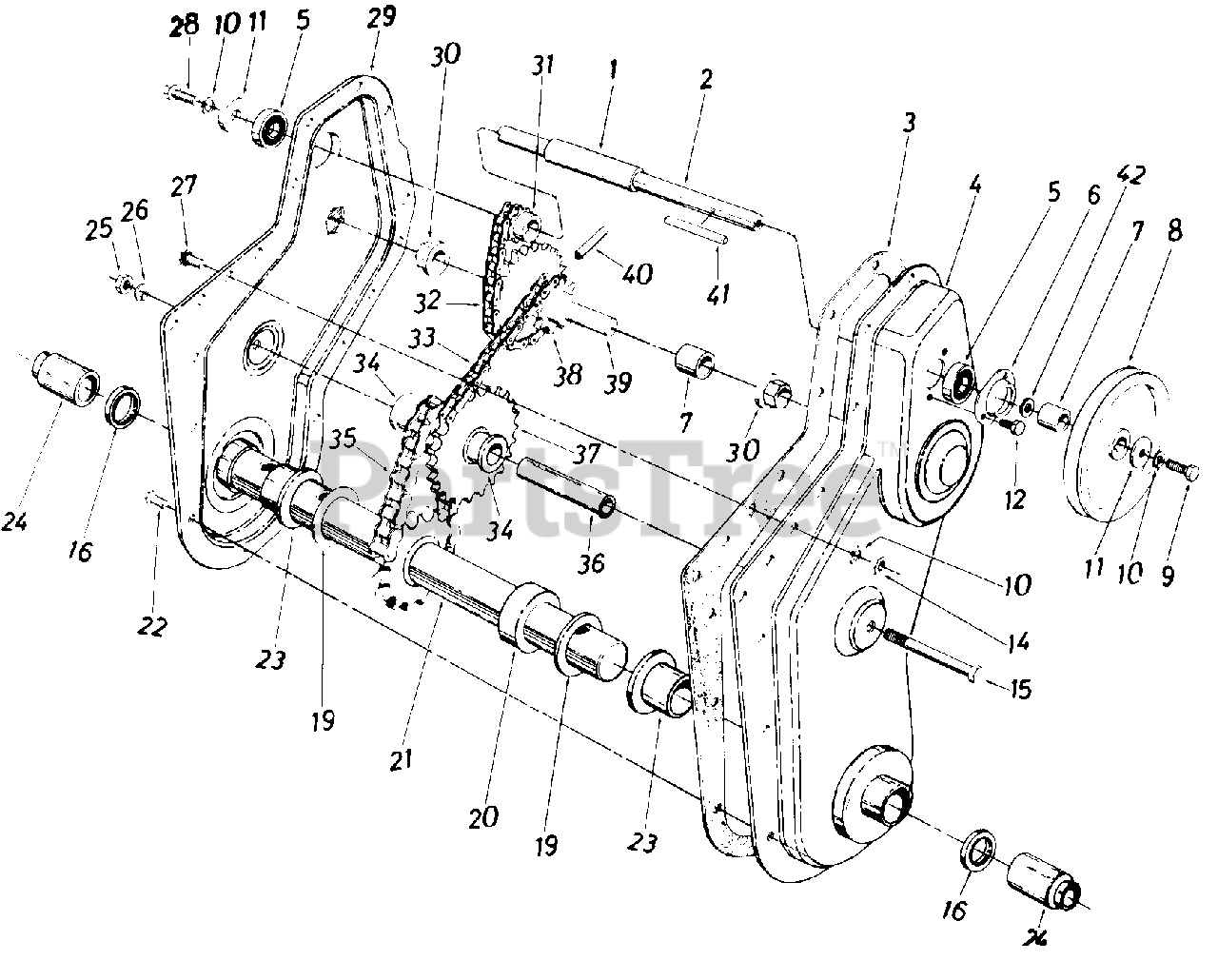

Chain Case Assembly Parts Diagram

  • Title

1

MTD 750-0315

Spacer .657 I.D. x .78 O.D. x 2.19

$

$

Not available

2

MTD 738-0182

Jack Shaft
(Superseded to 938-0182)

$

$

Not available

3

MTD 721-0132

Gasket for Housing
(Superseded to 921-0132)

$35.99

$

Usually ships in 3-6 days

0

4

MTD 784-0097

Housing Half-L.H.

$

$

Not available

5

MTD 741-0155

Ball Bearing .625 I.D. x 1.375 O.D.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 20+

0

6

MTD 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

7

MTD 750-0229

Spacer .625 I.D. x .88 O.D. x 1.035
(Superseded to 950-0229)

$

$

Not available

8

MTD 756-0369

Chain Case Pulley 4.5" Dia.

$

$

Currently unavailable

9

MTD 710-0371

Hex Scr. 5/16-18 x .88" Lg. Special
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

10

MTD 736-0119

L-Wash. 5116" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

MTD 736-0231

Fl-Wash. 5/16 I.D. x 1.125 O.D. x .125

$4.99

$

In Stock, only 4 left!

0

12

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0644

Hex Scr. 3/8-16 x 3.25" Lg.
(Superseded to 710-3130)

$10.99

$

In Stock, only 4 left!

0

16

MTD 721-0175

Oil Seal 1" I.D. x 1.357 O.D.

$9.99

$

In Stock, Qty 16

0

19

MTD 736-0163

Fl-Wash. l.0" I.D. x 1.62 O.D. x .090

$4.49

$

In Stock, Qty 20+

0

20

MTD 750-0314

Spacer 1.0" I.D. x 2.0" O.D. x .68

$

$

Not available

21

MTD 784-0090

Tine Shaft Ass'y.

$

$

Not available

22

MTD 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

23

MTD 731-0374

Flange Bearing (Plastic)
(Superseded to 931-0374)

$7.49

$

In Stock, Qty 20+

0

24

MTD 731-0487

Dust Cap
(Superseded to 931-0487)

$11.99

$

In Stock, Qty 13

0

25

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

26

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

27

MTD 710-0322

Hex Sems Scr. 5/16-18 x 1.00" Lg.

$

$

Not available

28

MTD 710-0538

Hex Scr. 5/16-18 x .62" Lg. Special

$4.49

$

In Stock, Qty 9

0

29

MTD 784-0096

Housing Half-R.H.

$

$

Currently unavailable

30

MTD 748-0229

Hex Flanged Bearing .630 I.D.
(Superseded to 948-0229)

$

$

Not available

31

MTD 713-0206

Sprocket 10 Teeth x .500 Pitch

$

$

Not available

32

MTD 713-0131

#41 Chain 1/2" Pitch x 34 Links-Endless

$

$

Not available

33

MTD 713-0186

#420 Chain 1/2" Pitch x 48 Links-Endless
(Superseded to 913-0186)

$

$

Not available

34

MTD 748-0855

Flange Bearing .628 I.D.

$8.99

$

Usually ships in 3-6 days

0

35

MTD 713-0187

#50 Chain 5/8" Pitch x 28 Links-Endless

$

$

Not available

36

MTD 738-0320

Sprocket Shaft

$

$

Not available

37

MTD 713-0182

Sprocket Bearing Sleeve Ass'y.
(Superseded to 913-0182)

$

$

Not available

38

MTD 713-0181

Sprocket Sleeve Ass'y.

$

$

Not available

39

MTD 738-0308

Sprocket Shaft

$

$

Currently unavailable

40

MTD 715-0114

Spring Pin Spiral 1/4" Dia. x 1.5" Lg.

$9.49

$

In Stock, Qty 7

0

41

MTD 714-0133

Sq. Key 3/16 x 1.50" Lg.

$4.99

$

In Stock, Qty 12

0

42

MTD 736-0162

Fl-Wash.

$4.49

$

In Stock, Qty 20+

0
