215 SST (86268) - Snapper String Trimmer Trimmer Parts Diagram

String Trimmer

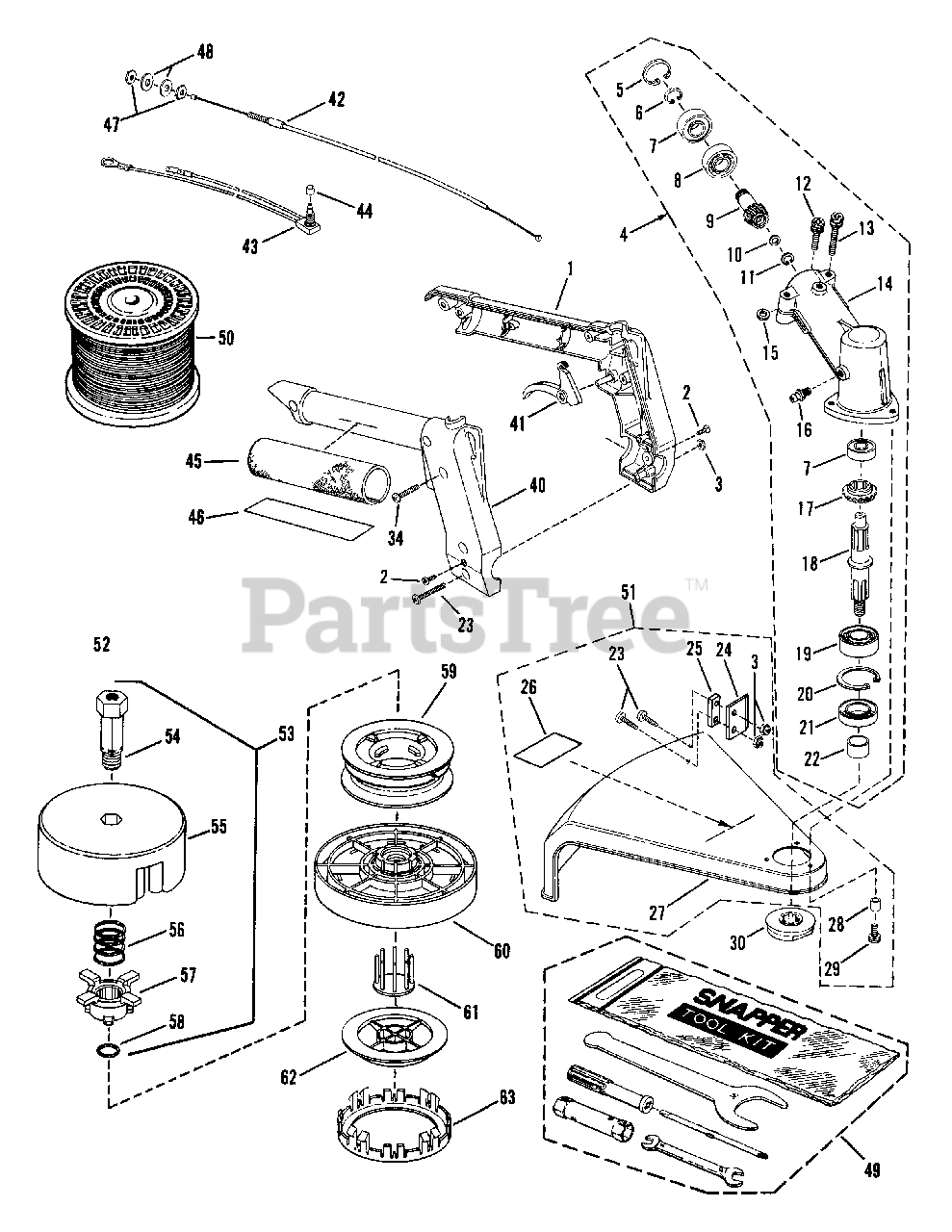

Trimmer Parts Diagram

  • Title

1

Snapper 7019761

HANDLE, Left Half

$

$

Not available

2

Snapper 7090900

SCREW, TORX, #6 X 5/16

$

$

Not available

3

Snapper 7090885

LOCKNUT, #10-32

$

$

Not available

4

Snapper 7043005

GEAR HEAD ASSM'Y

Note: (Includes items 5 thru 22)

$

$

Not available

5

Snapper 7043026

SNAP RING, 26mm

$

$

Currently unavailable

6

Snapper 7043027

SNAP RING, 10mm

$

$

Currently unavailable

7

Snapper 7043914

BEARING

$

$

Not available

8

Snapper 7043025

BEARING

$

$

Currently unavailable

9

Snapper 7043021

BEVEL PINION

$

$

Currently unavailable

10

Snapper 7043031

WASHER, Flat

$

$

Currently unavailable

11

Snapper 7043030

SNAP RING, 10mm

$

$

Currently unavailable

12

Snapper 7043029

BOLT, M5 x 12mm Hex Head

$

$

Currently unavailable

13

Snapper 7043028

BOLT, M5 x 25mm Hex Head

$

$

Currently unavailable

14

Snapper 7043019

GEAR CASE

$

$

Not available

15

Snapper 7043032

SHIM

$

$

Currently unavailable

16

Snapper 7043937

FITTING, Lube

$

$

Not available

17

Snapper 7043022

BEVEL GEAR

$

$

Currently unavailable

18

Snapper 7043020

SPLINE SHAFT

$

$

Currently unavailable

19

Snapper 7043913

BEARING

$

$

Not available

20

Snapper 7043917

SNAP RING, 35mm

$

$

Not available

21

Snapper 7043912

SEAL, Oil

$

$

Not available

22

Snapper 7043023

SPLINE SLEEVE

$

$

Currently unavailable

23

Snapper 7090901

SCREW, #10-32 x 7/8"

$

$

Not available

24

Snapper 7015645

CUTTER ASSM'Y., Line
(Superseded to 7015645YP)

Note: Was 51713

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 7015644

BLOCK, Line Cutter Mounting
(Superseded to 7015644YP)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7015984

LABEL, Replacement Part

$

$

Not available

27

Snapper 7016007

SHIELD ASSM'Y.

Note: Was 51665 (Incl. items 27 & 42)

$14.99

$

In Stock, only 1 left!

0

28

Snapper 7015240

SPACER

$

$

Not available

29

Snapper 7043014

BOLT, M5 x 16mm

$

$

Not available

30

Snapper 7015683

HOLDER

$

$

Currently unavailable

34

Snapper 7090902

Screw, #10-32 x 7/8"

$

$

Not available

40

Snapper 7017003

HANDLE, Right Half

$

$

Not available

41

Snapper 7018854

TRIGGER

Note: Was 18726

$3.49

$

In Stock, only 1 left!

0

42

Snapper 7042302

CABLE, Throttle

$

$

Not available

43

Snapper 7042304

SWITCH

Note: (Includes item 45)

$

$

Currently unavailable

44

Snapper 7015620

CAP, Switch

$

$

Not available

45

Snapper 7015091

GRIP, Handle

$

$

Currently unavailable

46

Snapper 7015134

STRIP, Adhesive

$

$

Not available

47

Snapper 7042504

NUT, M6 Hex

$

$

Currently unavailable

48

Snapper 7042505

WASHER

$

$

Not available

49

Snapper 7043980

TOOL KIT
(Superseded to 7043980YP)

$20.99

$

Usually ships in 2-12 days

0

50

Snapper 68087

SPOOL, 50ft. Mono Line (.080 Dia.)

$

$

Currently unavailable

51

Snapper 7016007

KIT, Plastic Shield

Note: Was 68046 (Includes 3 & 23 thru 29)

$14.99

$

In Stock, only 1 left!

0

52

Snapper 7068101

ASSM'Y.,Tap Head, Left Hand

Note: (Includes items 53 thru 63)

$

$

Currently unavailable

53

Snapper 7015910

ASSM'Y, Housing

Note: (Includes items 54 thru 58)

$

$

Not available

54

Snapper 7015904

ARBOR

$

$

Currently unavailable

55

Snapper 7015906

HOUSING

$

$

Not available

56

Snapper 7015907

SPRING

$

$

Currently unavailable

57

Snapper 7015908

INDEXER

Note: (Includes item 59)

$

$

Not available

58

Snapper 7015909

RETAINER, Wire

$

$

Not available

59

Snapper 7015912

SPOOL

$

$

Not available

60

Snapper 7015913

BASE

$

$

Not available

61

Snapper 7015915

ACTUATOR

$

$

Not available

62

Snapper 7015916

KNOB

$

$

Not available

63

Snapper 7015917

RETAINER, Knob

$6.99

$

In Stock, only 1 left!

0
