21500 - Toro Guardian Walk-Behind Mower (SN: 004000001 - 004999999) (1974) Handle Assembly Parts Diagram

Guardian Walk-Behind Mower

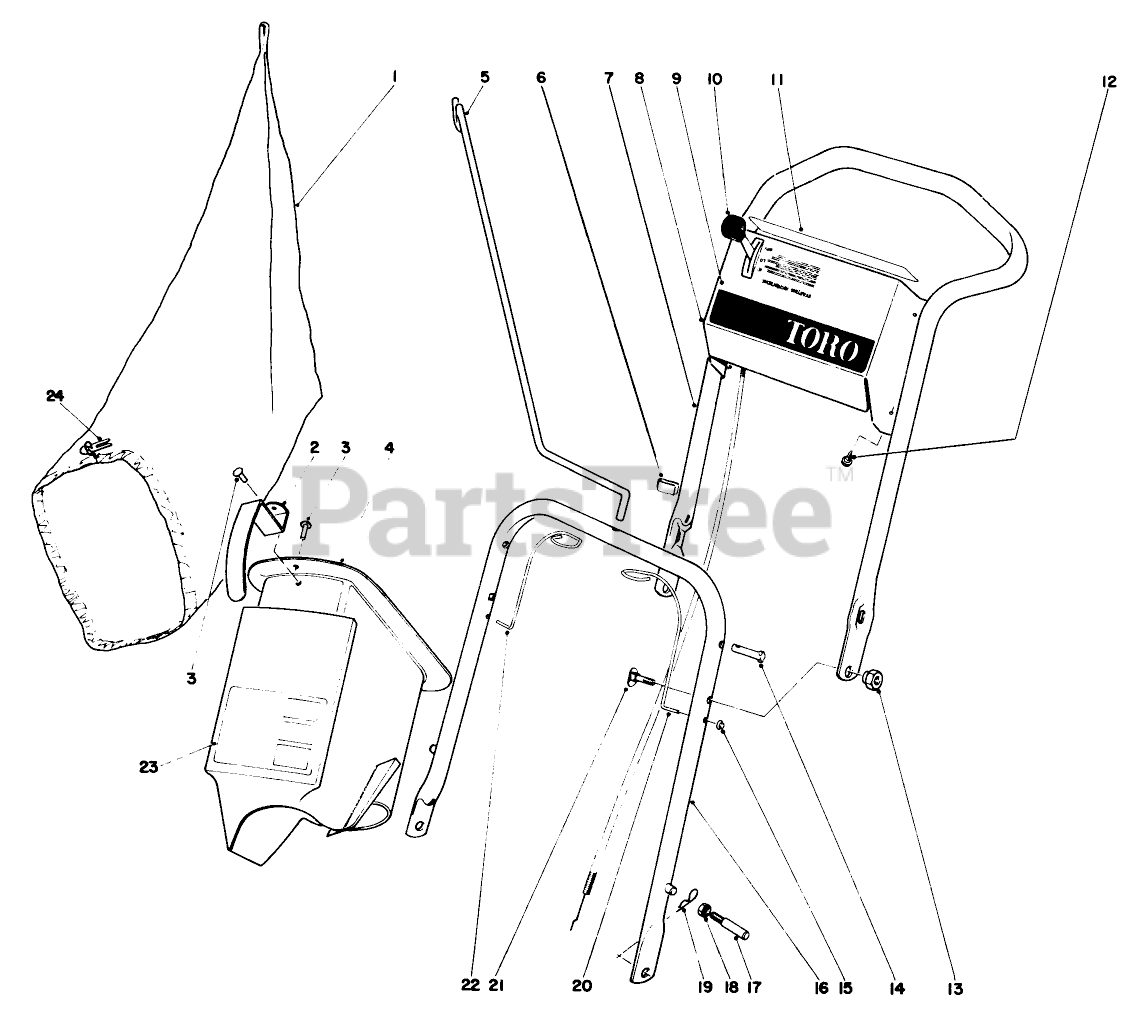

Handle Assembly Parts Diagram

  • Title

1

Toro 5-8679

DISCONTINUED

$

$

Not available

2

Toro 20-4650

DISCONTINUED

$

$

Not available

3

Toro 329-368

Rivet

$

$

Currently unavailable

4

Toro 6-1089

DISCONTINUED

$

$

Not available

5

Toro 22-6110

See Supercession: 19-4210
(Superseded to 19-4210)

$

$

Not available

6

Toro 218-466

DISCONTINUED

$

$

Not available

7

Toro 17-4390

See Supercession: 17-4400
(Superseded to 17-4400)

$262.99

$

Usually ships in 3-6 days

0

8

Toro 17-4510

DISCONTINUED

$

$

Not available

9

Toro 20-2700

Decal Control Plate

$

$

Currently unavailable

10

Toro 20-4600

See Supercession: 46-6010
(Superseded to 46-6010)

$

$

Not available

11

Toro 17-4800

Decal, Safety

$

$

Currently unavailable

12

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

13

Toro 17-7010

DISCONTINUED

$

$

Not available

14

Toro 17-4680

DISCONTINUED PER DAVE

$

$

Not available

15

Toro 3290-299

DISCONTINUED

$

$

Not available

16

Toro 17-7500

Lower Handle

$

$

Currently unavailable

Toro 17-7490

Lower Handle

Note: Not illustrated

$

$

Currently unavailable

17

Toro 17-9380

HANDLE PIN

Note: Replacement Parts Only

$

$

Not available

18

Toro 32146-8

See Supercession: 32153-4
(Superseded to 32153-4)

Note: Replacement Parts Only

$0.99

$

Usually ships in 3-6 days

0

19

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

20

Toro 17-4660

Latch Spring L.H.

$

$

Currently unavailable

21

Toro 6-6330

DISCONTINUED

$

$

Not available

22

Toro 17-4670

DISCONTINUED PER DAVE

$

$

Not available

23

Toro 22-4870

Decal Instructions

$

$

Currently unavailable

24

Toro 3-2781

BAG CORD FASTENER

$

$

Not available
