21500 - Toro Guardian Walk-Behind Mower (SN: 004000001 - 004999999) (1974) MAGNETO NO. 610793 Parts Diagram

Guardian Walk-Behind Mower

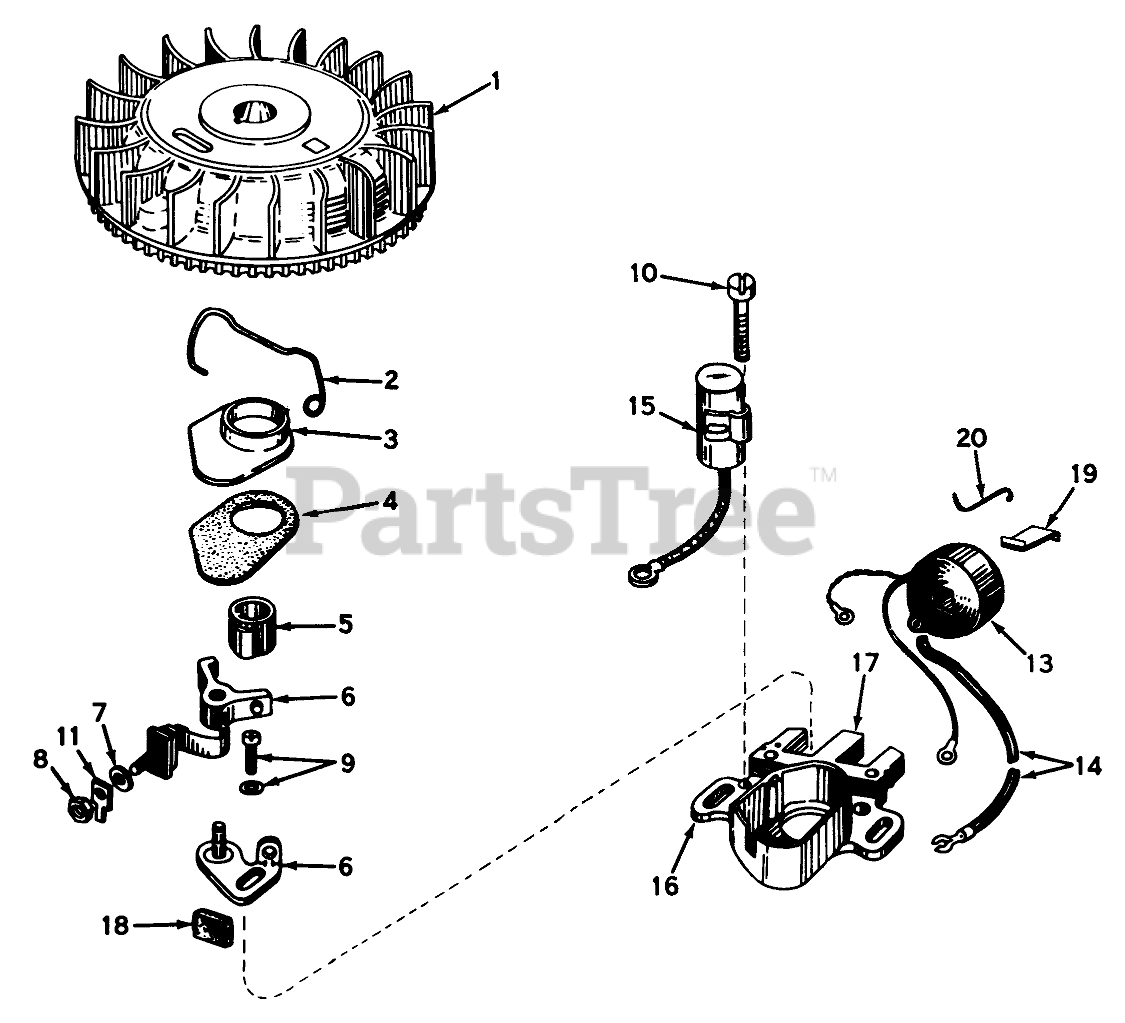

MAGNETO NO. 610793 Parts Diagram

  • Title
1

Tecumseh Part# 610782

FIywheel
(Superseded to 610782B)
Usually ships in 1 day

$

$113.18

0

2

Tecumseh Part# 30551

Spring Breaker Box
Usually ships in 8 to 14 days

$

$1.52

0

3

Tecumseh Part# 30550

Cover, Dust
(Superseded to 610947)
Usually ships in 1 day

$

$3.64

0

4

Tecumseh Part# 32052

Gasket Dust Cover
Usually ships same day

Currently unavailable

$

$

5

Tecumseh Part# 30552

Cam, Breaker
Usually ships same day

Currently unavailable

$

$

6

Tecumseh Part# 30547A

Breaker Assy.
Usually ships in 1 day

$

$15.69

0

Usually ships in 8 to 14 days

$

$1.52

0

Usually ships same day

Currently unavailable

$

$

9

Tecumseh Part# 29181

Breaker Screw
Usually ships in 1 day

$

$1.66

0

10

Tecumseh Part# 610593

Condenser Screw
Usually ships in 1 day

$

$1.68

0

11

Tecumseh Part# 30843

Terminal
(Superseded to 33356)
Usually ships in 1 day

$

$1.76

0

13

Tecumseh Part# 30560A

Coil Assembly (Incl. No. 14)
Usually ships in 1 day

$

$51.52

0

14
Usually ships same day

Currently unavailable

$

$

15

Tecumseh Part# 30548A

Condenser
(Superseded to 30548B)
Usually ships in 1 day

$

$11.76

0

16

Tecumseh Part# 30545

Core & Plate
Usually ships in 8 to 14 days

$

$17.64

0

17

Tecumseh Part# 30561A

Stator Assembly (Incl. Nos. 2, 3, 5 thru 14 & 16 thru 19)
(Superseded to 30561B)
Usually ships same day

Currently unavailable

$

$

18

Tecumseh Part# 30549

Felt,Cam Wiper
Usually ships in 1 day

$

$1.70

0

19

Tecumseh Part# 29629

Spring Coil Wedge
Usually ships same day

Currently unavailable

$

$

20
Usually ships in 1 day

$

$1.66

0
