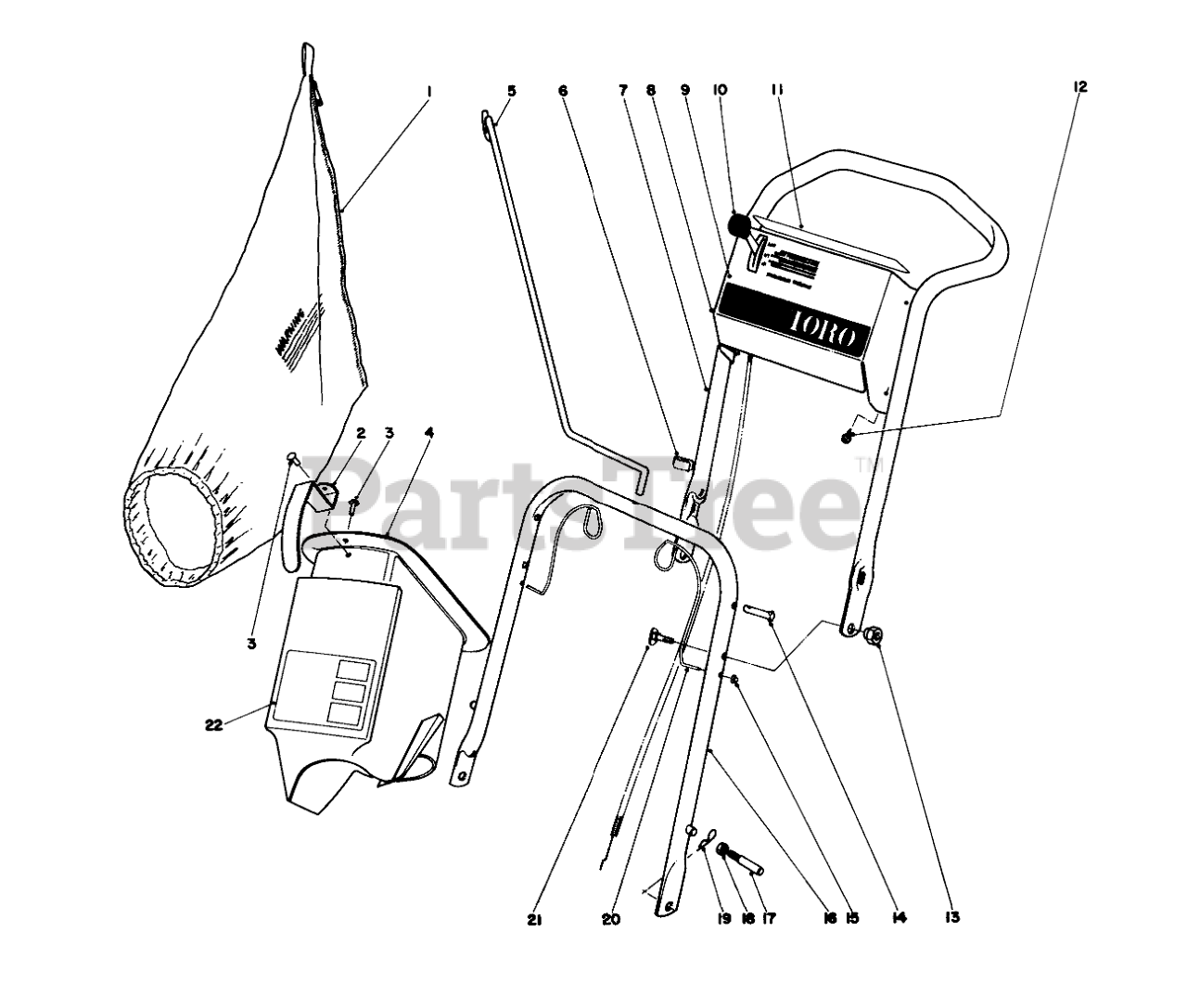

21500 - Toro Guardian Walk-Behind Mower (SN: 005000001 - 005999999) (1975) HANDLE ASSEMBLY Parts Diagram

Guardian Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 6-0929

BAG REPLACMNT44-0540
(Superseded to 44-0540)

$85.99

$

In Stock, only 2 left!

0

2

Toro 20-4650

HANDLE-GRASS CHUTE

$

$

Not available

3

Toro 3295-26

RIVET 3/16 X 7/16

$6.99

$

Usually ships in 3-6 days

0

4

Toro 6-1089

Grass Chute (Incl. Ref. #2, 3 & 22)

$

$

Not available

5

Toro 204590

Bag Rod

$

$

Currently unavailable

6

Toro 218466

Clip

$

$

Currently unavailable

7

Toro 174400

Upper Handle

$

$

Currently unavailable

8

Toro 174510

Control Plate

$

$

Currently unavailable

9

Toro 20-2700

Decal Control Plate

$

$

Currently unavailable

10

Toro 20-4600

Control Throttle
(Superseded to 46-6010)

$60.99

$

Usually ships in 3-6 days

0

11

Toro 22-8140

Decal Safety Instructions

$

$

Currently unavailable

12

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 17-7010

Pivot Nut

$

$

Not available

14

Toro 17-4680

Latch Pin

$

$

Not available

15

Toro 3290-299

CLIP

$

$

Not available

16

Toro 17-7500

Lower Handle

$

$

Currently unavailable

Toro 17-7490

Lower Handle

Note: Not illustrated

$

$

Currently unavailable

17

Toro 17-9380

HANDLE PIN

Note: Replacement Parts Only

$

$

Not available

18

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Replacement Parts Only

$0.99

$

Usually ships in 3-6 days

0

19

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

20

Toro 23-9110

Spring Latch

$

$

Currently unavailable

21

Toro 6-6330

HANDLE SCREW

$

$

Not available

22

Toro 224870

Decal Instructions

$

$

Currently unavailable
