21500 - Toro Guardian Walk-Behind Mower (SN: 006000001 - 006999999) (1976) HOUSING ASSEMBLY Parts Diagram

Guardian Walk-Behind Mower

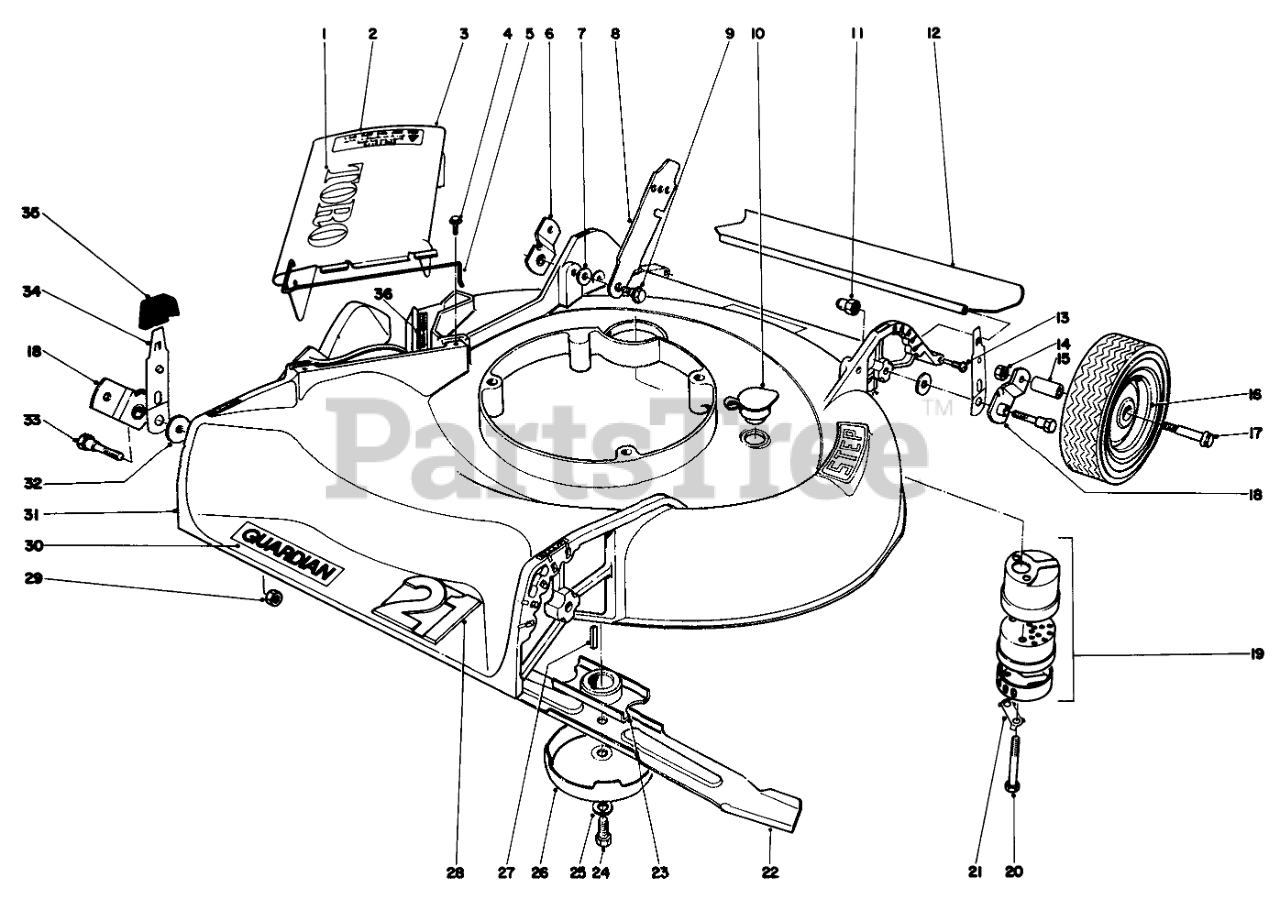

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 20-4690

TORO LOGO DECAL

$7.99

$

Usually ships in 3-6 days

0

2

Toro 20-4330

Caution Decal

$

$

Not available

3

Toro 20-2800

Deflector Cover Assembly (Incl. Ref. No.1, 2 and 5)
(Superseded to 13-4049)

$

$

Not available

4

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

5

Toro 20-2640

SPRING HINGE

$

$

Not available

6

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

7

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

8

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

9

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

10

Toro 6-4500

WASHOUT PLUG

$

$

Not available

11

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

12

Toro 22-4950

REAR SAFETY SHIELD 21

$

$

Not available

13

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

14

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 3-2664

Bushing

$

$

Not available

16

Toro 17-4120

Wheel and Tire Assembly (Incl Ref. No. 15)
(Superseded to 99-5256)

$

$

Not available

17

Toro 3-2652

Bolt

$

$

Not available

18

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$34.99

$

Usually ships in 3-6 days

0

19

Toro 5-4769

Muffler Ass. (Incl. Ref. #20 & 21)

$54.99

$

Usually ships in 3-6 days

0

20

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

21

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

22

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$36.99

$

In Stock, only 4 left!

0

23

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0

24

Toro 3-5246

SPECIAL SCREW

$

$

Not available

25

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

26

Toro 84240

Anti Scalp Cup

$

$

Currently unavailable

27

Toro 21-5070

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

28

Toro 20-2670

Emblem Deck

$

$

Currently unavailable

29

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

30

Toro 22-4770

Decal

$

$

Currently unavailable

31

Toro 6-0669

Housing

$

$

Currently unavailable

32

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

33

Toro 34655

Pivot Screw

$

$

Currently unavailable

34

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

35

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 12

0

36

Toro 22-7350

Decal

$

$

Not available

Toro 6-5929

Loose Parts Bag

Note: Optional equipment

$

$

Currently unavailable
