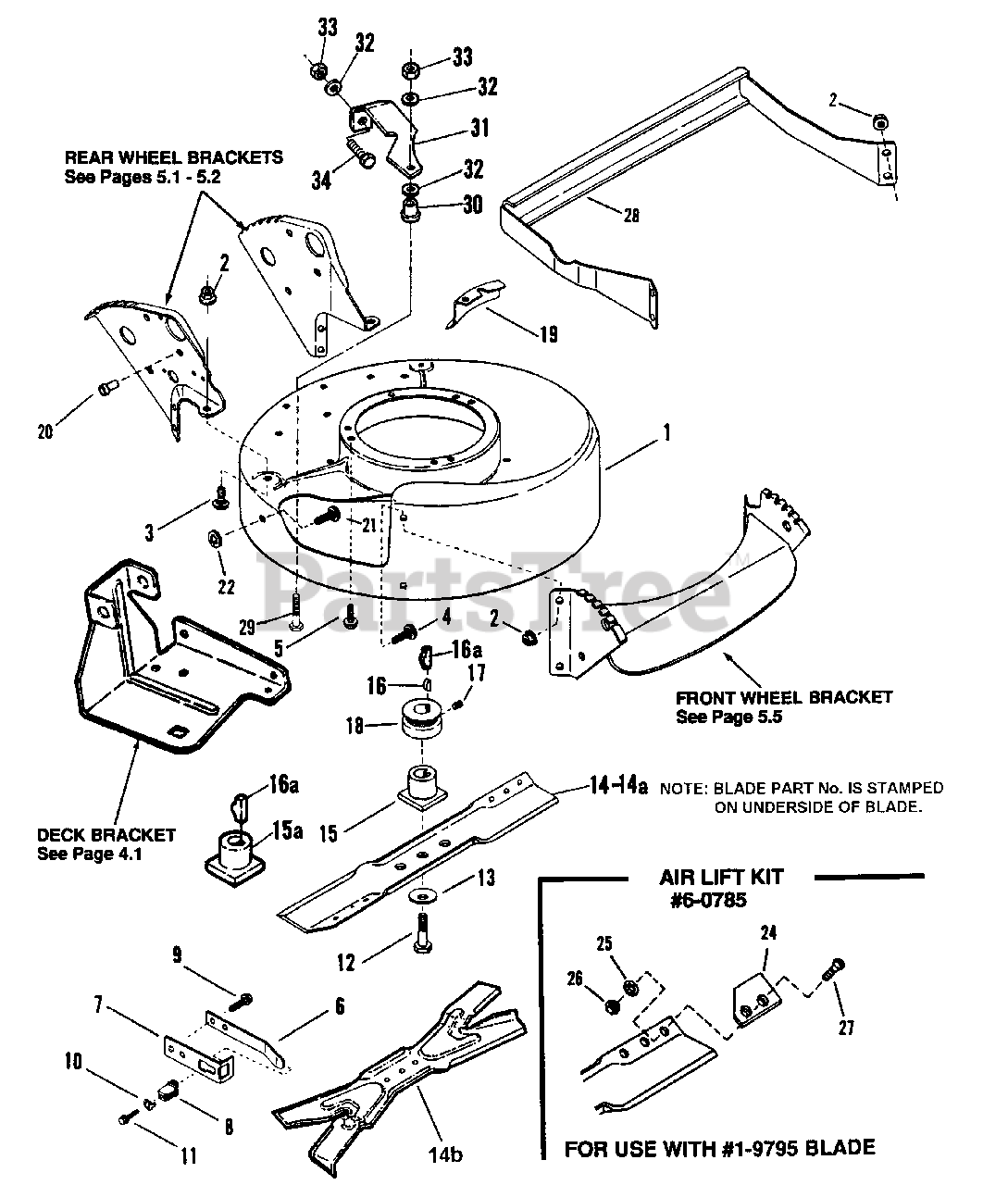

21509B (80276) - Snapper 21" Walk-Behind Mower, 5hp Cutting Deck, Blade, Interlock Parts Diagram

21" Walk-Behind Mower, 5hp

Cutting Deck, Blade, Interlock Parts Diagram

  • Title

1

Snapper 7057663

DECK, Mower
(Superseded to 7500549DYP)

Note: (Includes Painted Deck with Decals)

$

$

Not available

DECK, Mower

Note: (Includes Painted Deck with Decals; "O" Models)

$

$

Not available

2

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

3

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703798)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7091169

BOLT, 5/16-18 x 1-1/8" Short Neck Carriage, Grade 5
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

Note: (Briggs Engine Mount)

$4.99

$

In Stock, only 4 left!

0

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock, Grade 5
(Superseded to 703354)

Note: (Tec. Engine Mount)

$5.49

$

In Stock, Qty 12

0

6

Snapper 7032417

SPRING, Wheel Bracket Type Interlock
(Superseded to 7032417YP)

$15.99

$

Usually ships in 2-12 days

0

7

Snapper 7032416

BRACKET, Wheel Bracket Type Interlock
(Superseded to 7032416YP)

$21.99

$

Usually ships in 2-12 days

0

8

Snapper 7012048

INSULATOR, Interlock
(Superseded to 7012048YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7090385

WASHER, #8 Tab Internal Tooth Lock

$

$

Not available

11

Snapper 7090379

SCREW, #8-18 x 3/4" Hex Head Machine
(Superseded to 7090379YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, Grade 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, Qty 20+

0

14

Snapper 7019795

BLADE, Cutter, 20.75"
(Superseded to 7019795BZYP)

$28.99

$

In Stock, only 4 left!

0

14A

Snapper 7026691

BLADE, Cutter, 20.73"
(Superseded to 7026691BZYP)

Note: Was 17002

$23.99

$

In Stock, Qty 20+

0

14B

Snapper 7026407

BLADE, Cutter, 20.73" Quad Edge
(Superseded to 7026407AYP)

$54.99

$

In Stock, Qty 10

0

15

Snapper 7015626

HUB, Blade Drive 25mm
(Superseded to 7015626YP)

$15.99

$

In Stock, only 1 left!

0

15A

Snapper 7012927

HUB, Blade Drive 7/8"
(Superseded to 7012927YP)

$13.99

$

In Stock, only 1 left!

0

16

Snapper 7015894

KEY, Woodruff #605 (Briggs)
(Superseded to 7015894SM)

Note: ('91 Models & Later)

$3.49

$

In Stock, Qty 9

0

16A

Snapper 7010783

KEY, Woodruff Hi-Pro
(Superseded to 7010783YP)

$3.99

$

In Stock, only 2 left!

0

17

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Set
(Superseded to 7090201SM)

$

$

Not available

18

Snapper 7015780

PULLEY, Engine- 25mm x 2-1/8" Outside Diameter
(Superseded to 7015780YP)

$30.99

$

Usually ships in 2-12 days

0

18

Snapper 7024596

PULLEY, Engine- .875 x 2-1/4" Outside Diameter
(Superseded to 7024596YP)

$70.99

$

Usually ships in 2-12 days

0

19

Snapper 7031968

SHIELD, Belt Opening Cover

Note: (Push Models Only)

$

$

Not available

20

Snapper 7012135

BUSHING, Interlock Wire

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7011762

COVER, Spark Plug
(Superseded to 7011762YP)

Note: (Not shown)

$3.99

$

Usually ships in 2-12 days

0

Snapper 7060785

KIT, Air Lift
(Superseded to 7060785YP)

Note: (Includes Items 24-27)

$

$

Not available

24

Snapper 7032558

LIFT, Air
(Superseded to 7032558YP)

$9.99

$

Usually ships in 2-12 days

0

25

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7090228

SCREW, 5/16-24 x 21/32" Oval Head Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, only 4 left!

0

28

Snapper 7049755

STRUCTURE, Fender

Note: (European Only)

$

$

Currently unavailable

29

Snapper 7090702

BOLT, 5/16-18 x 2-1/4" Hex Flange Lock
(Superseded to 7090702YP)

$3.99

$

Usually ships in 2-12 days

0

30

Snapper 7013320

BUSHING
(Superseded to 7013320YP)

$13.99

$

Usually ships in 2-12 days

0

31

Snapper 7036240

COVER, Belt

Note: (European Only)

$

$

Not available

32

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

34

Snapper 7090534

SCREW, 5/16-18 x 1/2" Hex Head Cap, Grade 5
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0
