21545x6A - Murray Ultra 21" Walk-Behind Mower (1996) Mower Housing Assembly Parts Diagram

Ultra 21" Walk-Behind Mower

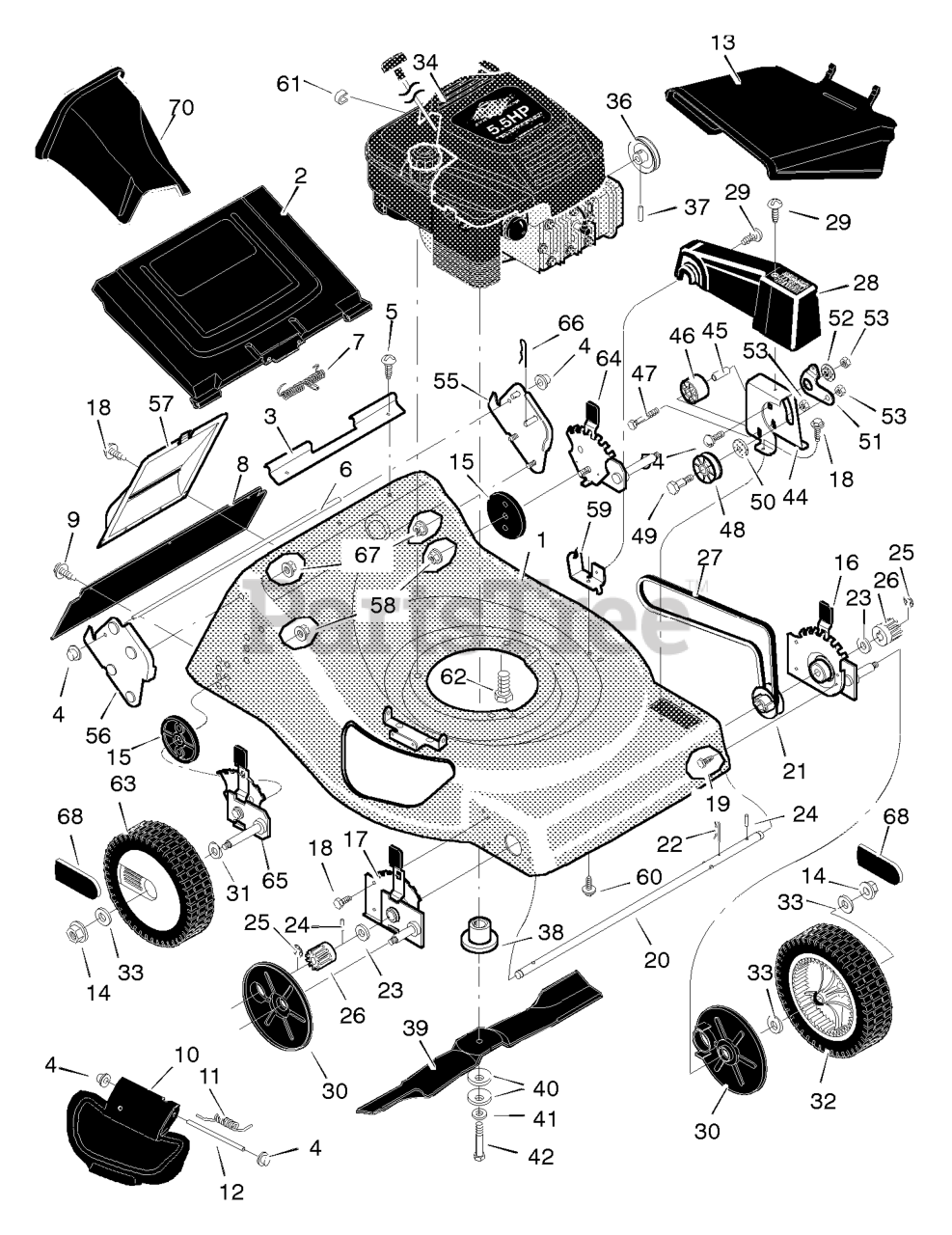

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 070150

Housing

$

$

Currently unavailable

2

Murray 071409

Door, Rear

$66.99

$

Usually ships in 2-12 days

0

3

Murray 071410MA

Spacer, Door

$7.99

$

Usually ships in 2-12 days

0

4

Murray 028X42MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

5

Murray 26X259MA

Screw

$4.49

$

Usually ships in 2-12 days

0

6

Murray 215X14 Z

Rod, Door Pivot

$

$

Currently unavailable

7

Murray 166X33MA

Spring, Torsion

$6.99

$

In Stock, only 1 left!

0

8

Murray 043640

Guard, Rear

$

$

Not available

9

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

10

Murray 071769

Cover, Mulcher

$

$

Currently unavailable

11

Murray 166X38MA

Spring, Torsion

$4.99

$

In Stock, only 2 left!

0

12

Murray 215X16 Z

Rod

$

$

Currently unavailable

13

Murray 071770MA

Deflector, Chute

$21.99

$

In Stock, only 1 left!

0

14

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Murray 043784MA

Spacer

$1.99

$

Usually ships in 2-12 days

0

16

Murray 401031

Height Adjuster, Left Front

$17.99

$

Usually ships in 2-12 days

0

17

Murray 401030MA

Height Adjuster, Right Front

$23.99

$

Usually ships in 2-12 days

0

18

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

19

Murray 26X185

Screw

$

$

Not available

20

Murray 071790

Axle

$43.99

$

Usually ships in 2-12 days

0

21

Murray 071791MA

Pulley

$16.99

$

Usually ships in 2-12 days

0

22

Murray 0031X9MA

Hair Pin

$3.49

$

Usually ships in 2-12 days

0

23

Murray 17X186MA

Washer

$5.49

$

Usually ships in 2-12 days

0

24

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, Qty 6

0

25

Murray 011X16MA

Ring, Retainer

$3.99

$

Usually ships in 2-12 days

0

26

Murray 071792MA

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

27

Murray 037X84MA

Belt, Briggs Engine

$19.99

$

In Stock, only 2 left!

0

--

Murray 037X85MA

Belt, Tecumseh Engine

$17.99

$

Usually ships in 2-12 days

0

28

Murray 071768MA

Cover, Belt

$

$

Not available

29

Murray 26X279MA

Screw

$3.49

$

Usually ships in 2-12 days

0

30

Murray 071780MA

Cover, Dust

$5.99

$

In Stock, only 2 left!

0

31

Murray 17X1202

Washer

$

$

Currently unavailable

32

Murray 043617

Wheel, Drive

$

$

Currently unavailable

33

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

34

Engine *

$

$

Not available

36

Murray 071434MA

Pulley, Engine

$16.99

$

Usually ships in 2-12 days

0

37

Murray 032X64MA

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

38

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

39

Murray 071584E701MA

Blade

$13.99

$

Usually ships in 2-12 days

0

40

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

41

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

42

Murray 01X142MA

Bolt

$8.49

$

In Stock, Qty 7

0

44

Murray 071745 Z

Bracket, Idler

$

$

Currently unavailable

45

Murray 071793MA

Bearing

$4.99

$

In Stock, Qty 6

0

46

Murray 071778MA

Pulley, Idler

$6.49

$

Usually ships in 2-12 days

0

47

Murray 001X81MA

Bolt

$3.49

$

In Stock, only 2 left!

0

48

Murray 071779MA

Pulley, Idler

$

$

Not available

49

Murray 009X50MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

50

Murray 071788MA

Spacer

$3.99

$

Usually ships in 2-12 days

0

51

Murray 71742 Z

Arm, Idler

$

$

Currently unavailable

52

Murray 071789MA

Spacer

$3.99

$

Usually ships in 2-12 days

0

53

Murray 015X43MA

Locknut
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

54

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

55

Murray 71097E701

Handle Bracket, Left

$

$

Currently unavailable

56

Murray 71096E701

Handle Bracket, Right

$

$

Currently unavailable

57

Murray 71246E701

Cover, Transmission

$9.49

$

Usually ships in 2-12 days

0

58

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

59

Murray 717442

Cable Bracket

$

$

Currently unavailable

60

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

61

Murray 042189MA

Stop, Rope

$3.99

$

Usually ships in 2-12 days

0

62

Murray 0025X6MA

Bolt, Engine Mount

$5.49

$

Usually ships in 2-12 days

0

63

Murray 043618MA

WHEEL & TIRE ASSEMBLY, White, 8"
(Superseded to 071132MA)

$36.99

$

In Stock, only 2 left!

0

--

Murray 071132MA

Wheel, Rear- Gray

$36.99

$

In Stock, only 2 left!

0

64

Murray 401025MA

Height Adjuster, Rear

$72.99

$

Usually ships in 2-12 days

0

65

UNKNOWN

$

$

Not available

66

Murray 031X10MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

67

Murray 015X79MA

Nut, Hex
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

68

Murray 043615MA

Hub Cap

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

--

Murray F-96430

Instruction Book

$

$

Currently unavailable

70

Murray 071250MA

Plug, Mulcher

$97.99

$

In Stock, only 1 left!

0
