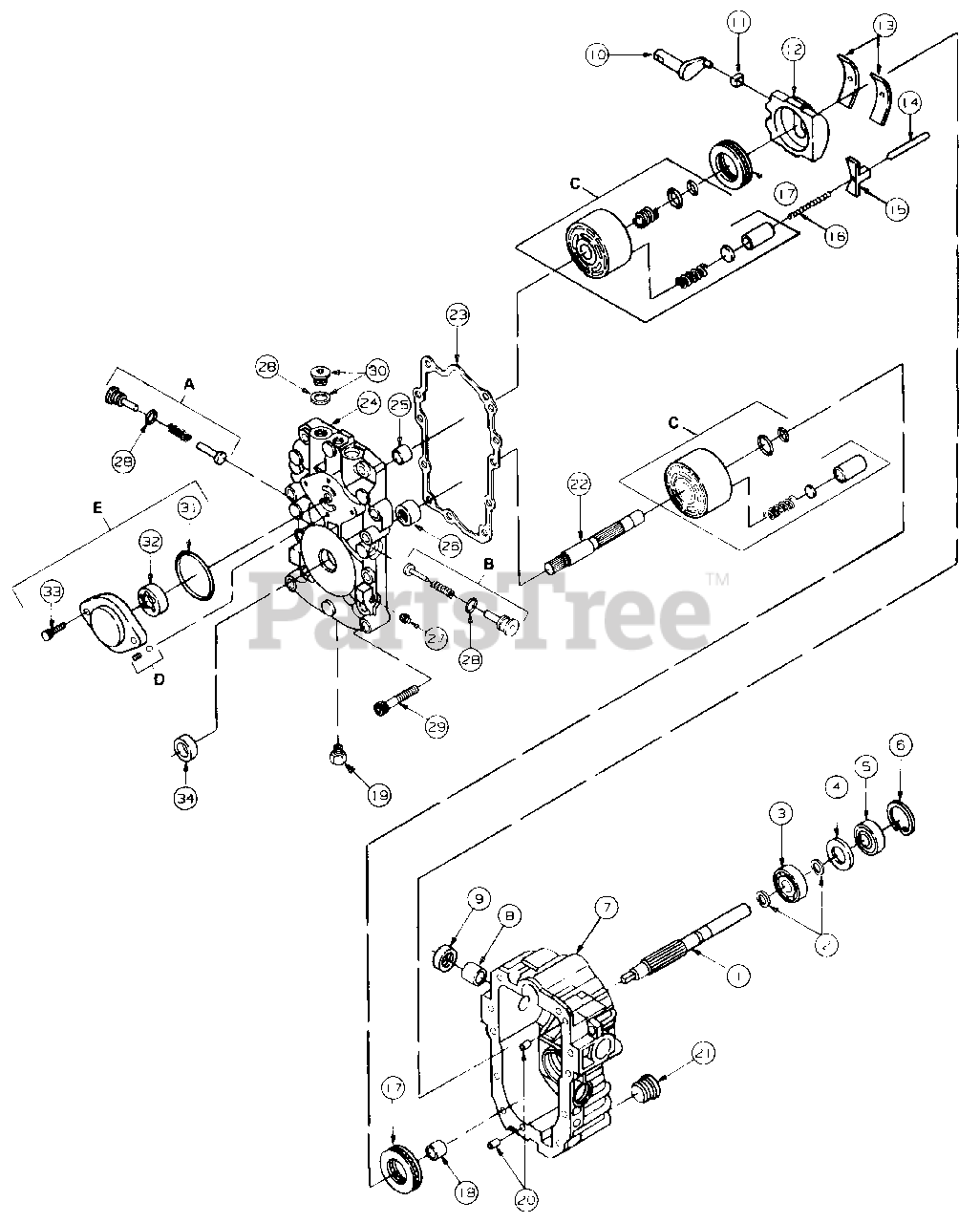

2155 (13A-244G100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Hydrostatic Pump Parts Diagram

Garden Tractor

Hydrostatic Pump Parts Diagram

  • Title

A

Cub Cadet HG-2510050

Kit, Check Valve

$

$

Not available

B

Cub Cadet HG-2510034

Kit, Orificed Check Valve

$52.99

$

Usually ships in 3-6 days

0

C

Cub Cadet HG-2513009

Kit, Cylinder Block
(Superseded to HG-70331)

$199.99

$

Usually ships in 3-6 days

0

D

Cub Cadet HG-2510011

Kit, Charge Relief Valve

$12.99

$

Usually ships in 3-6 days

0

E

Cub Cadet HG-2513027

Kit, Charge Pump

$200.99

$

Usually ships in 3-6 days

0

1

Cub Cadet HG-50185

Shaft, Pump

$

$

Not available

2

Cub Cadet HG-2003016

Ring, Retaining

Note: (Incl. in seal kit)

$8.49

$

Usually ships in 3-6 days

0

3

Cub Cadet HG-2003043

Bearing, Ball
(Superseded to HG-2003043P)

$78.99

$

Usually ships in 3-6 days

0

4

Cub Cadet HG-2003018

Spacer

Note: (Incl. in seal kit)

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-9008000-0128

Seal, Lip

Note: (Incl. in seal kit)

$20.99

$

In Stock, only 2 left!

0

6

Cub Cadet HG-2003052

Ring, Retaining

Note: (Incl. in seal kit)

$8.49

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-2513036

Housing Assy

Note: (Includes Ref No. 8, 14, & 18)

$293.99

$

Usually ships in 3-6 days

0

8

Cub Cadet HG-2003009

Bearing, Journal

$

$

Currently unavailable

9

Cub Cadet HG-9008000-0126

Seal, Lip

Note: (Incl. in seal kit)

$16.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-2003005

Arm, Trunnion

$228.99

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-2000015

Guide, Slot

$22.99

$

Usually ships in 3-6 days

0

12

Cub Cadet HG-2003087

Swashplate

$233.99

$

Usually ships in 3-6 days

0

13

Cub Cadet HG-2003023

Bearing, Cradle
(Superseded to HG-52619)

$13.99

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-9004820-2536

Pin, Leveler

$

$

Currently unavailable

15

Cub Cadet HG-2003091

Leveler, Swashplate

$

$

Not available

16

Cub Cadet HG-2003092

Spring, Leveler

$

$

Not available

17

Cub Cadet HG-2003044

Bearing, Thrust
(Superseded to HG-50551P)

$31.99

$

Usually ships in 3-6 days

0

18

Cub Cadet HG-2003071

Bearing, Journal

$

$

Currently unavailable

19

Cub Cadet HG-9005110-4400

Plug

$

$

Not available

20

Cub Cadet HG-9004800-2506

Pin

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet HG-9005110-8700

Plug

$41.99

$

Usually ships in 3-6 days

0

22

Cub Cadet HG-2003034

Shaft, Motor

$358.99

$

Usually ships in 3-6 days

0

23

Cub Cadet HG-2003060

Gasket, Center Section

Note: (Incl. in seal kit)

$11.99

$

In Stock, only 1 left!

0

24

Cub Cadet HG-2513037

Center Section Assy

Note: (Incl. Ref No. 25 & 26)

$

$

Not available

25

Cub Cadet HG-2003071

Bearing, Journal

$

$

Currently unavailable

26

Cub Cadet HG-2003045

Bearing, Needle

$

$

Currently unavailable

27

Cub Cadet HG-9005001-0600

Plug, Pipe

$

$

Not available

28

Cub Cadet HG-9004201-3700

O-Ring

Note: (Incl. in seal kit)

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet HG-9007314-0808

Screw, Socket Hd

$5.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-9005110-5600

Plug w/Ring

$21.99

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-9004101-1340

O-Ring

Note: (Incl. in seal kit)

$4.99

$

Usually ships in 3-6 days

0

32

Cub Cadet HG-J1041008

Gerotor Assy
(Superseded to HG-50273)

$38.99

$

Usually ships in 3-6 days

0

33

Cub Cadet HG-9007375-0038

Screw, Socket Hd

$

$

Not available

34

Note: Not used in this application

$

$

Not available

Cub Cadet HG-2513013

Kit, Overhaul Seal

Note: (Incl. Ref No. 2, 4-6, 9, 23, 28, 31, & 34)

$67.99

$

Usually ships in 3-6 days

0
