2155 (13C-244G100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Fuel System Spec. 44508 Parts Diagram

Garden Tractor

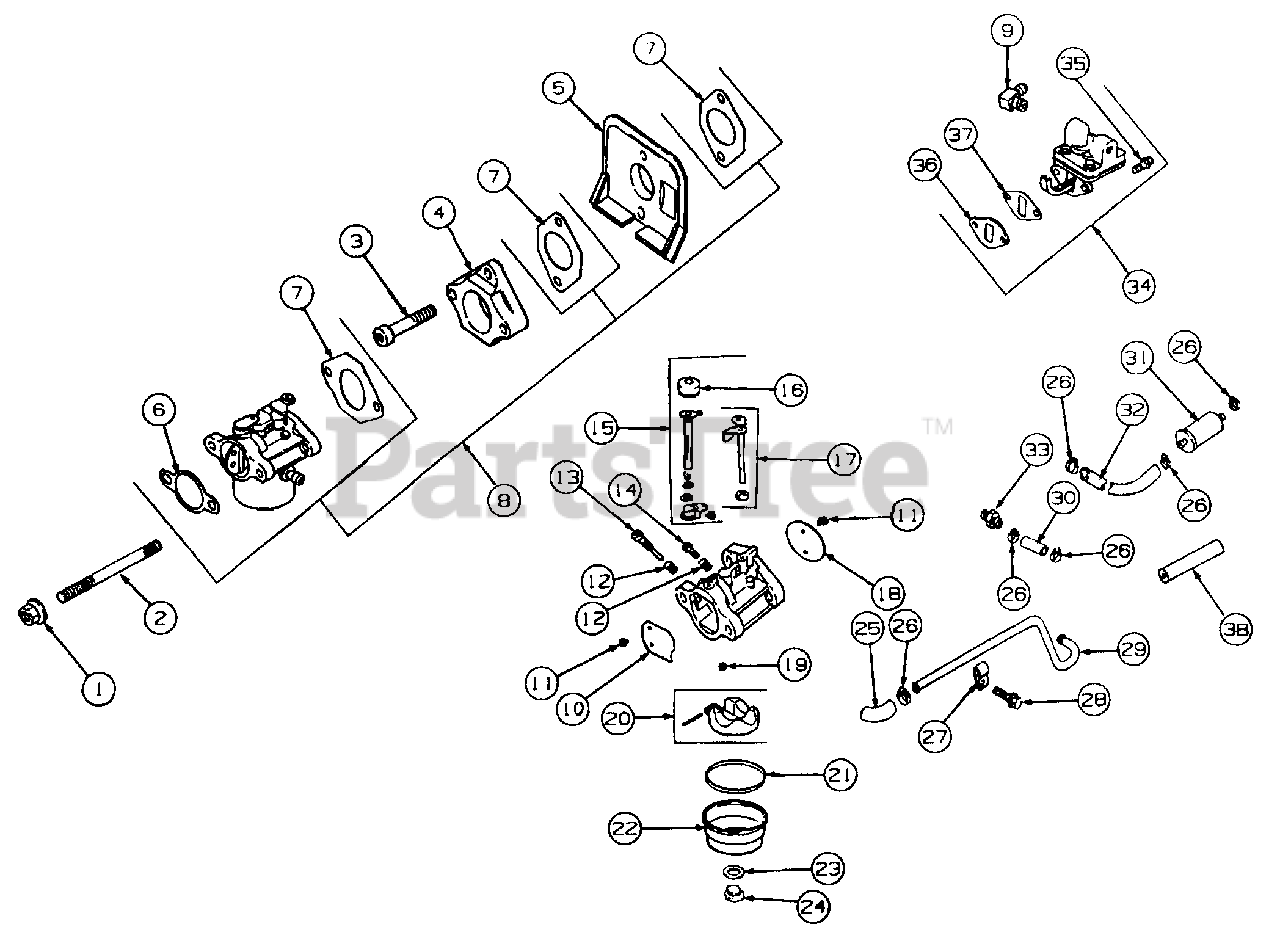

Fuel System Spec. 44508 Parts Diagram

  • Title

1

Cub Cadet KH-M-0641060

Nut, Hex Flange, M6 x 1.0
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 15

0

2

Cub Cadet KH-M-0629085

Stud, Carburetor, M6 x 1.0 x 116

$1.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-M-0644035

Screw, Socket Cap, M6 x 1.0 x 35
(Superseded to KH-M-644035-S)

$2.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-12-029-04

Adapter, Carburetor

$

$

Not available

5

Cub Cadet KH-12-265-04

Deflector, Heat
(Superseded to KH-12-265-08-S)

$9.49

$

In Stock, only 1 left!

0

6

Cub Cadet KH-12-041-02

Gasket, Air Filter

$2.49

$

In Stock, Qty 19

0

7

Cub Cadet KH-12-041-01

Gasket, Carburetor

$2.49

$

In Stock, Qty 9

0

8

Cub Cadet KH-12-853-80

Kit, Carburetor w/Gskts
(Superseded to KH-12-853-139-S)

Note: (Includes Ref No. 6, 7(1), KH-12-454-01 (Wire Tie) and KH-25-452-20 (Terminal)] (Walbro)

$263.99

$

In Stock, only 1 left!

0

Cub Cadet KH-12-853-75

Kit, Carb w/Gskts (NIKI)

$

$

Not available

9

Cub Cadet KH-25-155-02

Connector, Hose, 90°.

$

$

Not available

10

Cub Cadet KH-12-146-12

Plate, Choke

$

$

Not available

11

Cub Cadet KH-25-086-27

Screw, Choke & Throttle Plate

$

$

Not available

12

Cub Cadet KH-12-089-09

Spring, Idle Fuel & Speed Adj

$

$

Not available

13

Cub Cadet KH-12-368-05

Needle, Idle Fuel Adj

$

$

Not available

14

Cub Cadet KH-12-086-04

Screw, Idle Speed Adj

$

$

Not available

15

Cub Cadet KH-12-757-08

Kit, Choke Shaft Repair

Note: (Incl Ref 16)

$

$

Not available

16

Cub Cadet KH-12-173-06

Cap, Choke Lever

$

$

Not available

17

Cub Cadet KH-12-144-09

Shaft, Throttle w/Seal

$

$

Not available

18

Cub Cadet KH-12-146-03

Plate, Throttle

$

$

Not available

19

Cub Cadet KH-12-337-03

Jet, Main

$

$

Not available

20

Cub Cadet KH-12-757-02

Kit, Float

$

$

Not available

21

Cub Cadet KH-12-041-05

Gasket, Bowl

$

$

Not available

22

Cub Cadet KH-12-104-01

Bowl, Fuel

$

$

Not available

23

Cub Cadet KH-12-041-06

Gasket, Bowl Retaining Screw
(Superseded to KH-25-041-03)

$

$

Not available

24

Cub Cadet KH-12-086-05

Screw, Bowl Retainer

$

$

Not available

25

Cub Cadet KH-12-353-07

Line, 90° Fuel
(Superseded to KH-25-111-36-S)

$7.49

$

In Stock, only 2 left!

0

26

Cub Cadet KH-X-426-9

Clamp, Fuel Line
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 6

0

27

Cub Cadet KH-X-728-1

Clip, Tube

$

$

Not available

28

Cub Cadet KH-M-0545010

Screw, Hex Flange, M5 x .8 x 10

$

$

Not available

29

Cub Cadet KH-12-353-11

Line, Metal Fuel

$

$

Not available

30

Cub Cadet KH-12-353-01

Line, Fuel, 1-1/4
(Superseded to 751-10349-13)

$16.99

$

In Stock, Qty 7

0

31

Cub Cadet KH-24-050-02

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

32

Cub Cadet KH-25-353-08

Line, Fuel, 5"
(Superseded to 751-10349-13)

$16.99

$

In Stock, Qty 7

0

33

Cub Cadet KH-X-380-1

Connector, Straight Hose
(Superseded to KH-25-326-03-S)

$3.99

$

In Stock, only 1 left!

0

34

Cub Cadet KH-12-559-01

Kit, Fuel Pump
(Superseded to KH-12-559-02-S)

Note: (Incl. 35-37)

$48.99

$

In Stock, Qty 16

0

35

Cub Cadet KH-M-0645020

Screw, Hex Flange, M6 x 1 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, Qty 20+

0

36

Cub Cadet KH-12-112-05

Spacer, Fuel Pump

$

$

Not available

37

Cub Cadet KH-25-041-09

Gasket, Fuel Pump
(Superseded to KH-25-041-10-S)

$3.49

$

In Stock, Qty 12

0

38

Cub Cadet 723-3066-24

Insulation, Fuel Line

$15.99

$

In Stock, only 4 left!

0

Cub Cadet KH-12-757-27

Kit, Carb Overhaul w/Gskts (NIKI)

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-12-757-29

Kit, Carb Choke Shaft Repair

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-12-454-01

Wire Tie
(Superseded to KH-12-454-03-S)

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-452-20

Terminal

$

$

Not available
