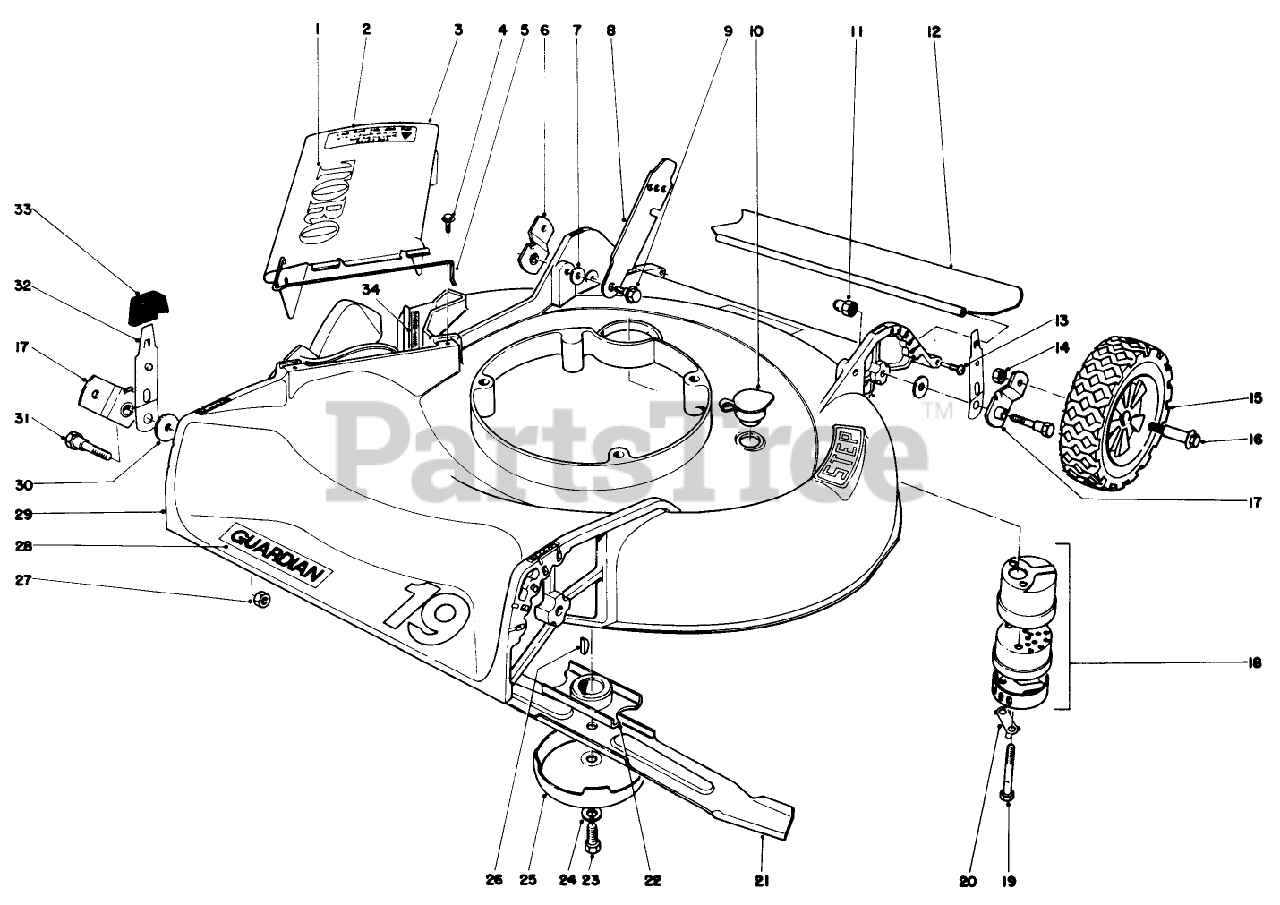

21557 - Toro Guardian Walk-Behind Mower (SN: 007000001 - 007999999) (1977) Housing Assembly Parts Diagram

Guardian Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title

1

Toro 20-4690

TORO LOGO DECAL

$7.99

$

Usually ships in 3-6 days

0

2

Toro 20-4330

DISCONTINUED

$

$

Not available

3

Toro 20-2800

See Supercession: 13-4049
(Superseded to 13-4049)

$

$

Not available

4

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

5

Toro 20-2640

DISCONTINUED

$

$

Not available

6

Toro 20-2130

See Supercession: 98-1527
(Superseded to 98-1527)

$

$

Not available

7

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 11

0

8

Toro 5-2446

See Supercession: 43-1550
(Superseded to 43-1550)

$

$

Not available

9

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

10

Toro 6-4500

WASHOUT PLUG

$

$

Not available

11

Toro 12-2080

HANDLE PIVOT NUT

$27.99

$

Usually ships in 3-6 days

0

12

Toro 22-4960

SHIELD - TRAILING

$106.99

$

Usually ships in 3-6 days

0

Toro 22-4950

DISCONTINUED

Note: Not illustrated

$

$

Not available

13

Toro 8-6160

DISCONTINUED

$

$

Not available

14

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

15

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

Toro 7-6210

Wheel Tire Assembly (Model 19477)

Note: Not illustrated

$

$

Currently unavailable

Toro 27-6200

WHEEL TIRE ASM 8 IN

Note: Not illustrated

$

$

Not available

16

Toro 27-6230

BOLT-WHEEL

$8.99

$

In Stock, only 2 left!

0

17

Toro 20-2140

See Supercession: 98-1511
(Superseded to 98-1511)

$

$

Not available

18

Toro 5-4769

MUFFLER ASM

$67.99

$

Usually ships in 3-6 days

0

19

Toro 321-20

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

20

Toro 3-5094

CLIP - LOCKING

$12.99

$

Usually ships in 3-6 days

0

21

Toro 20-2730

See Supercession: 20-2730-03
(Superseded to 20-2730-03)

$

$

Not available

Toro 20-2720

See Supercession: 20-2720-03
(Superseded to 20-2720-03)

Note: Not illustrated

$43.99

$

In Stock, only 4 left!

0

22

Toro 20-2750

See Supercession: 49-7890
(Superseded to 49-7890)

$

$

Not available

23

Toro 3-5246

DISCONTINUED

$

$

Not available

24

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

25

Toro 8-4240

See Supercession: 80-2770
(Superseded to 80-2770)

$18.99

$

In Stock, only 3 left!

0

26

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

27

Toro 32146-5

See Supercession: 32153-3
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

28

Toro 22-4770

Decal

$

$

Currently unavailable

29

Toro 6-8659

Housing 19" (Model #19477)

$

$

Currently unavailable

Toro 6-8669

Housing 21" (Model #21557)

Note: Not illustrated

$

$

Currently unavailable

30

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 8

0

31

Toro 3-0655

5/16-18 PIVOT SCREW

$16.99

$

In Stock, only 1 left!

0

32

Toro 25-8000

SPRING ARM ASM

$

$

Not available

33

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

34

Toro 22-7350

DISCONTINUED

$

$

Not available

Toro 6-7489

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable

Toro 25-9150

REPLACEMENT SERIAL PLT

Note: Not illustrated

$20.99

$

Usually ships in 3-6 days

0
