21560070 (99922201203) - Echo ECHOmatic Head ECHOmatic Head -- 21560070 Parts Diagram

ECHOmatic Head

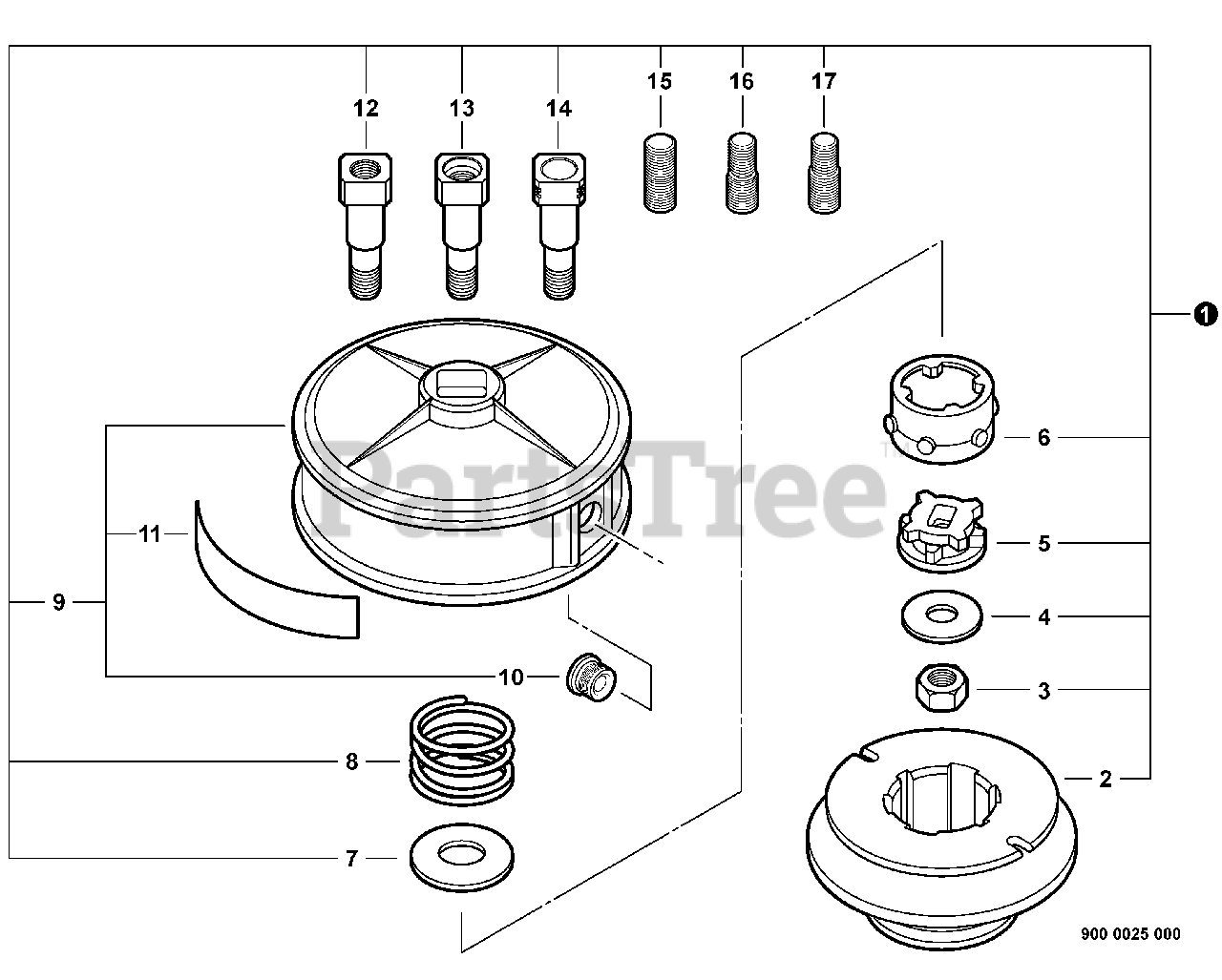

ECHOmatic Head -- 21560070 Parts Diagram

  • Title

1

Echo 21560070

TRIMMER HEAD, SRM ECHOMATIC®

Note: Includes ITEMS 2-17

$58.99

$

In Stock, Qty 20+

0

2

Echo X472000050

SPOOL

$17.99

$

In Stock, only 2 left!

0

3

Echo V265000470

NUT, LOCK 8

$1.49

$

Usually ships in 2-4 days

0

4

Echo V306000130

WASHER 8

$1.49

$

Usually ships in 2-4 days

0

5

Echo X471000100

CAM, INNER

$11.99

$

Usually ships in 2-4 days

0

6

Echo X471000110

CAM, OUTER
(Superseded to P022006760)

$14.99

$

In Stock, only 4 left!

0

7

Echo V310000060

WASHER 14

$1.49

$

Usually ships in 2-4 days

0

8

Echo V450001700

SPRING, COMPRESSION

$1.99

$

Usually ships in 2-4 days

0

9

Echo X470000251

HOUSING ASSY, SPOOL
(Superseded to X470000252)

$30.99

$

Usually ships in 2-4 days

0

10

Echo X475000110

EYELET

$2.49

$

In Stock, Qty 20+

0

11

Echo X505006450

LABEL, CAUTION

$1.49

$

Usually ships in 2-4 days

0

12

Echo X471000020

STUD, ARBOR M10×1.25 FLH / 5/16"-24 MRH

$14.99

$

Usually ships in 2-4 days

0

13

Echo X471000120

STUD, ARBOR M10×1.25 FLH / 5/16"-24 MRH, Ø12 MM CBORE

$14.99

$

Usually ships in 2-4 days

0

14

Echo X471000130

STUD, ARBOR M10×1.00 FLH / 5/16"-24 MRH, Ø15 MM CBORE

$14.99

$

Usually ships in 2-4 days

0

15

Echo V226000070

BOLT, STUD M10/M10×1.25 LH BLACK

$9.99

$

Usually ships in 2-4 days

0

16

Echo V225000240

BOLT, STUD M8/M10×1.25 LH SILVER
(Superseded to V225000320)

$7.49

$

In Stock, only 3 left!

0

17

Echo V216000070

BOLT, STUD M7×1.00 /M10×1.25 LH GOLD
(Superseded to V216000110)

$7.49

$

In Stock, Qty 12

0
