21563 - Toro 21" Super Recycler Walk-Behind Mower (SN: 412700000 - 999999999) Engine and Blade Assembly Parts Diagram

21" Super Recycler Walk-Behind Mower

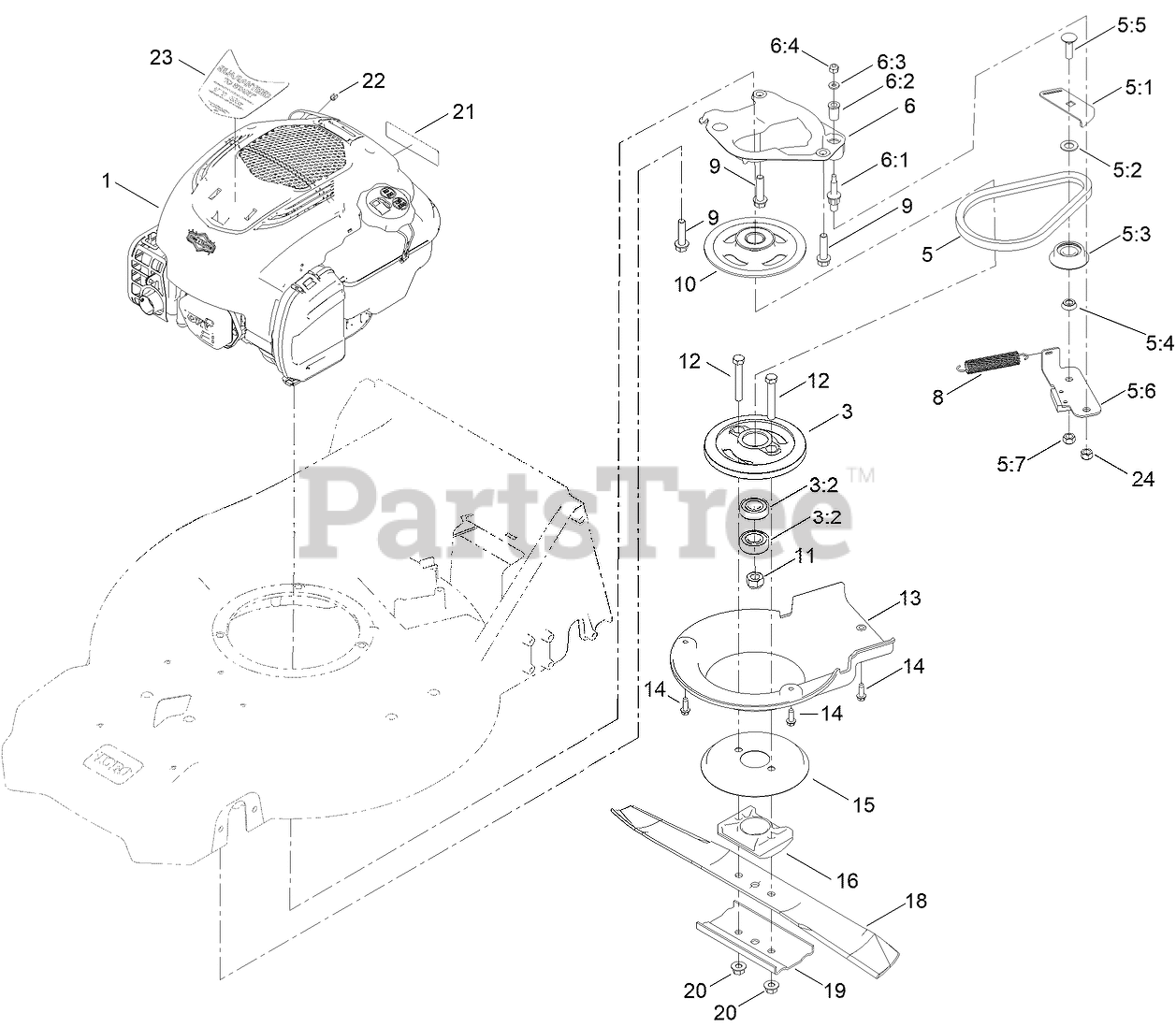

Engine and Blade Assembly Parts Diagram

  • Title

1

ENGINE-BRIGGS 725 EXI BBC

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS 725 EXI BBC

Note: This is a Briggs & Stratton part. Please use the Briggs & Stratton catalog.

$

$

Not available

3

Toro 145-4043

DRUM-BBC

$

$

Currently unavailable

3:2

Toro 38-7820

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

5

Toro 145-4045

BRAKE-BBC

$62.99

$

Usually ships in 0 days

0

5:1

Toro 110-1790

BELT
(Superseded to 110-1790-SL)

$33.99

$

Usually ships in 3-6 days

0

5:2

Toro 138-3222

PLATE-GUIDE

$4.49

$

In Stock, Qty 20+

0

5:3

Toro 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

5:4

Toro 145-4044

RETAINER-BBC

$

$

Currently unavailable

5:5

Toro 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 20+

0

5:6

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

5:7

Toro 125-1063

PLATE-BRAKE

$25.99

$

In Stock, Qty 20+

0

6

Toro 145-4046

PLATE-ANCHOR,BBC

$42.99

$

Usually ships in 3-6 days

0

6:1

Toro 133-8189

PLATE-ANCHOR

$26.99

$

Usually ships in 3-6 days

0

6:2

Toro 107-0759

BOLT-SHOULDER

$11.99

$

In Stock, Qty 17

0

6:3

Toro 107-0797

BUSHING

$6.99

$

In Stock, Qty 20+

0

6:4

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 108-3792

SPRING-TENSION, BRAKE

$12.99

$

In Stock, Qty 20+

0

9

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, Qty 5

0

10

Toro 117-5970

PULLEY

$38.99

$

In Stock, Qty 13

0

11

Toro 108-9342

NUT-HEX

$5.49

$

In Stock, Qty 10

0

12

Toro 3211-42

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

13

Toro 125-1006

COVER

$19.99

$

In Stock, only 2 left!

0

14

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

15

Toro 138-3225

DISK

$13.99

$

In Stock, only 4 left!

0

16

Toro 107-7487

SUPPORT-BLADE

$23.99

$

In Stock, only 2 left!

0

18

Toro 133-8183-03

BLADE-21IN, RECYCLING

$23.99

$

In Stock, Qty 20+

0

19

Toro 108-3766-03

SUPPORT-BLADE

$11.99

$

In Stock, Qty 20+

0

20

Toro 127-6852

NUT-FLANGE, LOCK

$2.99

$

In Stock, Qty 20+

0

21

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

22

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

23

Toro 145-5605

DECAL-BRIGGS, 163CC BBC

$8.49

$

Usually ships in 3-6 days

0

24

Toro 603773

LOCKNUT

$2.99

$

In Stock, Qty 20+

0
