21566 T - Toro 21" 60V Super Recycler Walk-Behind Mower (SN: 400000000 - 999999999) Rear Wheel and Height-of-Cut Assembly Parts Diagram

21" 60V Super Recycler Walk-Behind Mower

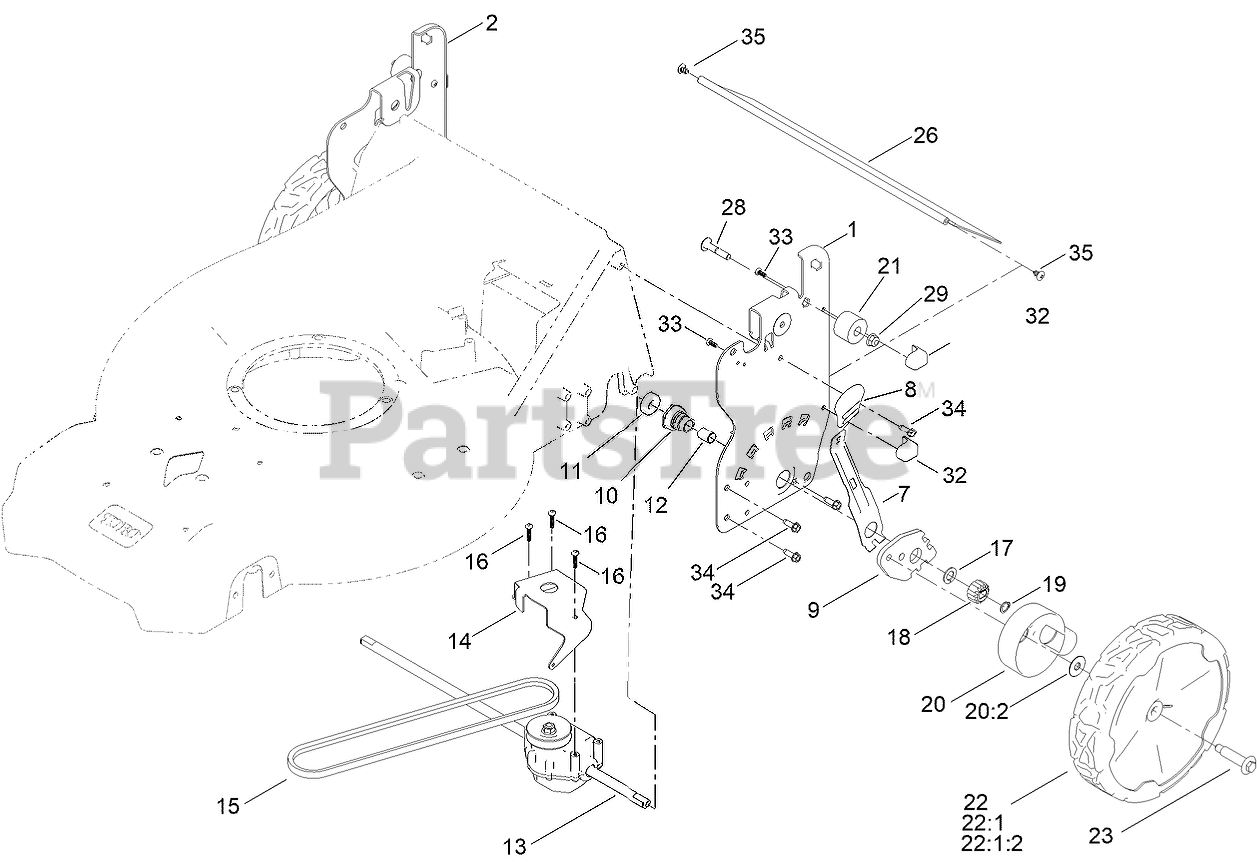

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 144-6476-05

PLATE-HOC, LH

$27.99

$

Usually ships in 3-6 days

0

2

Toro 144-6515-05

PLATE-HOC, RH (ISO)

$27.99

$

Usually ships in 3-6 days

0

7

Toro 132-4486

ARM-SPRING

$14.99

$

Usually ships in 3-6 days

0

8

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

9

Toro 139-5451

ARM-PIVOT, REAR

$12.99

$

In Stock, only 2 left!

0

10

Toro 108-9779

RETAINER-BUSHING, HOC

$13.99

$

In Stock, Qty 20+

0

11

Toro 52-2450

BEARING-WHEEL

$17.99

$

In Stock, Qty 20+

0

12

Toro 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 20+

0

13

Toro 144-0248

TRANSMISSION-RWD, 5.25:1

$113.99

$

Usually ships in 3-6 days

0

14

Toro 132-4481-03

BRACKET-TRANS, RWD HI

$

$

Not available

15

Toro 115-4669

BELT-V
(Superseded to 115-4669-SL)

$25.99

$

Usually ships in 3-6 days

0

16

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

17

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

18

Toro 131-5399

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

0

19

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

20

Toro 144-0240

ASM-COVER, GEAR

$6.49

$

Usually ships in 3-6 days

0

20:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

21

Toro 144-0218

BUMPER-ISOLATOR

$5.49

$

Usually ships in 3-6 days

0

22

Toro 144-6474

ASM-9.65" WHEEL, GEARED

$47.99

$

In Stock, Qty 6

0

22:1

ASM-WHEEL, 9.65" (BEARINGS)

Note: Not illustrated

$

$

Not available

22:1

ASM-WHEEL, 9.65" (BEARINGS)

Note: Not serviced separately

$

$

Not available

22:1:2

Toro 52-2450

BEARING-WHEEL

$17.99

$

In Stock, Qty 20+

0

23

Toro 139-1789

WHEEL BOLT
(Superseded to 145-3899)

$1.99

$

In Stock, Qty 20+

0

26

Toro 139-6597

SHIELD-TRAILING
(Superseded to 145-5821)

$19.99

$

Usually ships in 3-6 days

0

28

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Toro 140-2369

PAD-SMART STOW

$0.99

$

Usually ships in 3-6 days

0

33

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, only 3 left!

0

34

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

35

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0
