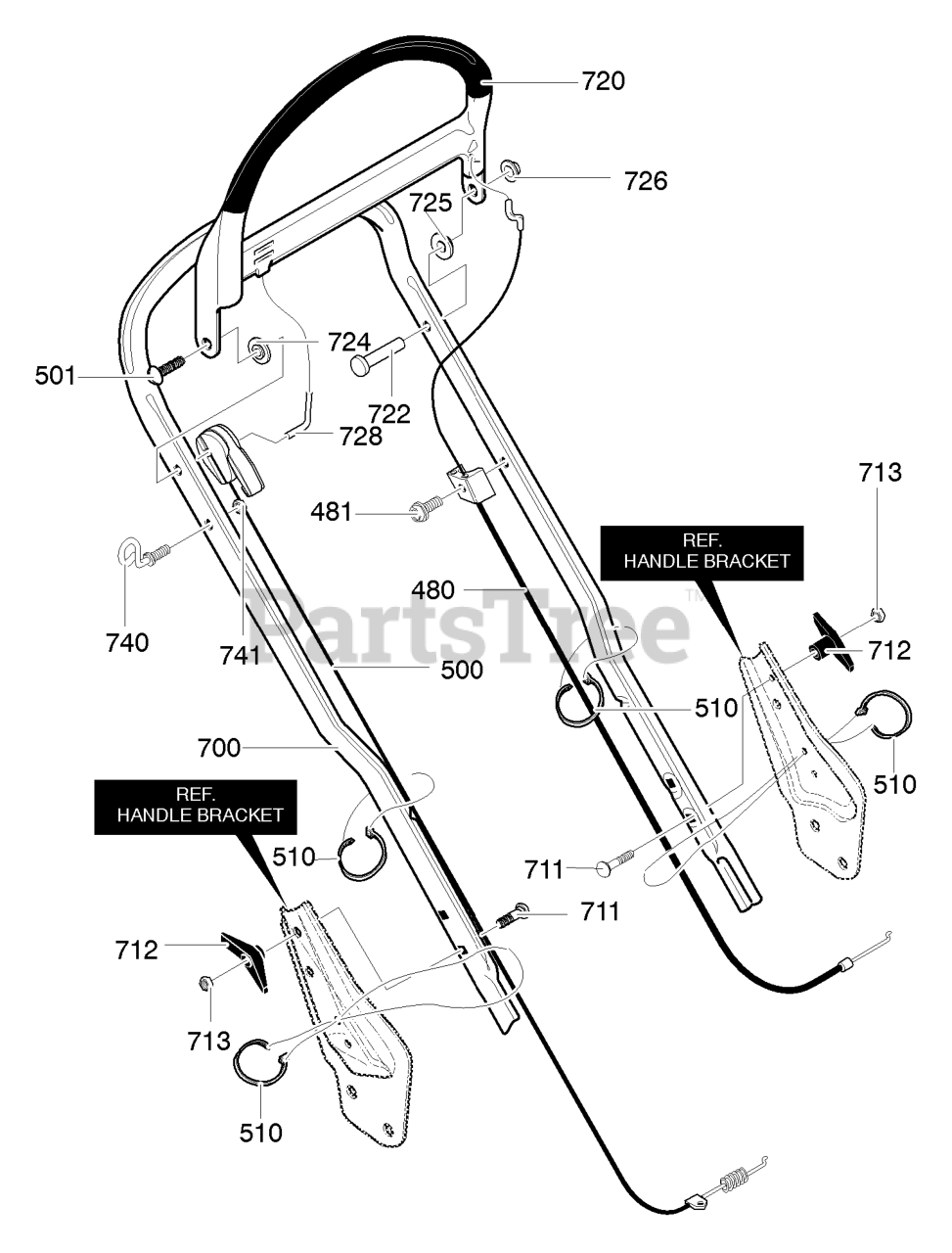

21595x31B - Scotts 21" Walk-Behind Mower (2000) Handle Assembly Parts Diagram

21" Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

480

Murray 672386

CABLE,STOP

$

$

Currently unavailable

481

Murray 710269

SCREW, 10-16X.75 S

$

$

Not available

500

Murray 672748MA

CABLE, DRIVE

$76.99

$

In Stock, only 1 left!

0

501

Murray 711833MA

SCREW,#10-16X1.38

$3.99

$

Usually ships in 2-12 days

0

510

Murray 712267

TIE, CABLE BLACK NYLON 5.62L

$3.99

$

Usually ships in 2-12 days

0

700

Murray 672285-806

HANDLE

$

$

Currently unavailable

711

Murray 710175

BOLT, 5/16-18X2.00

$5.99

$

Usually ships in 2-12 days

0

712

Murray 57171

KNOB, T W/516/18 NUT
(Superseded to 1501260MA)

$7.99

$

In Stock, only 3 left!

0

713

Murray 120376

NUT, 5/16-18 REGHEX

$

$

Not available

720

Murray 672797

LEVER, STOP FLAT

$23.99

$

Usually ships in 2-12 days

0

722

Murray 712105MA

PIN, CLEVIS

$

$

Not available

724

Murray 672734MA

SPACER

$4.49

$

In Stock, only 1 left!

0

725

Murray 672734MA

SPACER

$4.49

$

In Stock, only 1 left!

0

726

Murray 710286

RETAINER CAP

$29.99

$

Usually ships in 2-12 days

0

728

Murray 672291MA

ROD, LINK
(Superseded to 672291ZMA)

$61.99

$

Usually ships in 2-12 days

0

740

Murray 672510MA

GUIDE, ROPE 1/4-20

$5.99

$

Usually ships in 2-12 days

0

741

Murray 710203

NUT, 1/4-20

$19.99

$

Usually ships in 2-12 days

0
