21595x8A - Murray 21" Walk-Behind Mower (1998) Mower Housing Assembly Parts Diagram

21" Walk-Behind Mower

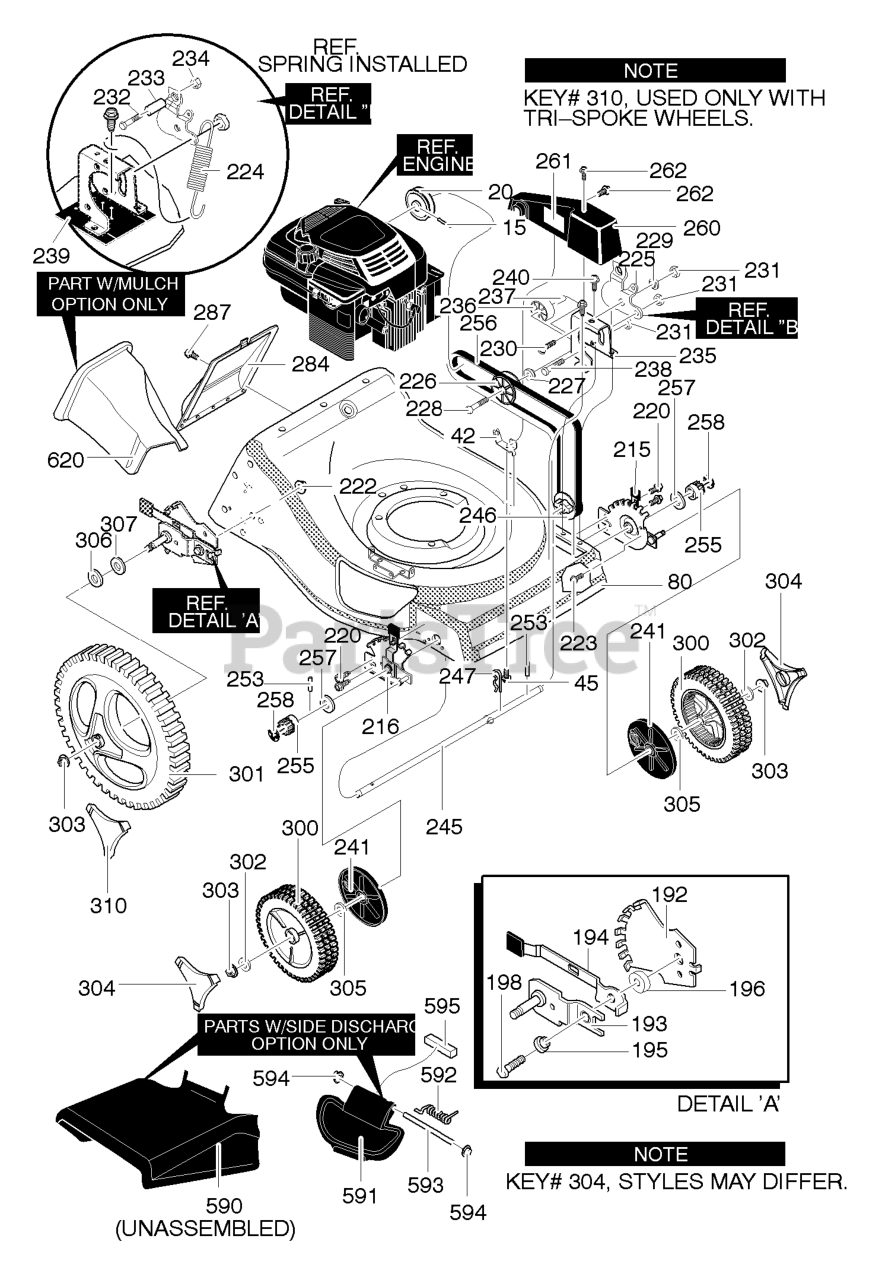

Mower Housing Assembly Parts Diagram

  • Title

15

Murray 710293

PIN, SPRING

$

$

Not available

20

Murray 71434

ENGINE PULLEY

$16.99

$

Usually ships in 2-12 days

0

42

Murray 71744

BKT, DRIVE CABLE

$

$

Not available

45

Murray 710274

SCREW, #8-32X.38

$61.99

$

Usually ships in 2-12 days

0

80

Murray 672325-898

ASSY, FRAME

$192.99

$

Usually ships in 2-12 days

0

192

Murray 643877

INDEX PLATE

$

$

Not available

193

Murray 672519

AXLE & BRACKET

$

$

Currently unavailable

194

Murray 672280MA

LEVER, SPRING

$

$

Not available

195

Murray 711588MA

WASHER

$3.49

$

Usually ships in 2-12 days

0

196

Murray 996416

WASHER

$

$

Currently unavailable

198

Murray 54855

BOLT, .500X .345

$1.49

$

Usually ships in 2-12 days

0

215

Murray 672517MA

ASSY, LF HGT ADJ

$80.99

$

Usually ships in 2-12 days

0

216

Murray 672516MA

ASSY, RH HGT ADJ

$

$

Not available

220

Murray 710274

SCREW, 1/4-20X.63

$61.99

$

Usually ships in 2-12 days

0

222

Murray 710140

NUT, 3/8-16

$10.99

$

Usually ships in 2-12 days

0

223

Murray 710266

SCREW, 10-24X.38

$22.99

$

In Stock, only 3 left!

0

224

Murray 710336

EXTENSION SPRING

$

$

Currently unavailable

225

Murray 71742

IDLER ARM

$1.49

$

Usually ships in 2-12 days

0

226

Murray 71779

IDLER PULLEY

$

$

Not available

227

Murray 71788

SPACER, IDLER

$3.99

$

Usually ships in 2-12 days

0

228

Murray 710018

BOLT, SH 5/16-18
(Superseded to 716520)

$34.99

$

Usually ships in 2-12 days

0

229

Murray 71789

SPACER, IDLER ARM

$3.99

$

Usually ships in 2-12 days

0

230

Murray 57072

BOLT, CARR

$

$

Not available

231

Murray 1498

NUT, 5/16-18

$

$

Not available

232

Murray 712351

BOLT, SHOULDER

$

$

Currently unavailable

233

Murray 672781MA

PULLEY, ROLLER

$14.99

$

Usually ships in 2-12 days

0

234

Murray 309936

NUT, 5/16-18

$0.99

$

Usually ships in 2-12 days

0

235

Murray 71745

BKT, IDLER SUPPT

$

$

Currently unavailable

236

Murray 71778

PULLEY, IDLER

$6.49

$

Usually ships in 2-12 days

0

237

Murray 71793

BEARING, SLEEVE

$4.99

$

In Stock, Qty 6

0

238

Murray 180084

SCREW, 5/16-18

$1.49

$

Usually ships in 2-12 days

0

240

Murray 710133

SCREW, 1/4-20X.50

$14.99

$

Usually ships in 2-12 days

0

241

Murray 71780

DUST COVER

$5.99

$

In Stock, only 2 left!

0

245

Murray 71790MA

SHAFT, F/DR AXLE

$43.99

$

Usually ships in 2-12 days

0

246

Murray 71791

PULLEY, F/DR AXLE

$

$

Not available

247

Murray 710292

HAIR PIN

$

$

Currently unavailable

253

Murray 643629

PIN, DRIVE

$

$

Not available

255

Murray 71792

PINION GEAR

$18.99

$

In Stock, only 1 left!

0

256

Murray 712461

BELT, V3L

$

$

Not available

257

Murray 710254

FLATWASHER
(Superseded to 710364)

$152.99

$

Usually ships in 2-12 days

0

258

Murray 20864

RING, RET E.
(Superseded to 5020864)

$3.99

$

Usually ships in 2-12 days

0

260

Murray 672118

BELT COVER

$

$

Not available

261

Murray 71880

HEAT SHIELD
(Superseded to 1733057SM)

$7.99

$

Usually ships in 2-12 days

0

262

Murray 310798

SCREW, 10-24X.38

$3.49

$

Usually ships in 2-12 days

0

284

Murray 71246

REAR COVER

$

$

Not available

287

Murray 711863

SCREW

$1.99

$

Usually ships in 2-12 days

0

300

Murray 672436

WHEEL, DRIVE

$

$

Currently unavailable

301

Murray 672438MA

TIRE & RIM
(Superseded to 672801MA)

$101.99

$

Usually ships in 2-12 days

0

302

Murray 710252

WASHER, FLAT
(Superseded to 711573)

$52.99

$

Usually ships in 2-12 days

0

303

Murray 710140

NUT

$10.99

$

Usually ships in 2-12 days

0

304

Murray 672446

HUB CAP

$

$

Not available

305

Murray 710206

FLAT WASHER

$9.99

$

Usually ships in 2-12 days

0

310

Murray 672805MA

HUB CAP
(Superseded to 672446MA)

$5.99

$

Usually ships in 2-12 days

0

590

Murray 672046MA

DEFLECTOR, CHUTE

$34.99

$

Usually ships in 2-12 days

0

591

Murray 672045MA

COVER, MULCH

$17.99

$

Usually ships in 2-12 days

0

592

Murray 340826

SPRING, TORSION

$1.49

$

Usually ships in 2-12 days

0

593

Murray 340827

ROD, PIVOT

$

$

Not available

594

Murray 710285

CAP, PUSH ON
(Superseded to 231739)

$17.99

$

In Stock, only 2 left!

0

595

Murray 712012

SEAL, FOAM

$

$

Not available

620

Murray 71250

PLUG, MULCHER

$97.99

$

In Stock, only 1 left!

0
