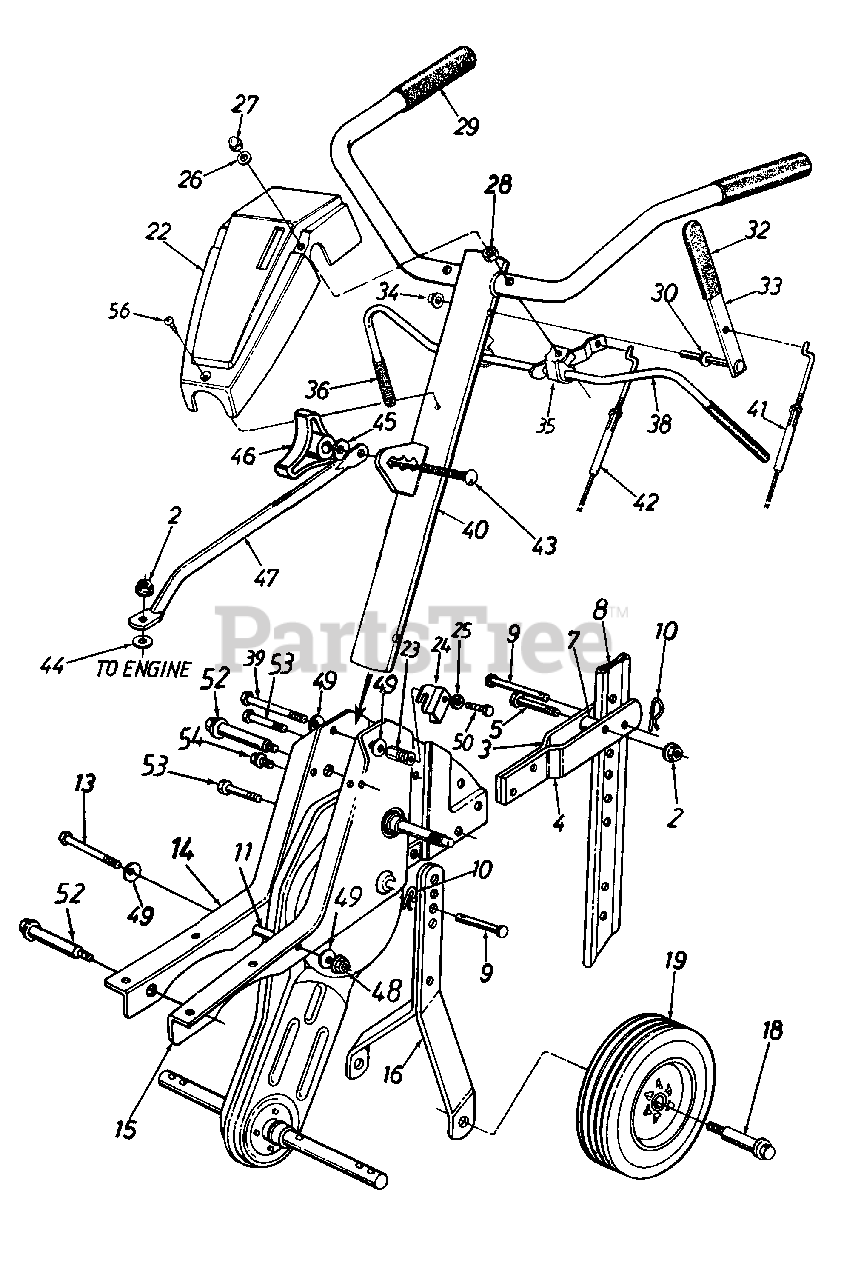

216-390-000 - Yard Machines Tiller (1996) Handle & Wheel Assembly Parts Diagram

Tiller

Handle & Wheel Assembly Parts Diagram

  • Title
?1

MTD 710-0874

Hex Bolt 5/16-18 x 1.25" Lg.

$6.99

$

Usually ships in 3-6 days

0

2

MTD 712-3004A

Hex Flange L-Nut 5/16-18 Thd. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

3

MTD 786-0004

Tail Piece Brkt. (R.H.)
(Superseded to 786-0004-0637)

Variations

MTD 786-0004-0637

Tailpiece Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

4

MTD 786-0003

Tail Piece Brkt. (L.H.)
(Superseded to 786-0003-0637)

Variations

MTD 786-0003-0637

Tailpiece Bracket - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

5

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 8

0

7

MTD 750-0890

Spacer .32" I.D. x .75" O.D.

$6.99

$

In Stock, Qty 7

0

8

MTD 786-0005

Depth Bar
(Superseded to 786-0005-0637)

Variations

MTD 786-0005-0637

Depth Bar, Powder Black - POWDER BLACK (0637)

$39.99

$

In Stock, only 1 left!

0

$39.99

$

In Stock, only 1 left!

0

9

MTD 711-0415

Clevis Pin .375" I.D. x 1.62" Lg.

$4.99

$

In Stock, Qty 20+

0

10

MTD 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

11

MTD 750-0470

Spacer .326" I.D. x .47" O.D.

$6.99

$

Usually ships in 3-6 days

0

?12

MTD 750-0885

Spacer.322" I.D. x .44" I D.
(Superseded to 750-0885A)

$11.99

$

Usually ships in 3-6 days

0

13

MTD 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

Usually ships in 3-6 days

0

14

MTD 786-0138

Frame-R.H.

Note: New Part

Variations

MTD 786-0138-0498

FRAME-RH - OLD CUB YELLOW (0498)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138-0637

FRAME-RH - POWDER BLACK (0637)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138-0687

FRAME-RH - PINE GREEN (0687)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138-0716

FRAME (RH) - CUB YELLOW-99 (0716)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138-0638

FRAME-RH - MTD/TROY-BILT RED (0638)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138-0480

No Longer Available FRAME-RH - BRILLIANT GREEN (0480)

$

$

Not available

MTD 786-0138-0662

FRAME-RH - OYSTER GRAY (0662)

$

$

Not available

MTD 786-0138-0665

FRAME-RH - YARDMAN GREEN (0665)

$

$

Not available

$78.99

$

Usually ships in 3-6 days

0

15

MTD 786-0139

Frame-L.H.
(Superseded to 786-0139A)

Note: New Part

Variations

MTD 786-0139-0480

Frame, LH - BRILLIANT GREEN (0480)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139-0498

Frame, LH - OLD CUB YELLOW (0498)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139-0637

Frame, LH - POWDER BLACK (0637)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139-0662

Frame, LH - OYSTER GRAY (0662)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139-0665

Frame, LH - YARDMAN GREEN (0665)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139-0687

Frame, LH - PINE GREEN (0687)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139-0716

Frame, LH - CUB YELLOW-99 (0716)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139-0638

FRAME-LH - MTD/TROY-BILT RED (0638)

$101.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

16

MTD 686-0081

Wheel Hanger Brkt. Ass'y.
(Superseded to 686-0081A-0637)

Note: New Part

Variations

MTD 686-0081-0637

Wheel Bracket Assembly, Black - POWDER BLACK (0637)

$88.99

$

In Stock, only 4 left!

0

$88.99

$

In Stock, only 4 left!

0

18

MTD 738-0929

Shld. Bolt 3/8-16 Thd.

Note: New Part

$7.99

$

In Stock, only 2 left!

0

19

MTD 734-1566

Wheel Ass'y. 8" x 1.75"
(Superseded to 734-1268)

$71.99

$

Usually ships in 3-6 days

0

22

MTD 731-1600

Handle Cover w/Reverse

$55.99

$

Usually ships in 3-6 days

0

23

MTD 711-1036

Spec. Hex Nut
(Superseded to 711-1036A)

$17.99

$

Usually ships in 3-6 days

0

24

MTD 786-0129

Cable Guide Brkt.
(Superseded to 786-0129-0637)

Variations

MTD 786-0129-0637

BRACKET-CABLE GUIDE - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

25

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

MTD 736-3020

Fl-Wash. .266" I.D. x .625" O.D.

$6.99

$

In Stock, Qty 9

0

27

MTD 712-0442

Hex L-Stop Nut 1/4-20 Thd.

$6.99

$

In Stock, Qty 5

0

28

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

29

MTD 720-0268

Grip -- Handle

$

$

Not available

30

MTD 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

?31

MTD 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 8

0

32

MTD 720-0270

Grip-Reverse Lever

$

$

Not available

33

MTD 686-0014

Reverse Handle Ass'y.

$

$

Not available

34

MTD 726-0135

Cap Speed Nut

$6.99

$

In Stock, Qty 6

0

35

MTD 731-1645

Clutch Handle Holder
(Superseded to 931-1645B)

$16.99

$

Usually ships in 3-6 days

0

36

MTD 720-0269

Grip-Clutch

$4.99

$

In Stock, only 3 left!

0

38

MTD 686-0083

Clutch Handle Ass'y.
(Superseded to 686-0083-0637)

Note: New Part

Variations

MTD 686-0083-0637

Clutch Handle Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

39

MTD 710-0189

Hex Bolt 5/16-18 x 3" Lg.

$6.49

$

In Stock, Qty 5

0

40

MTD 649-0022

Longhorn Handle Ass'y.
(Superseded to 649-0022A)

Note: New Part

Variations

MTD 649-0022-0480

HANDLE ASSY-LONGHORN - BRILLIANT GREEN (0480)

$

$

Not available

MTD 649-0022-0483

No Longer Available HANDLE ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 649-0022-0498

HANDLE ASSY-LONGHORN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 649-0022-0637

No Longer Available HANDLE ASM - POWDER BLACK (0637)

$

$

Not available

MTD 649-0022-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 649-0022-0662

HANDLE ASSY-LONGHORN - OYSTER GRAY (0662)

$

$

Not available

$

$

41

MTD 746-0919

Clutch Control Cable-Reverse

$

$

Not available

42

MTD 746-0918

Clutch Control Cable-Forward
(Superseded to 946-0918)

$30.99

$

Usually ships in 3-6 days

0

43

MTD 710-1236

Carr. Bolt 5/16-18 x 1" Lg.

Note: (Special)

$6.99

$

In Stock, only 4 left!

0

44

UNKNOWN

$

$

Not available

45

UNKNOWN

$

$

Not available

46

MTD 720-0195

Hand Knob

$15.99

$

Usually ships in 3-6 days

0

47

MTD 749-0915

Engine Tubing Brace

Variations

MTD 749-0915-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 749-0915-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0915-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

48

MTD 712-0429

Hex Nyloc Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

49

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

50

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

?51

MTD 710-0641

Hex Bolt 1/4-20 x 2.25" Lg.

$4.49

$

In Stock, only 4 left!

0

52

MTD 738-0934

Shld. Bolt
(Superseded to 738-0934A)

$7.99

$

Usually ships in 3-6 days

0

53

MTD 710-0604

Hex Wash. Hd. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

54

MTD 710-0602

Hex Wash Hd. TT-Tap Scr. 5/16-18 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

56

MTD 710-0779A

Truss Mach. Scr. #10 x 1/2" Lg.

$4.49

$

In Stock, Qty 12

0
