216 IP (52B-370-195) - MTD Pro Walk-Behind Mower B&S Engine Controls & Elect Parts Diagram

Pro Walk-Behind Mower

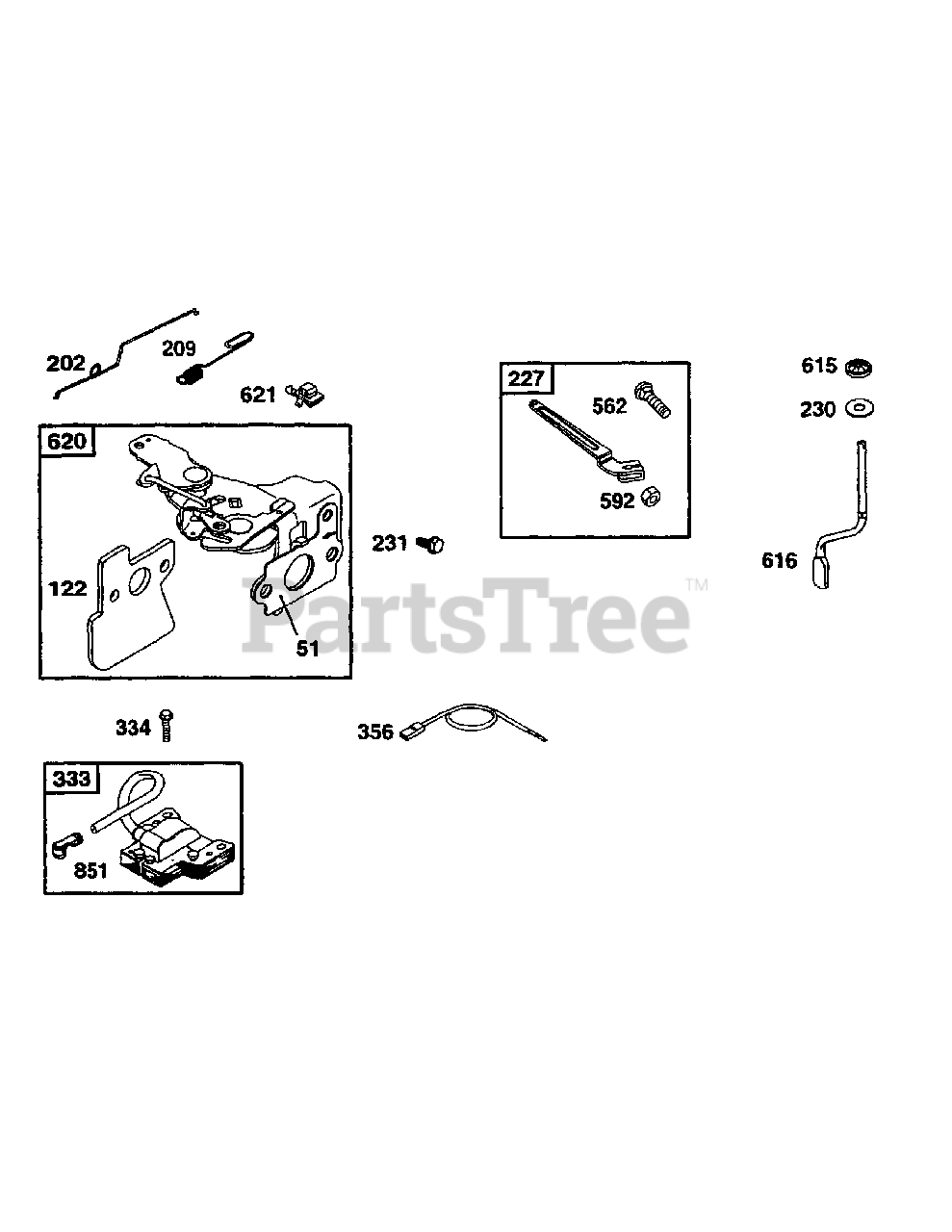

B&S Engine Controls & Elect Parts Diagram

  • Title

51

MTD BS-692668

Intake Gasket

$4.49

$

In Stock, only 3 left!

0

122

MTD BS-692799

Carburetor Spacer

$14.99

$

In Stock, only 2 left!

0

202

MTD BS-691303

Mechanical Gov. Link

$8.49

$

Usually ships in 2-12 days

0

209

MTD BS-690319

Gov. Spring

$8.49

$

In Stock, only 4 left!

0

227

MTD BS-691467

Gov. Lever

$12.99

$

Usually ships in 2-12 days

0

230

MTD BS-690272

Flat Washer

$3.99

$

Usually ships in 2-12 days

0

231

MTD BS-693168

Screw Hex

Note: NLA

$3.99

$

Usually ships in 3-6 days

0

333

MTD BS-796964

Magneto

$55.99

$

In Stock, only 2 left!

0

334

MTD BS-94731

Screw Hex

Note: NLA

$

$

Not available

356

MTD BS-499690

Stop Wire

Note: NLA

$7.99

$

Usually ships in 2-12 days

0

562

MTD BS-94907

Gov. Lever Bolt

Note: NLA

$

$

Not available

592

MTD BS-231082

Hex Nut

Note: NLA

$

$

Not available

615

MTD BS-690340

Gov. Retainer

$4.49

$

In Stock, only 1 left!

0

616

MTD BS-263175

Gov. Crank

Note: NLA

$

$

Not available

620

MTD BS-692618

Control Bracket

Note: NLA

$45.99

$

In Stock, only 1 left!

0

621

MTD BS-692310

Stop Switch

$5.99

$

In Stock, Qty 20+

0

851

MTD BS-493880S

Cable Terminal

$3.49

$

In Stock, Qty 20+

0
